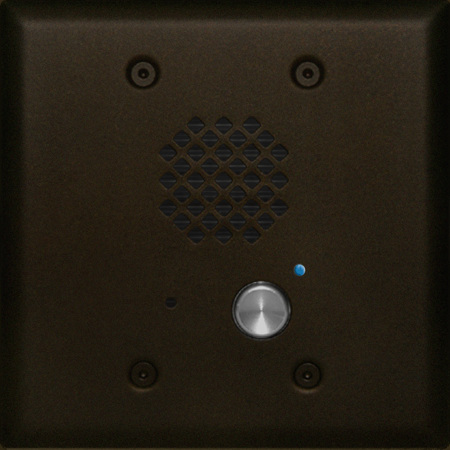

Viking E-60 Double Gang Entry Phone with Auto Disconnect, Oil Rubbed Bronze
SKU: VIKE60BN
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Q&A
About Viking E-60-BN
The Viking E-60 Entry Phone with Auto Disconnect (Oil Rubbed Bronze) is compact, vandal resistant, telephone line powered speaker phone designed to provide two way handsfree communication. It compact size allows it to be mounted in a standard double gang electrical box. The E-60's blue LED continually provides light for locating the push button in dark locations, dims to indicate off hook and flashes during incoming ring. This entry phone can share a single phone line with house or small business telephones when used with a Viking model C-200, C-250 or C-2000B Entry Phone controller.
The E-60 entry phone can also be connected to an unused analog station port (programmed for ring down) on a phone system or connected directly to a telephone line when used with a Viking model K-1900-5 or K-1900-30 auto dialer. It features microphone and speaker volume controls, selectable auto answer for monitoring and intelligent call progress detection for automatic hang-up when the call is completed.
Viking E-60-BN Features
- Compact size: Front panel is the size of a typical double gang midsize wall plate
- Mounting: Flush mounts in a double gang electrical box (2.25" deep x 3.65" wide x 2.84" tall minimum) or surface mounts in a Viking model VE-5x5 (not included) for mounting to a wall, post or VE-GNP Gooseneck Pedestal (EWP recommended)
- Vandal Resistant: 16 gauge polished brass or 18 gauge 304 stainless steel faceplate, 316 stainless steel push button, stainless steel speaker screen, scratch resistant powder coating, hex drive mounting screws
- Weather Resistant: Mylar speaker, faceplate gasket, mic and speaker gasket, internally sealed (IP67) push button switch, self draining mic mount and UV stable weather resistant powder coating (excluding E-60-SS 304 Stainless Steel faceplate)
- Blue LED helps locate the push button, indicate ringing and off-hook
- Telephone line powered
- Programmable intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out
- Selectable auto answer feature for monitoring
- Applications: Door or gate communication, business delivery entrances
- Applications: Use with a Viking C-200 or C-250 to control one E-60 on a single phone line
- Applications: Use with a Viking C-2000B to control 1 to 4 E-60's and door/gate control on a single phone line
- Applications: Provide unique front and back door chimes and paging when used with a Viking SLP-1 or SLP-4 and C-2000B
- Applications: Residential, commercial and industrial door security
- Applications: Use with a Viking K-1900-5 or K-1900-30 for automatic speed dialing on telephone lines or analog PABX/KSU station ports
- Applications: Use on any analog PABX station port with programmable ringdown capability
