Viking K-1705-3-EWP Video Entry Phone with Keypad
SKU: VIKK17053EWP
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Viking K-1705-3-EWP

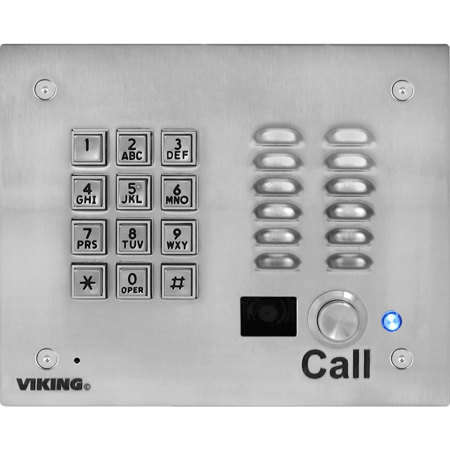

The Viking K-1705-3 provides a tough and attractive handsfree phone for apartment and residential door/gate entry or applications requiring a vandal resistant speaker phone with built-in color CCTV video camera.
When the "Call" button is pressed, the K-1705-3 returns dial tone. The keypad may then be used to dial any number. If no touch tone is entered within 8 seconds, CPC is detected, a busy signal is detected, or the programmable maximum call time has elapsed, the K-1705-3 will automatically disconnect. Alternatively, the K-1705-3 may be disconnected by pressing the "Call" button again. The K-1705-3 features a built-in high resolution color video camera, microphone and speaker volume controls, selectable auto answer for monitoring, a yellow "In-Use" LED and comes complete with a standard flush mount rough-in box. In addition, an optional VE-6x7 weather resistant surface mount box is available.
For extreme outdoor environments or corrosive atmospheres, the K-1705-3 is available with Enhanced Weather Protection (EWP). EWP products feature rubber gaskets and boots, closed cell foam gasketing, hand soldered silicon sealed connections, anti-corrosive gel filled butt connectors, as well as urethane encapsulated circuit boards with internally sealed, field-adjustable trim POTS and DIP switches.
Viking K-1705-3-EWP Features
- Built-in high resolution color video camera with wide viewing, tilt/swivel adjustments and wide operating temperature of -30deg.F to 150deg.F
- Audio and video transmission on one CAT5E cable
- Vandal Resistant Features: 14 gauge louvered stainless steel faceplate with stainless steel speaker/mic screen, heavy duty metal keypad and "Call" button, impact and scratch resistant camera lens and hex drive mounting screws
- Weather Resistant Features: Mylar speaker, faceplate gasket, mic and speaker gasket, internally sealed (IP67) push button switch and keypad, sealed camera lens, potted camera circuit board, stainless steel phone and camera mounting hardware
- Optional Enhanced Weather Protection (EWP) conforms to NEMA requirements
- Yellow "in use" LED
- Volume adjustments for microphone and speaker
- Advanced call progress detection: disconnects on busy signal, return to dial tone, CPC reorder tone, maximum call time out and selectable silence time out
- Selectable auto-answer feature for monitoring
- Selectable push button disconnect
- Zinc plated steel rough-in box with (2) 3/4" conduit knockouts
- Optional VE-6x7 surface mount box available
- Selectable maximum call time
- Selectable VOX switching speed
- Applications: Apartment entry phone when used with the K-1900-3 Apartment Entry Dialer or C-4000 Apartment/Office Entry Controller or C-3000 Apartment Entry Controller, Residential gate or door entry phone when used with the C-2000A Door Entry Controller, Courtesy and customer assistance phone
- Applications: Automated teller (ATM) phone, Security or emergency phone, Hot-Line phone when used with the K-1900-5 Hot-Line, Kiosk phone with (100 number speed dialing) when used with the K-1900-9 Multi-Number Dialer
