Viking LM-1A Universal Message Waiting Light

SKU: VIKLM1A

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : How does this work and will it work on a Verizon telephone system?ANDREW R : I believe that this unit only works on standard analog phone systems
Shopper : how does it connect to wireless phone?ANDREW R : This unit is not wireless.

Reviews about this item

Review Summary

2016-02-29T13:07:45

Rated 4 out of 5

Director of Human Resources

It suits the needs of the Mother House.

Marlene P.

Viking LM-1A Specifications

  • Input

    80V DC to 150V DC message waiting voltage, minimum 40V AC ring voltage

  • Viewing Distance

    Upto 22.8m (75')

  • Viewing Angle

    110deg. Typical

  • LED

    Yes

  • Environmental

    0deg. C to 32deg. C (32deg. F to 90deg. F) with 5% to 95% non-condensing humidity

  • Connections

    (2) RJ11 Plugs

  • Dimensions

    65 x 35 x 20mm (2.6 x 1.4 x 0.8")

  • UPC Code

    615687222142

About Viking LM-1A

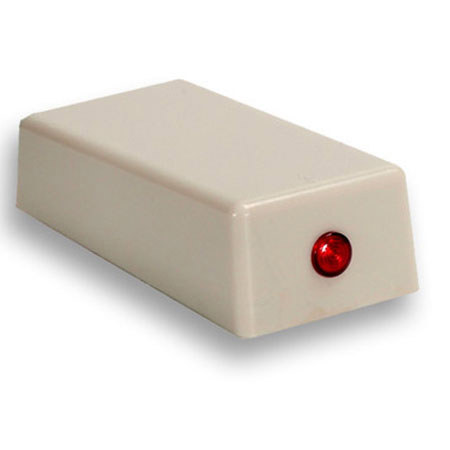

The Viking LM-1A universal message waiting lamp retrofit kit is compatible with any telephone system with standard DC message waiting voltages ranging from 90VDC to 120 VDC. The LM-1A is fully modular for quick plug-in installation by non-telephone personnel. The unit's LED will blink at a steady rate when the message waiting voltage is detected. The LM-1A will also flicker when the phone rings, helping to reduce noise in quiet areas by providing a convenient visual indication for ringing or message waiting.

Viking LM-1A Features

  • Attractive styling
  • Easy retrofit mounting
  • Works with nearly all message waiting voltages
  • Applications: Message waiting indication on analog lines supplying standard message waiting voltages, Ring indicator in offices
