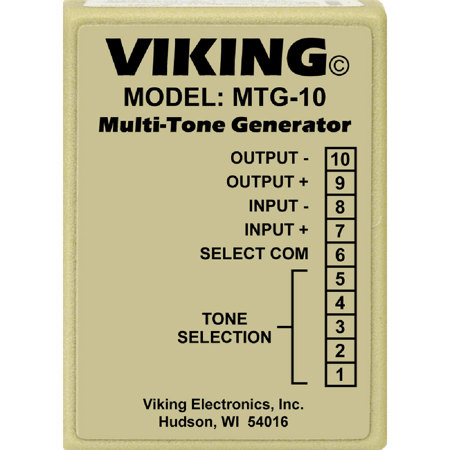

Viking MTG-10 Multi-Tone Generator

Viking MTG-10 Multi-Tone Generator

SKU: VIKMTG10
(1)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2017-01-03T08:36:49

Rated 5 out of 5

Viking MTG-10 Multi-Tone Generator

I was looking for a tone generator for a door bell (service button) in the warehouse. I purchased this and very easily installed it into our PA system. I also have plans to use this for an ammonia alarm with the Evacuation Sound for the warehouse down the road. It has 15 tone selections (vs the 10 that I thought I would be receiving), which will gives me additional options for multiple door bells/alarms within the warehouse.

Raymond S.

Viking MTG-10 Specifications

  • Evacuation Tone

    ANSI compliant

  • Connection

    10 position cage clamp terminal strip

  • Power

    120V AC/12V DC 500mA UL listed adapter provided

  • Input Impedance

    600 ohms

  • Output

    Capable of driving 600 to 100K ohms impedance

  • Maximum Output Level

    +5dbm into 600 ohms

  • Environmental

    0deg.C to 32deg.C (32deg.F to 90deg.F) with 5% to 95% non- condensing humidity

  • Dimensions

    74 x53 x 25mm / 2.91 x 2.09 x 0.98"

About Viking MTG-10

The Viking MTG-10 audio input can be connected to any paging source, such as a phone system paging port or background music. When a contact closure is provided to one of the inputs, the paging or background music is faded out and the appropriate tone is generated over the paging system. The siren or the evacuation whoop always have priority and over-ride any other tone being generated. The MTG-10 can also be configured to provide a tone every 15 seconds to notify callers that their conversation is being recorded.

Viking MTG-10 Features

  • Siren
  • Interrupted 784Hz Tone
  • Door Chime (Ding-Dong)
  • Warble (Electronic Ring)
  • Double Gong
  • Evacuation Whoop (ANSI/NFPA compliant, temporal slow whoop)
  • Telephone Recording Disclosure Tone (500ms beep, every 15 seconds)
  • Double Chime
  • Quadruple Chime
  • Double Buzz
  • Applications: Ten available tones, organized into two groups of five tones, Contact initiated, Built-in background audio source fade-in/out, Priority ANSI compliant evacuation and siren tones, Telephone recording disclosure tone repeats every 15 seconds
