Viking PROX-1 Proximity Card Reader for Apartment/Office Entry System

SKU: VIKPROX1

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Viking PROX-1 Specifications

  • Compatibility

    Viking PROXCARD, HID (ProxCard II, ISO Prox II and ProxTag II)

  • Connections

    18" long pigtail leads, 24 gauge

  • Power

    5-14V DC, 45mA - average, 80mA - peak

  • Environmental

    -40deg. C to 65deg. C (-40deg. F to 150deg. F) with 5% to 95% non-condensing humidity

  • Dimensions

    80 x 43 x 17mm / 3.15 x 1.69 x 0.67"

  • UPC Code

    615687224795

About Viking PROX-1

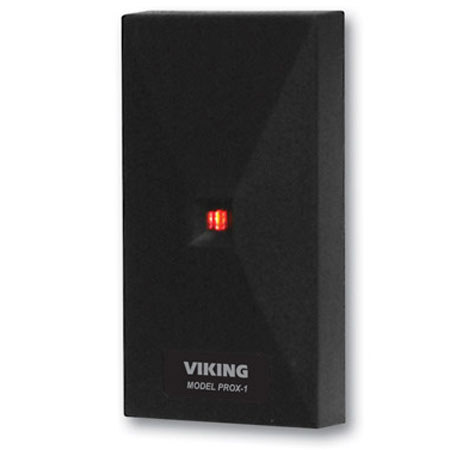

The Viking PROX-1 is a HID compatible 125KHz proximity card reader and is designed to be mounted directly to a metal door or window frame (mullions), making it ideal for applications requiring an access credential. The proximity card reader transmits data in 26-bit Wiegand format, making it compatible with any of the Wiegand equipped Viking entry controllers. The PROX-1 delivers non-contact read ranges up to 6 inches (152 mm) and operates from 5 to 14 VDC. Mounting is simplified with horizontal and vertical mounting slots, which allow the reader to be conveniently adjusted and leveled. To allow both indoor and outdoor operation the electronics are sealed in tamper resistant epoxy potting.

Viking PROX-1 Features

  • Read range of up to 6 inches
  • Standard 26-bit Wiegand interface
  • Potted for indoor or outdoor use
  • Pigtail connection for easy installation
  • Red LED indicates power and flashes off during card read
  • Transducer provides beep during card read
  • Applications: Compatible with- AES-2000 Accessible Entry System/AES-2005 Accessible Entry System with Video-C-4000 Apartment/Office Entry Controller-ES-1 Stand Alone Keyless Entry System

Key Features

  • Read range of up to 6 inches
  • Standard 26-bit Wiegand interface
  • Potted for indoor or outdoor use
