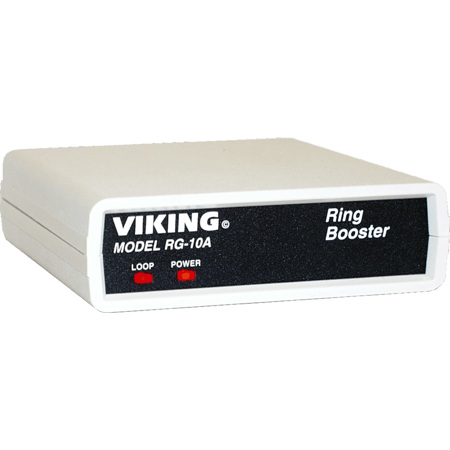

Viking RG-10A Boost Ringing Power Up to 12 Additional Phones

SKU: VIKRG10A

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Viking RG-10A Specifications

  • Incoming Ring Detection

    40-150 VAC

  • Ring Generator

    90 VAC nominal, 12 REN max load at 40VAC

  • Ringwave Shape

    Saw tooth ring wave

  • DC Talk Battery Boost (if enabled)

    20 Volts DC

  • Connections

    (1) RJ11 plug, (1) RJ11 jack

  • Power

    120V AC/ 13.8VAC 1.25 UL listed adapter provided

  • Environmental

    0deg.C to 32deg.C (32deg.F to 90deg.F) with 5% to 95% non-condensing humidity

  • Dimensions

    127 x 127 x 38mm / 5.0 x 5.0 x 1.50"

About Viking RG-10A

The Viking RG-10A ring generator is designed to increase ringing power of an existing telephone line, analog PABX extension, analog ISDN Terminal Adapter port, or any other telecom device which provides ringing. The RG-10A duplicates the incoming ring frequency and cadence allowing it to be compatible with custom ringing features. The RG-10A is capable of ringing twelve standard (1 REN) telephone devices and does not affect the normal operation of the telephone line or features provided by the phone company such as "Caller ID" and "Call Waiting."

Viking RG-10A Features

  • Boosts ring to 12 REN
  • Caller ID compatible
  • Easy modular installation
  • Compatible with distinctive ringing services
  • Will not affect normal line operation
  • Reshapes troublesome square wave ringing
  • Capable of boosting talk battery and loop current

Key Features

  • Boosts ring to 12 REN
  • Caller ID compatible
  • Easy modular installation
  • Will not affect normal line operation
  • Reshapes troublesome square wave ringing
  • Capable of boosting talk battery and loop current
