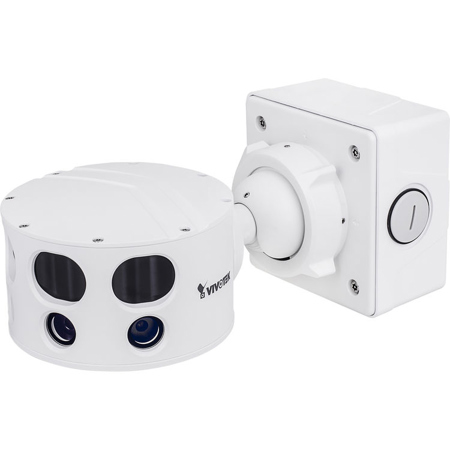

Vivotek MS8391-EV 12MP Outdoor Day & Night Multiple Sensor Network Camera with 6mm Fixed-focal Lens, 7552x1416, 7fps, H.264, MJPEG, PoE

SKU: VIMS8391EV

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Vivotek MS8391-EV Specifications

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    128MB

  • RAM

    1GB

  • Image sensor

    1/2.8" Progressive CMOS

  • Maximum Resolution

    7552 x 1416

  • Lens Type

    Fixed-focal

  • Focal Length

    f=6mm

  • Aperture

    F1.6

  • Field of View

    180 deg. (horizontal)
    34 deg. (vertical)

  • Shutter Time

    1/5 sec to 1/32,000 sec

  • WDR Technology

    WDR Enhanced

  • Day & Night

    Removable IR-cut filter for day & night function

  • Minimum Illumination

    0.23 Lux at F1.6(Color)
    0.01 Lux at F1.6(B/W)

  • Pan / Tilt / Zoom

    ePTZ: 48x digital zoom (4x on IE plug-in,12x built-in)

  • IR Illuminators

    Built-in IR illuminators, effective up to 30m with Smart IR
    IR LED x 4

  • On-board Storage

    Slot Type: MicroSD/SDHC/SDXC card slot
    Seamless Recording

  • Video Compression

    H.264 & MJPEG

  • Maximum Frame Rate

    7fps at 7552 x 1416

  • Maximum Streams

    4 simultaneous streams

  • S/N Ratio

    63dB

  • Dynamic Range

    60dB

  • Video Streaming

    Adjustable resolution, quality and bitrate
    Configurable video cropping for bandwidth saving

  • Image Settings

    Time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Smart Stream

  • Audio Capability

    Audio input/output (full duplex)

  • Audio Compression

    G.711, G.726

  • Interface

    External microphone input
    External line output

  • Interface

    External microphone input
    External line output

  • Users

    Live viewing for up to 10 clients

  • Video Motion Detection

    Five-window video motion detection

  • Alarm Triggers

    Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection

  • Connectors

    RJ-45 cable connector for Network/PoE connection
    Audio input
    Audio output
    AC 24V power input
    1 x Digital input
    1 x Digital output

  • LED Indicator

    System power and status indicator

  • Power Input

    AC24V
    IEEE 802.3af/at PoE Class 4

  • Power Consumption

    AC 24V: Maximum 43.5/15.6W (Heater on/off)
    IEEE 802.3at PoE: Maximum 23.5/15.6W (Heater on/off)

  • Safety Certifications

    CE, LVD, FCC Class B, VCCI, C-Tick, UL

  • Operating Temperature

    AC 24V:
    Starting Temperature: -40 to 60 deg. C / -40 to 140 deg. F
    Working Temperature: -50 to 60 deg. C / -58 to 140 deg. F
    PoE:
    Starting Temperature: -20 to 60 deg. C / -4 to 140 deg. F
    Working Temperature: -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    90%

  • Operating System

    Microsoft Windows 7/8/Vista/XP/2000

  • Web Browser

    Mozilla Firefox 7 to 43 (streaming only)
    Internet Explorer 7/8/9/10/11

  • Other Players

    VLC: 1.1.11 or above
    QuickTime: 7 or above

  • Weight

    2.8kg / 6.17lbs

About Vivotek MS8391-EV

The VIVOTEK MS8391-EV is designed with multiple sensors providing higher resolution, maximizing the field of view and reducing the total number of cameras required, thereby saving on the installation costs. Featuring 4 x 3MP CMOS sensors, the multiple sensor network camera can monitor full horizontal views and deliver high-quality comprehensive coverage, making it an ideal outdoor surveillance solution with sharper images for more details. Covering a wide angle of 180 degrees, the MS8391-EV provides complete video security with no dead angles.

By having Multiple Sensors with 12-Megapixel resolution, users can ePTZ across the entire panoramic image for detailed views. With the powerful 3D Noise Reduction and Smart Stream technology, the MS8391-EV can also optimize quality for desired regions to maximize efficiency of bandwidth usage.

Additionally, as a professional day/night camera, it adopts a Smart IR technology which prevents overexposure and provides noise reduction to adjust the IR lighting intensity instantaneously based on the changes of light in the ambient environment. Finally, the MS8391-EV is armed with a robust IP66 and IK10-rated housing to enable the multisensor camera to withstand rain and dust as well as to protect against vandalism or tampering.

Vivotek MS8391-EV Features

  • 12-Megapixel Resolution
  • 180 deg. Panoramic View
  • 7fps at 7552 x 1416
  • Video Alignment to Have a Seamless Picture
  • Smart IR Technology to Avoid Overexposure
  • Built-in IR Illuminators, Effective up to 30 Meters
  • Smart Stream to Optimize Bandwidth Efficiency
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
  • -50 to 60 deg. C Wide Temperature Range for Extreme Weather Conditions

What's in the box:

  • Vivotek MS8391-EV 12MP Outdoor Day & Night Multiple Sensor Network Camera with 6mm Fixed-focal Lens
  • CD (User's Manual
  • Quick Installation Guide
  • Installation Wizard 2
  • VAST Software)
  • Desiccant Bag
  • Alignment Sticker
  • Wall Mount Kit
  • Screws
  • Vivotek 3 Year Warranty
