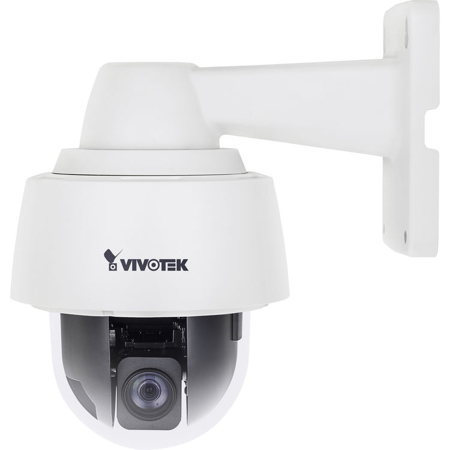

Vivotek SD9362-EHL 2MP Indoor/Outdoor Speed Dome Network Camera, 1/3" CMOS
See all Vivotek items

Vivotek SD9362-EHL 2MP Indoor/Outdoor Day & Night Speed Dome Network Camera, 30x Optical Zoom, 1920x1080, 60fps, Water-Proof, Vandal-Proof, H.265, H.264, MJPEG, 1/3" Progressive CMOS, PoE

SKU: VISD9362EHL

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Vivotek SD9362-EHL Specifications

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    128MB

  • RAM

    512MB

  • Image Sensor

    1/3" Progressive CMOS

  • Maximum Resolution

    1920 x 1080 (2MP)

  • Lens Type

    30x Optical Zoom, Auto Focus

  • Focal Length

    f= 4.3 to 129 mm

  • Aperture

    F1.6 to F4.7

  • Auto-iris

    DC-iris

  • Field of View

    2 to 59 deg. (Horizontal)
    2 x 45 deg. (Vertical)
    3 x 71 deg. (Diagonal)

  • Shutter Time

    1/8 sec. to 1/30,000 sec.

  • WDR Technology

    WDR Pro

  • Day/Night

    Removable IR-cut filter for day & night function

  • Minimum Illumination

    0.42 Lux at F1.6 (Color)
    0.01 Lux at F1.6 (B/W)

  • Pan Speed

    0.05 to 450 deg. /sec.

  • Pan Range

    360 deg. endless

  • Tilt Speed

    0.05 to 450 deg. /sec.

  • Tilt Range

    110 deg.

  • Preset Locations

    256 preset locations, 128 presets per tour

  • Pan/tilt/zoom Functionalities

    128x digital zoom (4x on IE plug-in, 32x built-in)
    Auto pan mode
    Auto patrol mode

  • On-board Storage

    Slot type: SD/SDHC/SDXC card slot Seamless Recording

  • Video Compression

    H.265, H.264, MJPEG

  • Maximum Frame Rate

    H.265 & H.264: 60fps at 1920 x 1080
    MJPEG: 30fps at 1920 x 1080

  • Maximum Streams

    4 simultaneous streams

  • S/N Ratio

    53dB

  • Dynamic Range

    100dB

  • Video Streaming

    Adjustable resolution, quality and constant bit rate control; Smart Stream II

  • Image Settings

    Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (up to 24); Scheduled profile settings, EIS, 3DNR, defog

  • Audio Capability

    Two-way audio (full duplex)

  • Audio Compression

    G.711, G.726

  • Interface

    External microphone input
    External line output

  • Interface

    External microphone input
    External line output

  • Users

    Live viewing for up to 10 clients

  • Protocols

    IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS

  • ONVIF

    Supported

  • Video Motion Detection

    Five-window video motion detection

  • Auto-Tracking

    Auto-tracking on moving object

  • Alarm Triggers

    Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection

  • Alarm Events

    Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card
    File upload via HTTP, SMTP, FTP, NAS server and SD card

  • Connectors

    RJ-45 cable connector for Network/PoE connection
    Audio input
    Audio output
    24V DC / 24V AC power input
    4x Digital input
    2x Digital output
    RS-485

  • LED Indicator

    System power and status indicator

  • Power Input

    24V DC
    24V AC
    60W UPoE

  • Power Consumption

    Maximum 48/26W (Heater on/off)

  • Safety Certifications

    CE, FCC Class A, VCCI, C-tick, UL, NEMA 4X

  • Operating Temperature

    -40 to 55 deg. C (-40 to 131 deg. F)

  • Humidity

    90%

  • Operating System

    Microsoft Windows 7/8/Vista/XP/2000

  • Web Browser

    Mozilla Firefox 7 to 43 (streaming only)
    Internet Explorer 7/8/9/10/11

  • Other Players

    VLC: 1.1.11 or above
    QuickTime: 7 or above

  • Dimensions

    Dia.: 162 x 221mm / 6.38 x 8.70"

  • Weight

    2.95kg / 6.50lbs

About Vivotek SD9362-EHL

VIVOTEK's SD9362-EHL is a high performance H.265 Full HD speed dome network camera. Armed with a 30x optical zoom lens, the camera is able to capture fine details at top-notch quality. By combining both H.265 and VIVOTEK's Smart Stream II technology which enables the camera to optimize quality for desired regions and therefore to maximize efficiency of bandwidth usage, it is capable of reducing both bandwidth and storage consumption by up to 80% while maintaining the highest standard of image quality.

Offering extra smooth video quality with resolutions of up to 60 fps at 1920x1080, the SD9362-EHL is also equipped with WDR Pro technology and IR-cut filter for seamless day/night operation. This enables the camera to cope effortlessly with the challenging lighting conditions faced in 24/7 surveillance. Further, the water-proof IP68-rated, vandal-proof IK10-rated and NEMA 4X-rated housing of the SD9362-EHL protects the camera body against rain, dust and corrosion and provides a wide operating-temperature range of between -40 deg. C and 55 deg. C. This combination of robustness and high performance ensures that the SD9362-EHL is especially suitable for monitoring wide, open, harsh indoor or outdoor spaces such as airports, highways and parking lots where high-level reliability and precision are called for.

Vivotek SD9362-EHL Features

  • H.265 Compression Technology
  • 1080P Full HD CMOS Sensor
  • 60fps at 1920 x 1080
  • 30x Optical Zoom
  • Removable IR-cut Filter for Day & Night Function
  • 360 deg. Continuous Pan and 110 deg. Tilt
  • WDR Pro for Unparalleled Visibility in High Contrast Environments
  • Smart Stream II to Optimize Bandwidth Efficiency
  • Weather-proof IP68-rated, Vandal-proof IK10-rated and NEMA4X Housing
  • -40 to 55 deg. C Wide Temperature Range for Extreme Weather Conditions
  • Audio Detection for Instant Alerts
  • Auto Tracking for Moving Objects
  • Built-in SD/SDHC/SDXC Card Slot for On-board Storage
  • Defog
  • EIS

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Vivotek SD9362-EHL 2MP Indoor/Outdoor Day & Night Speed Dome Network Camera
  • CD (User's Manual
  • Quick Installation Guide
  • Installation Wizard 2
  • VAST Software)
  • Wall Mount Bracket
  • Screws
  • Waterproof Connectors
  • Alignment Sticker
  • L-Wrench
  • Desiccant Bags
  • I/O Combo Cable
  • Vivotek 3 Year Warranty
