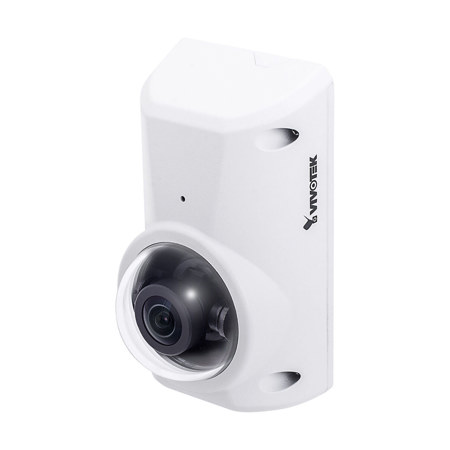

Vivotek C-Series CC9380-HV 5MP Outdoor Compact Fisheye Panoramic Camera, White
See all Vivotek items
25% Off

Vivotek C-Series CC9380-HV 5MP Outdoor Compact Fisheye Panoramic Camera with Night Vision, White

SKU: VIVCC9380HV MFR: CC9380-HV
Be the first to review this itemAsk a Question
$436.50
$582.00
Save: $145.5 (25%)
OR
$73/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture every detail with crystal-clear 5MP video resolution, ensuring optimal security for your property.
  • Experience superior visibility day and night with advanced night vision, even in low-light conditions.
  • Stay informed with reliable motion detection, instantly alerting you to any unusual activity around your home.
  • Enjoy flexible placement and easy setup thanks to convenient wireless connectivity, simplifying installation.
  • Communicate effortlessly with visitors or deter intruders using the integrated two-way audio feature.
  • Securely store your footage with ample cloud storage options, providing peace of mind and easy access to recordings.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Vivotek C-Series CC9380-HV Specifications

System

System

Jump to...

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    256MB

  • RAM

    512MB

Camera

Jump to...

  • Image Sensor

    1/2.7" Progressive CMOS

  • Max. Resolution

    2560x1920 (5MP)

  • Lens Type

    Fixed-focal

  • Focal Length

    f = 1.45mm

  • Aperture

    f/2.2

  • Iris Type

    Fixed iris

  • Field of View

    180 Degree (Horizontal)
    120 Degree (Vertical)
    180 Degree (Diagonal)

  • Shutter Time

    1/5 second to 1/32,000 second

  • WDR Technology

    WDR Pro

  • Day/Night

    Yes

  • Removable IR-cut filter

    Yes

  • Minimum Illumination

    0.11 lux @ f/2.2 (Color)
    0.01 lux @ f/2.2 (B/W)

  • Tilt Range

    +/-25 Degree

  • Pan/Tilt/Zoom Functionalities

    ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

  • Storage

    Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)

Video

Jump to...

  • Compression

    H.265, H.264, MJPEG

  • Maximum Frame Rate

    H.265: 20 fps/30 fps @ 2560x1920 (WDR Pro on/off)
    H.264: 20 fps/25 fps @ 2560x1920 (WDR Pro on/off)
    MJPEG: 20 fps/20 fps @ 2560x1920 (WDR Pro on/off)

  • Maximum Streams

    3 video streams (Up to 8 configurable profiles)

  • S/N Ratio

    62 dB

  • Dynamic Range

    120 dB

  • Video Streaming

    Adjustable resolution, quality and constrained bit rate control, Smart Stream III

  • Image Settings

    General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings
    Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, DIS, scene mode (auto, deblur)
    Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
    Privacy mask
    Scheduled profile settings

Audio

Jump to...

  • Audio Capability

    One-way Audio

  • Compression

    G.711, G.726

  • Interface

    Built-in microphone

  • Effective Range

    16.4' (5m)

Network

Jump to...

  • Users

    Live viewing for up to 10 clients

  • Security

    Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management

  • Protocols

    802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP

  • Interface

    10Base-T/100 BaseTX Ethernet (RJ-45)

  • ONVIF

    Profile G, S, T supported

Solution Integration

Jump to...

  • VADP Package

    Trend Micro IoT Security (1-year free trial), VIVOCloud

  • Video Motion Detection

    Motion Detection (Five-window video motion detection)

Alarm and Event

Jump to...

  • Event Trigger

    Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot

  • Event Action

    Event notification via email, HTTP, FTP, NAS server, SD card, push notification
    File upload via email, HTTP, FTP, NAS server, SD card

System Requirements

Jump to...

  • Operating System

    Microsoft Windows 10/8/7
    Mac 10.12 (Chrome only)

  • Web Browser

    Chrome 58.0 or above
    Internet Explorer 10/11

  • Other Players

    VLC: 1.1.11 or above

General

Jump to...

  • Color

    White

  • Connectors

    RJ-45 cable connector for 10/100 Mbps Network/PoE connection

  • LED Indicator

    System power and status indicator

  • Power Input

    IEEE 802.3af PoE Class 1

  • Power Consumption

    PoE: 5W (Max.)

  • Certifications

    EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), VCCI (VCCI-CISPR 32 Class B)
    Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
    Environment: IK10 (IEC 62262), IP66 (IEC 60529)
    IA: BIS (IS 13252)

  • Operating Temperature

    Starting: 14 Degree F to 122 Degree F (-10 Degree C to 50 Degree C)
    Working: -22 Degree F to 122 Degree F (-30 Degree C to 50 Degree C)

  • Humidity

    90% RH (non-condensing)

  • Country of Origin

    Taiwan

Physical

Jump to...

  • Dimensions

    4.53 x 2.56 x 2.32" (115 x 65 x 59mm)

  • Weight

    11.9 oz (338g)

Other

Jump to...

  • UPC Code

    4710469352003

About Vivotek C-Series CC9380-HV

Vivotek's CC9380-HV is a vandal-proof fisheye network camera offering up to 20 fps at 5-Megapixel resolution when the WDR feature is enabled. With its unique design and inconspicuous appearance, the camera is suitable for a wide array of environments. Featuring 180 Degree horizontal panoramic views with adjustable 25 Degree tilt angle, the camera allows users amazing flexibility of viewing angles and options. The camera's weather-proof compact size also makes it an ideal choice for indoor and outdoor scenarios such as boutiques, convenience stores, banks, schools, parking lots and residential homes.

The camera provides a view of up to 180 degrees, providing complete video security without losing angle coverage. Featuring WDR Pro, the camera captures both the dark and bright areas of an image and combines the differences to create a highly realistic representation of the original scene. Further, with added SNV technology, high-quality full-color surveillance video becomes possible even under low-light conditions. These combined features enable the camera to provide video quality remarkably close to the capabilities of the human eye. Further increasing the level of surveillance, a built-in microphone can record sound within a 5-meter radius.

Vivotek C-Series CC9380-HV Features

  • Weather-proof IP66-rated and Vandal-proof IK10-rated
  • +/-25 Degree Tilt Lens
  • Built-in Microphone
  • 3D Noise Reduction for Low-light Conditions
  • Trend Micro IoT Security

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture every detail with crystal-clear 5MP video resolution, ensuring optimal security for your property.
  • Experience superior visibility day and night with advanced night vision, even in low-light conditions.
  • Stay informed with reliable motion detection, instantly alerting you to any unusual activity around your home.
  • Enjoy flexible placement and easy setup thanks to convenient wireless connectivity, simplifying installation.
  • Communicate effortlessly with visitors or deter intruders using the integrated two-way audio feature.
  • Securely store your footage with ample cloud storage options, providing peace of mind and easy access to recordings.

What's in the box:

  • Vivotek C-Series CC9380-HV 5MP Outdoor Compact Fisheye Panoramic Camera
  • Mounting Bracket
  • Screw Set
  • User Manual
  • Vivotek 3 Year Limited Warranty
