Review Summary
Multimedia SoC (System-on-Chip)
8GB
2GB
1/2.8" Progressive CMOS
2560x1920 (5MP)
Fixed-focal
f = 1.47mm
f/2.7
Fixed iris
180 Degree (Horizontal)
120 Degree (Vertical)
180 Degree (Diagonal)
1/5 second to 1/32,000 second
WDR Pro
Yes
Yes
Built-in IR illuminators up to 65.6' (20m) with Smart IR , 4x IR LED
0.08 lux @ f/2.7 (Color)
0.005lux @ f/2.7 (B/W)
0 lux with IR Illumination on
+/-20 Degree
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
Pixel calculator
H.265, H.264, MJPEG
30 fps @ 2560x1920
3 video streams (Up to 8 configurable profiles)
62 dB
120 dB
Adjustable resolution, quality and constrained bit rate control, Smart Stream III
General settings: video settings, video orientation (flip, mirror, rotation), day/night settings, smart image, Overlay settings
Illuminators: illuminators, anti-overexposure
Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, scene mode (auto)
Exposure:
Exposure strategy (measurement window, metering mode)
Exposure control (exposure level, exposure time, gain control), image sharpener for motion blur, AE speed adjustment, WDR
Privacy mask
Pixel calculator
Scheduled profile settings
One-way Audio
G.711, G.726, MPEG-2 AAC-LC
Built-in microphone
16.4' (5m)
Live viewing for up to 10 clients
Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), User access log, User account management
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP
10Base-T/100 BaseTX Ethernet (RJ-45)
Profile G, S, T, M supported
SoC with built-in hardware deep learning accelerator
Object Detection: People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Bestshot, Path Extraction
Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)
Human face Bestshot, Re-Search Extraction
Deep Learning VCA (Smart Motion Detection, Smart VCA)
Smart VCA - Group 1: Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, face detection)
Smart VCA - Group 2: Unattended object detection, Missing object detection, Crowd detection
Smart VCA - Group 3: Running detection, Parking Violation Detection, Restricted Zone Detection
Smart IR III, Deblur, WDR, White Balance, Exposure Control
Trend Micro IoT Security (3-year free trial)
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot, video loss, video restoration
Event notification via audio clip, camera link, email, HTTP, FTP/SFTP, NAS server, SD card
File upload via email, HTTP, FTP/SFTP, NAS server, SD card
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Chrome 58.0 or above
Internet Explorer 10/11
VLC: 1.1.11 or above
95.9' (29.2m)
38.3' (11.7m)
19' (5.8m)
9.2' (2.8m)
White
RJ-45 cable connector for 10/100 Mbps Network/PoE connection
System power and status indicator
IEEE 802.3af PoE Class 0
IR on/off: 10.26W/6.96W (Max.)
EMC: CE (EN 55032 Class A, EN 55035), UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017 +A11: 2020), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), ICES-003 Issue 7
Safety: UL (UL 62368-1), CB (IEC/EN 62368-1 including annex Y, IEC/EN 62471)
Environment: IK10 (IEC 60529), IP66 (IEC 60529)
IA: BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1)
Starting: 14 Degree F to 131 Degree F (-10 Degree C to 55 Degree C)
Working:
IR on: -22 Degree F to 131 Degree F (-30 Degree C to 55 Degree C)
IR off: -22 Degree F to 140 Degree F (-30 Degree C to 60 Degree C)
98% RH (non-condensing)
Taiwan
6.30 x 2.83 x 2.36" (160 x 72 x 60mm)
17.4 oz (492g)
4710469355738
Enhanced Coverage with Included Tilt Bracket

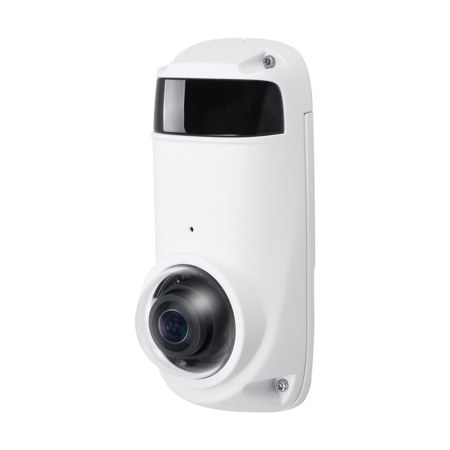

The compact panoramic camera boasts a wide field of view, but the included tilt bracket offers even more flexibility. It allows you to tilt and adjust the camera angle by 15-20 degrees, ensuring you can capture even hard-to-reach areas and eliminate potential blind spots in your security coverage.
Uncover Video Insights with Vision Object Analytics
The compact panoramic camera, equipped with VIVOTEK AI technology, empowers you to enhance investigation efficiency by identifying people and vehicles based on unique attributes like color, gender, and type. Streamline your search process and minimize duplicate entries with precise object tracking.
180-degree View with Clear Evidence
Eliminate blind spots and gain a complete picture of your surroundings with its expansive 180-degree field of view. Seamlessly capture every detail in stunning high-resolution with smooth, crystal-clear video at 30fps for effortless identification and review. This empowers you to see everything, from every angle.
See Clearly, Night and Day
Darkness shouldn't compromise your security. The compact panoramic camera boasts a cutting-edge Smart IR (Infrared) technology. With an effective night vision range of up to 20 meters, you can rest assured that your property is under constant surveillance, day or night.
Hybrid Architecture to Fit Your Needs
VORTEX platform supports a hybrid cloud approach, enabling seamless transition to cloud capabilities and unified management of all your cameras in one single view. Whether you connect your on-premises cameras via V-series embedded NVR or deploy our Vortex cameras direct to cloud, you get the same powerful features and convenience.
End-to-End Security Protection
VIVOTEK safeguards your surveillance system with layered security. From device-level protection with Trend Micro, Secure Boot, and Signed Firmware, to cloud-level safeguards like AES-256 encryption, TLS 1.2, and MFA authentication-your data and access are fully secured across the entire ecosystem.
