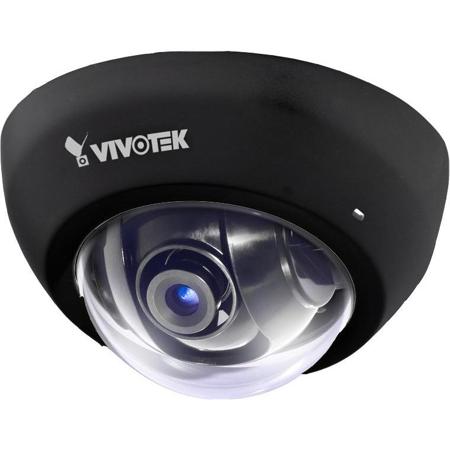

Vivotek 1MP FD8136 Ultra-Mini Indoor Fixed Dome Network Camera with 2.5mm Lens, 1280x800, 30fps, H.264, MJPEG, MPEG-4, PoE, Black

SKU: VIVFD8136F2B

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Vivotek FD8136 Specifications

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    16MB

  • RAM

    128MB

  • Image Sensor

    1/4" Progressive CMOS

  • Maximum Resolution

    1280 x 800

  • Lens Type

    Fixed-focal

  • Focal Length

    f = 2.5mm

  • Aperture

    F2.0

  • Field of View

    H=89.9 deg., V=62 deg., D=101 deg.

  • Shutter Time

    1/5 sec. to 1/32000 sec.

  • Minimum Illumination

    0.45 Lux at F1.8, 50 IRE

  • Pan Range

    45 deg.

  • Tilt Range

    33 deg. - 90 deg.

  • PTZ Functionalities

    ePTZ: 16x digital zoom (4x on IE plug-in, 4x built-in)

  • On-board Storage

    MicroSD/SDHC card slot

  • Video: Compression

    H.264, MJPEG & MPEG-4

  • Video: Maximum Frame Rate

    H.264: 30fps at 1280 x 800
    MPEG-4: 25fps at 1280 x 800
    MJPEG: 30fps at 1280 x 800

  • Video: Maximum Streams

    2 simultaneous streams

  • Video: S/N Ratio

    Above 62dB

  • Video: Streaming

    Adjustable resolution, quality and bitrate
    Configurable video cropping for bandwidth saving

  • Video: Image Settings

    Adjustable image size, quality and bit rate
    Time stamp, text overlay, flip & mirror
    Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
    Scheduled profile settings

  • Audio: Capability

    Audio input

  • Audio: Compression

    GSM-AMR, G.711

  • Audio: Interface

    Internal microphone

  • Audio: Effective Range

    16.4' / 5m

  • Network: Users

    Live viewing for up to 10 clients

  • Network: Protocols

    IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X

  • Network: Interface

    10Base-T/100BaseTX Ethernet (RJ-45)

  • Network: ONVIF

    Ver. 1.02

  • Intelligent Video: Motion Detection

    Triple-window video motion detection

  • Alarm Triggers

    Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notify, camera tampering detection

  • Alarm Events

    HTTP, SMTP, FTP, NAS server
    File upload via HTTP, SMTP, FTP and NAS server

  • Connectors

    RJ-45 for Network/PoE connection
    Terminal block x2 for digital input
    MicroSD/SDHC card slot

  • LED Indicator

    System power and status indicator

  • Power Input

    IEEE 802.3af PoE Class 1

  • Power Consumption

    Max. 3.84W

  • Safety Certifications

    CE, LVD, FCC Class B, VCCI, C-Tick, UL

  • Operating Temperature

    0 - 50 deg. C / 32 - 122 deg. F

  • Dimensions

    Dia: 3.54 x 1.97" / 90 x 50mm

  • Weight

    5.04oz / 143g

  • UPC Code

    4712123672717

About Vivotek FD8136

VIVOTEK FD8136 is the world ' s smallest network fixed dome camera. With installation as easy as one-two-three and Power over Ethernet (PoE) functionality, setup time is completed in less than 120 seconds, making installation quick and easy. The FD8136 features a megapixel sensor enabling viewing resolution of 1280x800 at 30 fps and also supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility also included, video streams can also be transmitted in any of these formats for versatile applications.

Designed with selectable focal lengths, FD8136 can be used in various environments, including but not limited to offices, elevators, campus, chain stores, boutique stores and health care facilities. At the size of only 90 mm in diameter, VIVOTEK FD8136 is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance. The package also includes VIVOTEK's 32-channel recording software. With all this and more, the FD8136 is the ideal solution for your surveillance needs.

Vivotek FD8136 Features

  • 1-Megapixel CMOS Sensor
  • 30 fps at 1280 x 800
  • Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
  • Built-in IEEE 802.3af Compliant PoE
  • Built-in MicroSD/SDHC Card Slot for On-board Storage
  • Compact and Stylish Design
  • Easy Installation

Key Features

  • Easy Installation

What's in the box:

  • Vivotek FD8136 1MP Ultra-Mini Indoor Fixed Dome Network Camera with 2.5mm Lens
  • CD (User's Manual & Quick Installation Guide & Installation Wizard 2 & ST7501 32-Channel Recording Software)
  • Quick Installation Guide
  • Screws Pack
  • Focus Kit
  • Vivotek 2 Year Warranty
