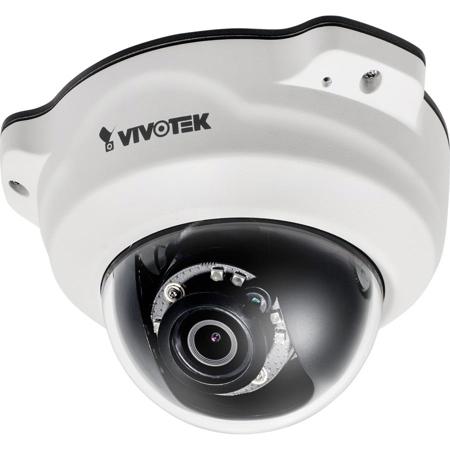

Vivotek FD8164V 2MP 2.8mm Lens Day/Night Outdoor Fixed Dome Network Camera, 1920x1080, 30fps, H.264, MJPEG, Vandal-proof, PoE

SKU: VIVFD8164VF2

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Vivotek FD8164V Specifications

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    128MB

  • RAM

    256MB

  • Image Sensor

    1/2.7" Progressive CMOS

  • Maximum Resolution

    1920 x 1080 (2MP)

  • Lens Type

    Fixed-focal

  • Focal Length

    f = 2.8mm

  • Aperture

    F2.0

  • Field of View

    120 deg. (Horizontal)
    68 deg. (Vertical)
    141 deg. (Diagonal)

  • Shutter Time

    1/5 to 1/32000sec

  • Day/Night

    Removable IR-cut filter for day & night function

  • Minimum Illumination

    0.33 Lux at F2.0, 50 IRE (Color)
    0.001 Lux at F2.0, 50 IRE (B/W)

  • Pan Range

    350 deg.

  • Tilt Range

    60 deg.

  • Rotation Range

    350 deg.

  • PTZ Functionalities

    ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

  • IR Illuminators

    8x Built-in IR illuminators, effective up to 15m IR LED

  • On-board Storage

    MicroSD/SDHC/SDXC card slot

  • Video: Compression

    H.264 & MJPEG

  • Video: Maximum Frame Rate

    30fps at 1920 x 1080 In both compression modes

  • Video: Maximum Streams

    2 simultaneous streams

  • Video: S/N Ratio

    Above 53dB

  • Video: Dynamic Range

    54.5dB

  • Video: Streaming

    Adjustable resolution, quality and bitrate
    Configurable video cropping for bandwidth saving

  • Video: Image Settings

    Adjustable image size, quality and bit rate
    Time stamp, text overlay, flip & mirror
    Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
    Scheduled profile settings, 3D Noise Reduction

  • Audio: Capability

    Audio input

  • Audio: Compression

    G.711

  • Audio: Interface

    Built-in microphone

  • Audio: Effective Range

    16.4' / 5m

  • Network: Users

    Live viewing for up to 10 clients

  • Network: Protocols

    IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X

  • Network: Interface

    10Base-T/100 BaseTX Ethernet (RJ-45)

  • Network: ONVIF

    Supported

  • Intelligent Video: Motion Detection

    Triple-window video motion detection

  • Alarm Triggers

    Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection

  • Alarm Events

    Event notification using digital output, HTTP, SMTP, FTP and NAS server
    File upload via HTTP, SMTP, FTP and NAS server

  • Connectors

    RJ-45 for Network/PoE connection
    Digital input

  • LED Indicator

    System power and status indicator

  • Power Input

    IEEE 802.3af PoE Class 2

  • Power Consumption

    Max. 5.1W

  • Casing

    Weather-proof IP66-rated housing
    Vandal-proof IK10-rated housing

  • Safety Certifications

    CE, LVD, FCC Class A, VCCI, C-Tick

  • Operating Temperature

    Starting Temperature: -10 to 50 deg. C / 14 to 122 deg. F
    Working Temperature: -20 to 50 deg. C / -4 to 122 deg. F

  • Operating System

    Microsoft Windows 7/Vista/XP/2000

  • Web Browser

    Mozilla Firefox 7approx.10 (streaming only)
    Internet Explorer 7/8/9

  • Players

    VLC: 1.1.11 or above QuickTime: 7 or above

  • Dimensions

    Dia: 90 x 50mm / 3.54 x 1.97"

  • Weight

    666g / 23.49oz

About Vivotek FD8164V

VIVOTEK FD8164V is an easy-to-use fixed dome network camera specifically designed for indoor/outdoor security applications with a compact, stylish vandal-proof exterior. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the FD8164V is an all-in-one outdoor camera capable of capturing high quality and high resolution video up to 2 Megapixel. In order to adapt to constantly changing outdoor lighting conditions, the FD8164V features a removable IR-cut filter as well as improved IR illuminators effective up to 15M for superior image quality around the clock.

For protection against harsh outdoor environments, the camera is encased in an IP66-rated housing to withstand dust and rain. Furthermore, the metal vandal-proof housing effectively provides robust protection from vandalism. The FD8164V supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With H.264 and MJPEG compatibility both included, the dual streams can be simultaneously transmitted in any of these formats at different resolutions, frame rates and image qualities for versatile platforms. Thereby it further optimizes bandwidth and storage efficiency.

Incorporating a number of advanced features standard for VIVOTEK cameras, including tamper detection, 802.3af compliant PoE, MicroSD/SDHC/SDXC card slot and VIVOTEK's 32-channel recording software, the FD8164V is the ideal solution for your indoor/outdoor surveillance needs.

Vivotek FD8164V Features

  • 2-Megapixel CMOS Sensor
  • 30 fps at 1920x1080
  • Real-time H.264, MJPEG Compression (Dual Codec)
  • Removable IR-cut Filter for Day & Night Function
  • Built-in IR Illuminators, Effective up to 15 Meters
  • Built-in 802.3af Compliant PoE
  • Build-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
  • Supports ONVIF Standard to Simplify Integration and Enhance Interoperability
  • Weather-proof IP66-rated Housing
  • 3D Noise Reduction for Low-light Conditions

Key Features

  • 30 fps at 1920x1080

What's in the box:

  • Vivotek FD8164V 2MP 2.8mm Lens Day/Night Outdoor Fixed Dome Network Camera
  • Alignment Sticker
  • Screw Pack
  • Software CD
  • Quick Installation Guide
  • CD (User's Manual / Quick Installation Guide / Installation Wizard 2 / ST7501 32-Channel Recording Software)
  • Vivotek 2 Year Warranty
