Vivotek FD8166 Specifications

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash Memory

    16MB

  • RAM

    256MB

  • Image Sensor

    1/2.7" Progressive CMOS

  • Maximum Resolution

    1920 x 1080

  • Lens Type

    Fixed-focal

  • Focal Length

    f = 2.8mm

  • Aperture

    F2.0

  • Field of View

    121 deg. (Horizontal)
    68 deg. (vertical)
    142 deg. (Diagonal)

  • Shutter Time

    1/5 to 1/32000sec

  • Minimum Illumination

    0.24 Lux, 50 IRE

  • Pan Range

    45 deg.

  • Tilt Range

    33 deg. - 90 deg.

  • PTZ Functionalities

    ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

  • On-board Storage

    MicroSD/SDHC/SDXC card slot

  • Video: Compression

    H.264 & MJPEG

  • Video: Maximum Frame Rate

    H.264: 15fps at 1920 x 1080; 30fps at 1280 x 720
    MJPEG: 15fps at 1920 x 1080; 30fps at 1280 x 720

  • Video: Maximum Streams

    2 simultaneous streams

  • Video: S/N Ratio

    Above 53dB

  • Video: Streaming

    Adjustable resolution, quality and bitrate
    Configurable video cropping for bandwidth saving

  • Video: Image Settings

    Adjustable image size, quality and bit rate
    Time stamp, text overlay, flip & mirror
    Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
    Scheduled profile settings

  • Audio: Capability

    Audio input

  • Audio: Compression

    G.711

  • Audio: Interface

    Built-in microphone

  • Audio: Effective Range

    5m / 16.4'

  • Network: Users

    Live viewing for up to 10 clients

  • Network: Protocols

    IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X

  • Network: Interface

    10Base-T/100 BaseTX Ethernet (RJ-45)

  • Network: ONVIF

    Supported, specification available at www.onvif.org

  • Intelligent Video: Motion Detection

    Triple-window video motion detection

  • Alarm Triggers

    Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection

  • Alarm Events

    Event notification using HTTP, SMTP, FTP, NAS server
    File upload via HTTP, SMTP, FTP and NAS server

  • Connectors

    RJ-45 for Network/PoE connection
    Digital input

  • LED Indicator

    System power and status indicator

  • Power Input

    IEEE 802.3af PoE Class 1

  • Power Consumption

    Max. 2.9W

  • Safety Certifications

    CE, LVD, FCC Class B, VCCI, C-Tick

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Operating System

    Microsoft Windows 7/Vista/XP/2000

  • Web Browser

    Mozilla Firefox 7 - 10 (streaming only)
    Internet Explorer 7.x or 8.x

  • Players

    VLC: 1.1.11 or above
    QuickTime: 7 or above

  • Dimensions (Dia. x D)

    3.54 x 1.97" / 90 x 50mm

  • Weight

    5.08oz / 144g

About Vivotek FD8166

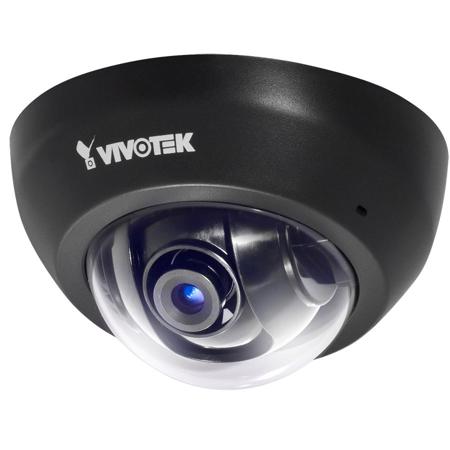

VIVOTEK FD8166 is the world's smallest network fixed dome camera. With installation as easy as one-two-three and Power over Ethernet (PoE) functionality, setup time is completed in less than 120 seconds, making installation quick and easy. The FD8166 features a 2-Megapixel sensor enabling viewing resolution of 1920x1080 at 15 fps and also supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MJPEG compatibility also included, video streams can also be transmitted in any of these formats for versatile applications.

Designed with selectable focal lengths, FD8166 can be used in various environments, including but not limited to offices, elevators, campus, chain stores, boutique stores and health care facilities. At the size of only 90 mm in diameter, VIVOTEK FD8166 is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance. The package also includes VIVOTEK's 32-channel recording software. With all this and more, the FD8166 is the ideal solution for your surveillance needs.

Vivotek FD8166 Features

  • 2-Megapixel CMOS Sensor
  • 15 fps at 1920x1080
  • Real-time H.264, MJPEG Compression (Dual Codec)
  • Built-in IEEE 802.3af Compliant PoE
  • Built-in MicroSD/SDHC Card Slot for On-board Storage
  • Compact and Stylish Design
  • Easy Installation

Key Features

  • 15 fps at 1920x1080
  • Easy Installation

What's in the box:

  • Vivotek FD8166 2MP 2.8mm Full HD Indoor Ultra-mini Fixed Dome Network Camera
  • CD (User's Manual / Quick Installation Guide / Installation Wizard 2 / ST7501 32-Channel Recording Software)
  • Screws Pack
  • Focus Kit
  • Quick Installation Guide
  • Vivotek 2 Year Warranty
