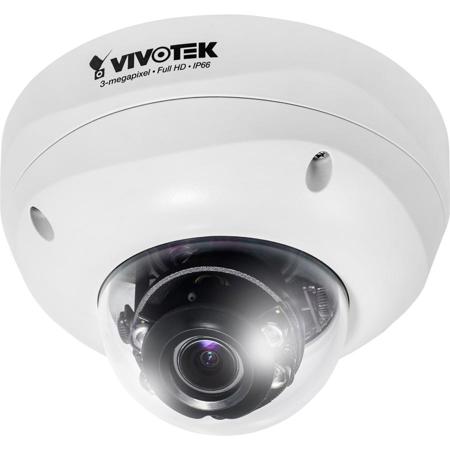

Vivotek FD8371EV 3MP Day & Night Outdoor Fixed Dome Network Camera, 1920x1080, 60fps, H.264, MJPEG, Vandal-proof, PoE

SKU: VIVFD8371EV

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Vivotek FD8371EV Specifications

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash Memory

    256MB

  • RAM

    512MB

  • Image Sensor

    1/2.8" Progressive CMOS

  • Maximum Resolution

    2048 x 1536

  • Lens Type

    Vari-focal, remote focus

  • Focal Length

    f = 3 - 10mm

  • Aperture

    F1.3 - F2.5

  • Auto-iris

    P-iris / DC-iris (Reserved)

  • Field of View

    32 - 99 deg. (Horizontal)
    24 - 72 deg. (Vertical)
    40 - 128 deg. (Diagonal)

  • Shutter Time

    1/5 to 1/8000sec

  • Physical Adjustment of Camera Angel

    Pan: 348 deg., Tilt: 65 deg., Rotation: 350 deg.

  • WDR Technology

    WDR Enhanced

  • Day & Night

    Removable IR-cut filter for day & night function
    Smart IR Technology to Avoid Overexposure

  • Minimum Illumination

    0.1 Lux at F1.3 (Color)
    0.001 Lux at F1.3 (B/W)

  • PTZ Functionalities

    ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)

  • IR Illuminators

    Built-in IR illuminators, effective up to 20m 4x IR LED, with Smart IR Technology

  • On-board Storage

    MicroSD/SDHC/SDXC card slot

  • Video: Compression

    H.264 & MJPEG

  • Video: Maximum Frame Rate

    H.264:30fps at 2048 x 1536; 60fps at 1920 x 1080
    MJPEG: 30fps at 2048 x 1536; 60fps at 1920 x 1080

  • Video: Maximum Streams

    4 simultaneous streams

  • Video: S/N Ratio

    58dB

  • Video: Dynamic Range

    59dB

  • Video: Streaming

    Adjustable resolution, quality and bitrate

  • Video: Image Settings

    Adjustable image size, quality and bit rate
    Time stamp, text overlay, flip & mirror
    Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, audio detection, 3D noise reduction, smart stream, seamless recording, video rotation

  • Audio: Capability

    Two-way Audio (full duplex)

  • Audio: Compression

    AAC, G.711, G.726

  • Audio: Interface

    External microphone input and output

  • Network: Users

    Live viewing for up to 10 clients

  • Network: Protocols

    IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X

  • Network: Interface

    10Base-T/100 BaseTX Ethernet (RJ-45)

  • Network: ONVIF

    Supported, specification available at www.onvif.org

  • Intelligent Video: Motion Detection

    Triple-window video motion detection

  • Alarm Triggers

    Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection

  • Alarm Events

    Event notification using digital output, HTTP, SMTP, FTP and NAS server
    File upload via HTTP, SMTP, FTP and NAS server

  • Smart Focus System

    Remote focal & focus control

  • Connectors

    RJ-45 cable connector for Network/PoE connection
    Audio input
    Audio output
    AC 24V power input/DC 12V power input
    Digital input
    Digital output
    Analog video output

  • LED Indicator

    System power and status indicator

  • Power Input

    24V AC
    12V DC
    IEEE 802.3af PoE Class 3

  • Power Consumption

    Max. 28W (DC 12V)
    Max. 34W (AC 24V)
    Max. 12.95W (PoE)

  • Casing

    Weather-proof IP66-rated housing
    Vandal-proof IK10-rated housing

  • Safety Certifications

    CE, LVD, FCC Class A, VCCI, C-Tick, UL, KCC

  • Operating Temperature

    Starting Temperature: -40 - 50 deg.C / -40 - 122 deg.F
    PoE: -10 to 50 deg. C / 14 to 122 deg. F
    Working Temperature: -50 - 50 deg.C / -58 - 122 deg.F

  • Operating System

    Microsoft Windows 7/Vista/XP/2000

  • Web Browser

    Mozilla Firefox 7 - 10 (Streaming only)
    Internet Explorer 7.x or 8.x

  • Players

    VLC: 1.1.11 or above
    QuickTime: 7 or above

  • Dimensions

    Dia: 6.81 x 4.53" / 173 x 115mm

  • Weight

    43.74oz / 1240g

  • UPC Code

    4712123672588

About Vivotek FD8371EV

VIVOTEK FD8371V/71EV are professional outdoor dome network cameras offering 30 fps at 3-Megapixel or 60 fps at 1080p resolution with superb image quality. As professional day/night cameras, FD8371V/71EV feature a Smart IR technology which provides the excellent ability of anti-overexposure and noise reduction to adjust the IR lighting intensity instantly based on environmental lighting change. Featuring 3D Noise Reduction Technology, it enables the FD8371V/71EV to capture clear, polished video under low-light conditions, which also helps to reduce bandwidth from sensor noise.

By combining with WDR Enhanced technology, users can identify image details in extremely bright as well as dark environments. The FD8371V/71EV also feature Smart Stream Technology, which can be used to optimize resolution on a desired object or area to maximize bandwidth usage. The FD8371V/71EV come with a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field as well as image quality.

For installers, properly adjusting the focus of a megapixel network camera can be difficult due to the image detail. Thus, VIVOTEK has introduced the Smart Focus System to make installation and adjustment easier by allowing for remote focus and zoom adjustment. The IP66-rated housing is designed to help the camera body withstand rain and dust and high pressure water jets from any direction while IK10-rated housing provide the protection against the vandal act and impact. Additionally, the wide temperature range further enhances the FD8371EV's performance and reliability in extremely cold or warm weather.

Vivotek FD8371EV Features

  • 3-Megapixel CMOS Sensor
  • 30 fps at 2048x1536; 60fps at 1920x1080
  • Motorized, P-iris Lens & DC-iris
  • Built-in IR Illuminators, Effective up to 20 Meters

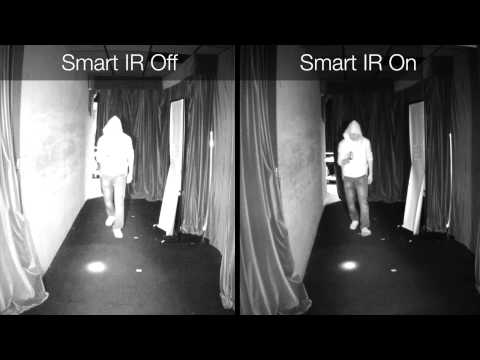

  • Smart IR Technology to Avoid Overexposure
  • Smart Stream to Optimize Bandwidth Efficiency
  • 3D Noise Reduction for Low-light Conditions
  • -50½C - 50½C Wide Temperature Range for Extreme Weather Conditions
  • Real-time H.264 and MJPEG Compression (Dual Codec)
  • Smart Focus System for Remote and Precise Focus Adjustment
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
  • Built-in 802.3af Compliant PoE
  • Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
  • Supreme Night Visibility
  • Video Rotation for Corridor View

Key Features

  • 3-Megapixel CMOS Sensor
  • Motorized, P-iris Lens & DC-iris
  • Built-in 802.3af Compliant PoE
  • Supreme Night Visibility
  • Video Rotation for Corridor View

What's in the box:

  • Vivotek FD8371EV 3MP Day & Night Outdoor Fixed Dome Network Camera
  • CD (User's Manual / Quick Installation Guide / Installation Wizard 2 / Free ST7501 32-Channel Recording Software)
  • Alignment Sticker
  • Mounting Plate
  • L-type Hex Key Wrench
  • Desiccant Bag
  • Screws
  • Hex Nut
  • Double-Sided Tape
  • AV Cable
  • Waterproof Connector
  • Bushing
  • DC Connector
  • Software CD
  • Quick Installation Guide
  • Vivotek 2 Year Warranty
