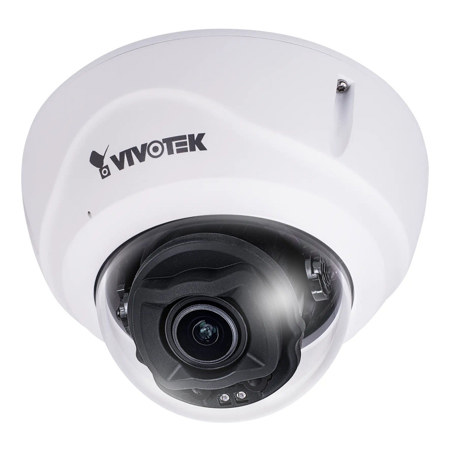

Vivotek Vortex Premium Series FD837-HTV 5MP AI Outdoor Network Dome Camera with Night Vision, 1-Year VSaaS License, White

SKU: VIVFD837HTV1 MFR: FD837-HTV-1Y
Earn VIP Reward Points

Key Features

  • Capture crystal-clear details with 5MP video quality, ensuring every event is recorded perfectly.
  • Experience superior night vision up to 164 feet, providing reliable security even in complete darkness.
  • Benefit from advanced motion detection with AI analytics, intelligently identifying true threats.
  • Enjoy flexible wireless connectivity and Power over Ethernet for versatile and easy installation.
  • Store extensive footage securely with a built-in 512GB industrial SD card for reliable onboard storage.
  • Monitor your property effortlessly with a durable outdoor dome camera, built to withstand harsh weather.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Vivotek Vortex Premium FD837-HTV Specifications

Camera Features

Camera Features

Jump to...
  • Image Sensor

    1/2.8" Progressive CMOS

  • Resolution

    SD: 1280 x 960
    HD: 2560 x 1920

  • Lens Type

    Motorized, Vari-focal, Remote Focus

  • Focal Length

    f = 2.7-13.5mm

  • Aperture

    f/1.4-2.8

  • Iris

    P-iris

  • Field of View

    95 Degree - 30 Degree (Horizontal)
    70 Degree - 23 Degree (Vertical)
    128 Degree - 38 Degree (Diagonal)

  • Camera Movement

    Pan: +/-175 Degree
    Tilt: 80 Degree
    Rotate: +/-175 Degree

  • Shutter Speed

    1/5 second to 1/32,000 second

  • Day/Night

    Yes

  • IR Cut Filter

    Yes

  • IR Range

    164.04' (50m)

  • WDR Technology

    WDR Pro

  • Minimum Illumination

    0.075 lux @ f/1.4 (Color)
    <0.01 lux @ f/1.4 (B/W)
    0 lux with IR illumination on

  • Onboard Storage

    MicroSD/SDHC/SDXC card slot (Built-in 512GB industrial SD Card)

Standard Video Settings

Jump to...
  • Frame Rate

    15FPS

  • Video Streaming Settings

    HD Video 2560 x 1920@15fps 1.2Mbps upload
    SD Video 1280 x 960@15fps 300Kbps upload

Standard Audio Settings

Jump to...
  • Audio

    Two-way Audio (License required to enable speaker talk-down feature)

  • Interface

    External Microphone Input
    External Line Output

Power and Network

Jump to...
  • Power Input

    AC 24V, DC 12V, IEEE 802.3at PoE Class 4 (Power Redundancy)

  • Power Consumption

    PoE: Max. 22.5W / 18W (IR on/off)
    DC 12V: Max. 23W / 18W (IR on/off)
    AC 24V: Max: 21W / 16W (IR on/off)

  • Connectivity

    RJ-45 cable connector for 10/100 Mbps PoE network connection
    Audio line input
    Audio line output
    DC 12V power input/AC 24V power input
    2x Digital input
    1x Digital output

  • Protocols

    WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, NTP, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP

  • Users

    Up to 6 clients

  • Security

    Secure boot
    Signed firmware
    HTTPS/TLS encryption
    Video encryption

  • Interface

    10 Base-T/100 Base-TX Ethernet

AI Analytics

Jump to...
  • Audio Detection

    Yes

  • Tampering Detection

    Yes

  • Application

    Intrusion detection, Line crossing detection, Loitering detection, Unattended object detection, Missing object detection

  • AI Hub with xPro License

    Attribute search, Scene search, Re-search, Profile search, LPR search, Think search, Event insight

  • Application available with license

    Facial recognition, License plate recognition

General

Jump to...
  • Color

    White

  • Body

    Metal

  • Operating Temperature

    Starting: -22 Degree F to 140 Degree F (-30 Degree C to 60 Degree C)
    Working: IR off: -22 Degree F to 140 Degree F (-30 Degree C to 60 Degree C)
    IR on: -22 Degree F to 122 Degree F (-30 Degree C to 50 Degree C)

  • Humidity

    90% RH (non-condensing)

  • Certifications

    EMC: CE (EN55032 Class A,EN55035), FCC (FCC Part 15 Subpart B Class A), ICES-003 issue 7,RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A)
    Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 62471,IEC/EN 60950-22)
    Environment: IK10 (IEC 62262), IP66 (IEC 60529)

  • Country of Origin

    Taiwan

  • Dimensions

    6.10 x 4.09" (155 x 104mm)

  • Weight

    2 lbs (905g)

  • UPC Code

    4710469355042

About Vivotek Vortex Premium FD837-HTV

Monitor Anywhere, Anytime, Any Device
VORTEX unifies surveillance extensions on one platform, offering seamless consistency with various cameras. Automate tasks for better productivity and efficiency. Enjoy seamless remote management with instant notifications to your mobile, email, sirens, and Webhooks, ensuring simplified IT maintenance.

AI Analytics for Comprehensive Surveillance
VORTEX provides real-time alerts and notifications via AI analytics like intrusion, line-crossing, and loitering detection. Its machine learning capabilities enhance accuracy over time, ensuring robust surveillance and peace of mind.

Streamline Your Surveillance with Deep Search
Quickly review camera footage with the Scene Search feature from Deep Search tab page. Use intrusion, line crossing, or loitering detection to enhance efficiency. Draw a line at any point of interest and select a timeframe to find all events where a person or vehicle crossed that line. This allows users to identify and respond to security incidents swiftly.

Advanced Deep Search with Attributes
VORTEX's Deep Search leverages AI for efficient and enhanced search capabilities. It includes Attribute Search, Scene Search, and Re-Search. Using metadata-defined attributes and rules eliminates the need to scroll through footage, enabling faster, smarter, and easier video evidence searches. Quickly find the target person or vehicle by setting criteria such as gender or license plate number.

Vivotek Vortex Premium FD837-HTV Features

  • Premium Series High end professional surveillance line
  • 5 MP Clear five megapixel high resolution imaging
  • Zoom Lens 2.7 to 13.5mm Adjustable zoom for flexible views
  • 50m IR Infrared night vision range up to fifty meters
  • WDR Pro Wide dynamic range for balanced lighting scenes
  • IP66 IK10 Weatherproof and vandal resistant protection
  • FCC CE UL NDAA TAA Certified for compliance and security

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Capture crystal-clear details with 5MP video quality, ensuring every event is recorded perfectly.
  • Experience superior night vision up to 164 feet, providing reliable security even in complete darkness.
  • Benefit from advanced motion detection with AI analytics, intelligently identifying true threats.
  • Enjoy flexible wireless connectivity and Power over Ethernet for versatile and easy installation.
  • Store extensive footage securely with a built-in 512GB industrial SD card for reliable onboard storage.
  • Monitor your property effortlessly with a durable outdoor dome camera, built to withstand harsh weather.

What's in the box:

  • Vivotek Vortex Premium Series FD837-HTV 5MP AI Outdoor Network Dome Camera
  • VSaaS License (1-Year)
  • Screw Set
  • Cable Gland
  • Alignment Sticker
  • User Manual
  • Vivotek 10 Year Limited Warranty
