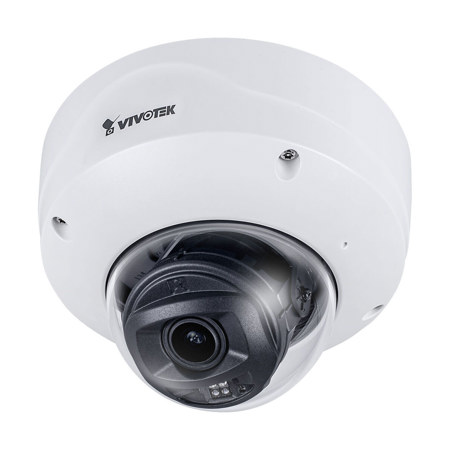

Vivotek V-Series FD9167-HT-V2 2MP AI Indoor Network Dome Camera with Night Vision, White

SKU: VIVFD9167HTV MFR: FD9167-HT-V2
Earn VIP Reward Points

Key Features

  • Experience crystal-clear 2MP Video Quality, ensuring every detail is captured for enhanced home security.
  • Benefit from advanced Night Vision up to 164 feet, providing reliable surveillance even in complete darkness.
  • Stay informed with intelligent Motion Detection, instantly alerting you to any unusual activity around your property.
  • Enjoy flexible Storage Options with seamless recording to microSD or NAS, so you never miss a moment.
  • Connect effortlessly with Wireless Connectivity, simplifying setup and allowing for versatile placement anywhere in your home.
  • Rest assured with Easy Installation, designed for quick and straightforward setup, getting your security camera operational in no time.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Vivotek V-Series FD9167-HT-V2 Specifications

System
  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    8GB

  • RAM

    1GB

  • Image Sensor

    1/2.8" Progressive CMOS

  • Max. Resolution

    1920x1080 (2MP)

  • Lens Type

    Motorized, Vari-focal, Remote Focus

  • Focal Length

    f = 2.7-13.5mm

  • Aperture

    f/1.4-2.8

  • Iris Type

    P-iris

  • Field of View

    110 Degree - 33 Degree (Horizontal)
    55 Degree - 18 Degree (Vertical)
    126 Degree - 37 Degree (Diagonal)

  • Shutter Time

    1/5 second to 1/32,000 second

  • WDR Technology

    WDR Pro

  • Day/Night

    Yes

  • Removable IR-cut filter

    Yes

  • Illuminators

    Built-in IR illuminators, effective up to 164' (50m) with Smart IR II, 4x IR LED (50IRE)

  • Minimum Illumination

    0.035 lux @ f/1.4 (Color) (30IRE)
    0.080 lux @ f/1.4 (Color) (50IRE)
    <0.005 lux @ f/1.4 (B/W)
    0 lux with IR illumination on

  • Pan Range

    +/-175 Degree

  • Tilt Range

    80 Degree

  • Rotation Range

    +/-175 Degree

  • Pan/Tilt/Zoom Functionalities

    ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

  • Storage

    Seamless Recording to MicroSD/SDHC/SDKC card (1TB Capacity Supported) and recording to network-attached storage (NAS)

  • Built-in Installation Aids

    Remote focus, remote zoom, Micro USB, pixel calculator

  • Compression

    H.265, H.264, MJPEG

  • Maximum Frame Rate

    WDR Pro on: 30 fps @ 1920x1080
    WDR Pro off: 60 fps @ 1920x1080

  • Maximum Streams

    3 video streams (Up to 8 configurable profiles)

  • S/N Ratio

    53 dB

  • Dynamic Range

    120 dB

  • Video Streaming

    Adjustable resolution, quality and constant bit rate control, Smart Stream III

  • Image Settings

    General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
    Illuminators: illuminators, anti-overexposure
    Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS (built-in gyro sensor), scene mode (auto, deblur)

  • Image Settings (Contd.)

    Exposure:
    BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
    Focus: zoom, focus

    Privacy mask
    Pixel calculator
    Scheduled profile settings

  • Audio Capability

    Two-way audio (Full duplex)

  • Compression

    G.711, G.726, MPEG-2 AAC-LC

  • Interface

    Built-in microphone
    External microphone Input
    External line output

Network

Jump to...
  • Effective Range

    16.4' (5m)

  • Users

    Live viewing for up to 10 clients

  • Security

    Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), User access log, User account management

  • Protocols

    802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP

  • Interface

    10 Base-T/100 Base-TX Ethernet (RJ-45)

  • ONVIF

    Profile G, S, T supported

AI Analytics

Jump to...
  • Compute Capability

    SoC with built-in hardware deep learning accelerator

  • Vision Object Analytics

    Object Detection: People, Vehicle (4-wheeled), Human / Vehicle Bestshot, Path Extraction

  • Application

    Deep Learning VCA (Smart Motion Detection, Smart VCA)
    Smart VCA - Group 1: Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, face detection)
    Smart VCA - Group 2: Unattended object detection, Missing object detection, Crowd detection

  • Application available with license

    Smart VCA - Group 3: Running detection, Parking Violation Detection, Restricted Zone Detection

Solution Integration

Jump to...
  • VADP Package

    Stratocast, Trend Micro IoT Security (3-year free trial)

  • Video Motion Detection

    Motion Detection (Five-window video motion detection)

Alarm and Event

Jump to...
  • Event Trigger

    Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot

  • Event Action

    Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card
    File upload via email, HTTP, FTP/SFTP, NAS server, SD card

System Requirements

Jump to...
  • Operating System

    Microsoft Windows 10/8/7
    Mac 10.12 (Chrome only)

  • Web Browser

    Chrome 58.0 or above
    Internet Explorer 11

  • Other Players

    VLC: 1.1.11 or above

DORI (EN 62676-4 Standard)

Jump to...
  • Detection (25PPM/ 8PPF)

    Wide: 151.57' (46.2m)
    Tele: 444.88' (135.6m)

  • Observation (63PPM/ 19PPF)

    Wide: 60.04' (18.3m)
    Tele: 176.51' (53.8m)

  • Recognition (125PPM/ 38PPF)

    Wide: 30.18' (9.2m)
    Tele: 88.91' (27.1m)

  • Identification (250PPM/ 76PPF)

    Wide: 15.09' (4.6m)
    Tele: 44.62' (13.6m)

General

Jump to...
  • Color

    White

  • Connectors

    RJ-45 cable connector for 10/100 Mbps PoE network connection

  • LED Indicator

    System power and status indicator

  • Power Input

    AC 24V/DC 12V, IEEE 802.3af PoE Class 0 (Power Redundancy)

  • Power Consumption

    PoE: Max. 9/6W (IR on/off)
    DC 12V: Max. 9/6W (IR on/off)
    AC 24V: Max. 9/6 W (IR on/off)

  • Certifications

    EMC: CE (EN 55032 Class B, EN 55035, EN 50121-4), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B), ICES-003 Issue 7
    Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
    Environment: IP54 (IEC 60529)
    IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)

  • Operating Temperature

    Starting: 32 Degree F to 122 Degree F (0 Degree C to 50 Degree C)

    Working:
    IR off: 14 Degree F to 122 Degree F (-10 Degree C to 50 Degree C)
    IR on: 14 Degree F to 113 Degree F (-10 Degree C to 45 Degree C)

  • Humidity

    90% RH (non-condensing)

  • Country of Origin

    Taiwan

  • Dimensions

    6.85 x 4.84" (174 x 123mm)

  • Weight

    2.18 lbs (990g)

  • UPC Code

    4710469352225

Models
Vivotek V-Series FD9167-HT-V2 2MP AI Indoor Network Dome Camera, White
$570.00

$760.00

Save:$190.00 (25%)

Ships from Manufacturer

Usually ships within 1-2 Days

Vivotek Vortex Essential FD819-HT 5MP AI Indoor Network Dome Camera, 1Yr License
$559.50

$746.00

Save:$186.50 (25%)

Ships from Manufacturer

Usually ships within 1-2 Days

Vivotek V-Series FD9189-H-V3 5MP AI Indoor Network Dome Camera w/Night Vision
$484.50

$646.00

Save:$161.50 (25%)

Ships from Manufacturer

Usually ships within 1-2 Days

Special FeaturesDay & Night Security, Indoor, Network/IP, Storage Card PortDay & Night Security, Indoor, Network/IP, Storage Card PortDay & Night Security, Indoor, Network/IP, Storage Card Port
Resolution2 MP (1920x1080)5 MP (2560x1920)5 MP (2560x1920)
Kit StyleBaseBaseBase
Storage CapacityNA256GBNA
Sensor TypeCMOSCMOSCMOS
Chassis TypeDome StyleDome StyleDome Style

About Vivotek V-Series FD9167-HT-V2

Installation-friendly, Budget-friendly
A brand new Installation-friendly mechanical design has made installation easier and more hassle-free than ever. The camera's modular design means that it can be installed in only 3 simple steps, saving in both time and expense and allowing the user to focus attention on service and upgrades. Featuring wireless access via the supported proprietary Wi-Fi dongle, the view angle can be easily adjusted during installation. The intelligent camera utilizes a rugged IP54-rated housing, protecting it from most dust and water splashes.

Make Your Surveillance Easier and Smarter
VIVOTEK took advantage of its extensive experience in the surveillance field and vast image databases to develop an AI-powered detection engine for people forms. Based on a people silhouette database and rapid responses via a pre-trained deep learning model, the smart engine instantly recognizes the appearance of people forms in the video surveillance area which helps greatly reduce false alarms comparing to the conventional motion detection.

Protect Your Digital Privacy and Assets
Harmonizing the camera with various built-in cybersecurity capabilities, VIVOTEK promises to keep your data safe and secure. Signed firmware, secure boot and Trend Micro IoT Security ensure only the trusted firmware with VIVOTEK digital signature can be installed, protect the system from attacks or infections by malicious unauthenticated code every time you boot up and provide multi-layer protection with the latest signature upgrades.

Lightning-fast Search Speed
Deep Search fully utilizes the data captured by Vision Object Analytics to bring precise and immediate search result. Experience the power of Deep Search in VIVOTEK's network video recording, VAST Security Station, and VORTEX VSaaS.

Vivotek V-Series FD9167-HT-V2 Features

  • Supreme Night Visibility for Low Light Scene
  • WDR Pro for Unparalleled Visibility
  • Built-in IRs up to 50m with Smart IR II
  • AI-powered Smart Motion Detection and Smart VCA
  • Cyber Protection via Trend Micro IoT Security

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience crystal-clear 2MP Video Quality, ensuring every detail is captured for enhanced home security.
  • Benefit from advanced Night Vision up to 164 feet, providing reliable surveillance even in complete darkness.
  • Stay informed with intelligent Motion Detection, instantly alerting you to any unusual activity around your property.
  • Enjoy flexible Storage Options with seamless recording to microSD or NAS, so you never miss a moment.
  • Connect effortlessly with Wireless Connectivity, simplifying setup and allowing for versatile placement anywhere in your home.
  • Rest assured with Easy Installation, designed for quick and straightforward setup, getting your security camera operational in no time.

What's in the box:

  • Vivotek V-Series FD9167-HT-V2 2MP AI Indoor Network Dome Camera
  • Conduit Bracket
  • Waterproof Accessory Set
  • I/O Cable
  • Screw Set
  • L-Shaped Wrench
  • Alignment Sticker
  • Product Labels
  • User Manual
  • Vivotek 3 Year Limited Warranty
