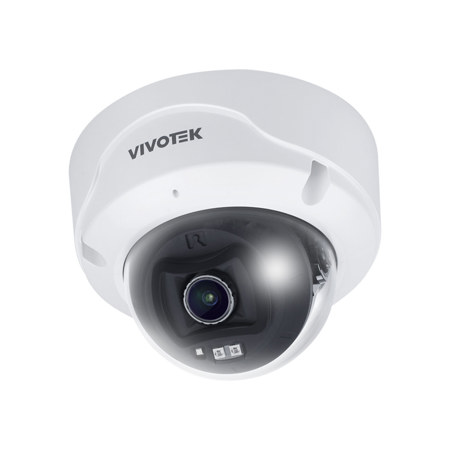

Vivotek V-Series FD9189-H-V3 5MP AI Indoor Network Dome Camera with Night Vision, White

SKU: VIVFD9189HV3 MFR: FD9189-H-V3
Be the first to review this itemAsk a Question
$484.50
$646.00
Save: $161.5 (25%)
OR
$81/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience crystal-clear visuals with 5MP high-resolution, ensuring every detail is captured for your peace of mind.
  • Monitor your property day and night with advanced night vision, providing reliable security even in complete darkness.
  • Receive instant alerts with intelligent motion detection, keeping you informed of any activity around your home or business.
  • Access your security camera feed from anywhere using remote access, so you're always connected to what matters most.
  • Enjoy hassle-free setup with easy installation, getting your security system up and running in no time.
  • Rest assured with a weatherproof design, offering durable performance and protection against the elements.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Vivotek V-Series FD9189-H-V3 Specifications

System

System

Jump to...

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    8GB

  • RAM

    2GB

Camera

Jump to...

  • Image Sensor

    1/2.8" Progressive CMOS

  • Max. Resolution

    2560x1920 (5MP)

  • Lens Type

    Fixed-focal

  • Focal Length

    f = 2.8mm

  • Aperture

    f/2.0

  • Iris Type

    Fixed iris

  • Field of View

    103.4 Degree (Horizontal)
    75.3 Degree (Vertical)
    135.2 Degree (Diagonal)

  • Shutter Time

    1/5 second to 1/32,000 second

  • WDR Technology

    WDR Pro

  • Day/Night

    Yes

  • Removable IR-cut filter

    Yes

  • Illuminators

    Built-in IR illuminators, effective up to 98.43' (30m) with Smart IR, IR LED2

  • Minimum Illumination

    0.055 lux @ f/2.0 (Color)
    0.005 lux @ f/2.0 (B/W)
    0 lux with IR illumination on

  • Pan Range

    350 Degree

  • Tilt Range

    80 Degree

  • Rotation Range

    350 Degree

  • Pan/Tilt/Zoom Functionalities

    ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

  • Storage

    Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)

  • Built-in Installation Aids

    Pixel calculator

Video

Jump to...

  • Compression

    H.265, H.264, MJPEG

  • Maximum Frame Rate

    30 fps @ 2560x1920 (5MP)

  • Maximum Streams

    3 video streams (Up to 8 configurable profiles)

  • Main Stream

    30fps @2560x1920,2048x1536,1920x1440,1600x1200,1280x960,800x600,640x480 (4:3)
    30fps @ 2560x1440, 1920x1080, 1600x904, 1360x768,1280x720, 640x360 (16:9)
    60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)

  • 2nd Stream

    30fps @ 1920x1440, 1600x1200, 1280x960, 800x600, 640x480 (4:3)
    30fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
    60 fps @ 1280x720, 640x360 (16:9)

  • 3rd Stream

    30fps @ 1280x960, 800x600, 640x480 (4:3)
    30 fps @ 1280x720, 640x360 (16:9)
    60 fps @ 1280x720, 640x360 (16:9)

  • S/N Ratio

    55 dB

  • Dynamic Range

    120 dB

  • Video Streaming

    Adjustable resolution, quality and constant bit rate control, Smart Stream III

  • Image Settings

    General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
    Illuminators: illuminators, anti-overexposure, VCA-based Smart IR III
    Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS (built-in gyro sensor), scene mode (auto, deblur)

  • Image Settings (Contd.)

    Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
    Focus: zoom, focus

    Privacy mask
    Pixel calculator
    Scheduled profile settings

  • Display Mode

    HDMI output (type D; 1080p/720p @30/25fps (60/50Hz))

Audio

Jump to...

  • Audio Capability

    Two-way audio (Full duplex)

  • Compression

    G.711, G.726, MPEG-2 AAC-LC

  • Interface

    Built-in microphone
    External microphone Input
    External line output

  • Effective Range

    16.4' (5m)

Network

Jump to...

  • Users

    Live viewing for up to 10 clients

  • Security

    Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management, Built-in FIPS 140-2 Level 2 certified Trusted Platform Module (TPM)

  • Protocols

    802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP

  • Interface

    10 Base-T/100 Base-TX Ethernet (RJ-45)

  • ONVIF

    Profile G, S, T, M supported

AI Analytics

Jump to...

  • Compute Capability

    SoC with built-in hardware deep learning accelerator

  • Vision Object Analytics

    Object Detection: People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Bestshot, Path Extraction
    Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)

    Human face Bestshot, Re-Search Extraction

  • Application

    Deep Learning VCA (Smart Motion Detection, Smart VCA)
    Smart VCA - Group 1: Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, face detection)
    Smart VCA - Group 2: Unattended object detection, Missing object detection, Crowd detection

  • Application available with license

    Smart VCA - Group 3: Running detection, Parking Violation Detection, Restricted Zone Detection

  • RealSight Engine

    Smart IR III, Deblur, WDR, White Balance, Exposure Control

Solution Integration

Jump to...

  • VADP Package

    Trend Micro (Default, 3-year free trial)

  • Video Motion Detection

    Motion Detection (Five-window video motion detection)

Alarm and Event

Jump to...

  • Event Trigger

    Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot

  • Event Action

    Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card
    File upload via email, HTTP, FTP/SFTP, NAS server, SD card

System Requirements

Jump to...

  • Operating System

    Microsoft Windows 10/8/7
    Mac 10.12 (Chrome only)

  • Web Browser

    Chrome 58.0 or above

  • Other Players

    VLC: 1.1.11 or above

DORI (EN 62676-4 Standard)

Jump to...

  • Detection (25PPM/ 8PPF)

    198.1' (60.4m)

  • Observation (63PPM/ 19PPF)

    79.2' (24.1m)

  • Recognition (125PPM/ 38PPF)

    39.5' (12m)

  • Identification (250PPM/ 76PPF)

    19.6' (6m)

General

Jump to...

  • Color

    White

  • Connectors

    RJ-45 cable connector for 10/100 Mbps Network/PoE connection
    HDMI Output (Type D)
    Audio line input
    Audio line output
    Digital input: 1x
    Digital output 1x (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A)

  • LED Indicator

    System power and status indicator

  • Power Input

    IEEE 802.3af PoE Class 3

  • Power Consumption

    IR on/off: 12.4W/ 9.6W (Max.)

  • Certifications

    EMC: CE (EN55032, EN55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A)
    IC (ICES-003 Issue 7, Class A) Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 62368-1, IEC/EN 62471)
    UKCA (BS EN IEC 62368-1) Environment: IA: BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1)

  • Operating Temperature

    Starting: 32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

    Working:
    IR off: 32 Degree F to 113 Degree F (0 Degree C to 45 Degree C)
    IR on: 32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Humidity

    90% RH (non-condensing)

  • Country of Origin

    Taiwan

  • Dimensions

    4.72 x 3.53" (120 x 89.6mm)

  • Weight

    13.05 oz (370g)

Other

Jump to...

  • UPC Code

    4710469355950

About Vivotek V-Series FD9189-H-V3

Great Image Performance Powered by RealSight Engine
RealSight Engine solve the problem of motion blur in images caused by the rapid movement of people captured previously. This ensures that all moving figure details are captured, automatically making the image clearer without the need to adjust the camera shutter speed.

AI Detection for Accurate Alarm
VIVOTEK Smart VCA offers precise object and attribute tracking, providing detailed video analytics for targeted monitoring and quick searches.

Enhanced Security with TPM 2.0
The TPM 2.0 chip provides hardware encryption to protect confidential and cryptographic data, prevent unauthorized access, and also ensures system integrity for long-term security.

HDMI Output Direct Stream Live Footage
This camera equipped with a built-in HDMI output port, allowing users to display live streaming on a monitor. Eliminates the need for an extra workstation, video receiver or interfering with the existing decoration.

Build for Easy Cabling
Just simply pass the existing network cable through and plug it directly into the network port. Two-way audio and alarm I/O expansion are also available, interchangeable cable making replacement and installation quick and effortless.

Complete Video Security with VIVOTEK Solution
Access and manage all devices and accounts through a single platform, providing accurate event monitoring and intuitive security system operation video investigation no matter where you are.

Vivotek V-Series FD9189-H-V3 Features

  • HDMI output for public display
  • AI-powered Smart Motion Detection and Smart VCA
  • RealSight Engine for unparalleled visibility
  • Built-in IRs up to 30m
  • Signed Firmware, Secure Boot, TPM 2.0

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience crystal-clear visuals with 5MP high-resolution, ensuring every detail is captured for your peace of mind.
  • Monitor your property day and night with advanced night vision, providing reliable security even in complete darkness.
  • Receive instant alerts with intelligent motion detection, keeping you informed of any activity around your home or business.
  • Access your security camera feed from anywhere using remote access, so you're always connected to what matters most.
  • Enjoy hassle-free setup with easy installation, getting your security system up and running in no time.
  • Rest assured with a weatherproof design, offering durable performance and protection against the elements.

What's in the box:

  • Vivotek V-Series FD9189-H-V3 5MP AI Indoor Network Dome Camera
  • Screw Set
  • L-Shaped Wrench
  • Alignment Sticker
  • Vivotek 3 Year Limited Warranty
