Vivotek C-Series FD9369 2MP AI Outdoor Network Dome Camera w/Night Vision, White
See all Vivotek items
25% Off

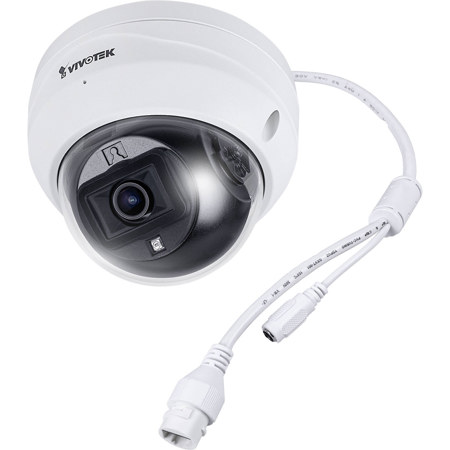

Vivotek C-Series FD9369 2MP AI Outdoor Network Dome Camera with Night Vision, White

SKU: VIVFD9369F2 MFR: FD9369-F2
Be the first to review this itemAsk a Question
$147.75
$197.00
Save: $49.25 (25%)
Earn VIP Reward Points

Key Features

  • Capture crystal-clear Full HD 1080p video quality, ensuring every detail is visible day and night.
  • Experience superior night vision up to 98 feet with Smart IR, providing security even in complete darkness.
  • Benefit from advanced motion detection and AI analytics to accurately identify people and vehicles.
  • Access your security camera remotely from anywhere, keeping an eye on your property with ease.
  • Enjoy straightforward installation with PoE support, simplifying setup and reducing cabling needs.
  • Record seamlessly to a 128GB microSD card or NAS, offering flexible storage options for your footage.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Vivotek C-Series FD9369 Specifications

System

System

Jump to...

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    256MB

  • RAM

    256MB

Camera

Jump to...

  • Image Sensor

    1/3.1" Progressive CMOS

  • Max. Resolution

    1920x1080 (2MP)

  • Lens Type

    Fixed-focal

  • Focal Length

    f=2.8mm

  • Aperture

    f/2.0

  • Iris Type

    Fixed iris

  • Field of View

    116 Degree (Horizontal)
    65 Degree (Vertical)
    140 Degree (Diagonal)

  • Shutter Time

    1/5 second to 1/32,000 second

  • WDR Technology

    WDR Enhanced

  • Day/Night

    Yes

  • Removable IR-cut filter

    Yes

  • Illuminators

    Built-in IR illuminators, effective up to 98.43' (30m) with Smart IR, 1x IR LED

  • Minimum Illumination

    0.08 lux @ f/2.0 (Color)
    <0.005 lux @ f/2.0 (B/W)
    0 lux with IR illumination on

  • Pan Range

    350 Degree

  • Tilt Range

    -10 Degree -75 Degree

  • Pan/Tilt/Zoom Functionalities

    ePTZ: 18x digital zoom (4x on IE plug-in, 4.5x built-in)

  • Storage

    Seamless Recording to MicroSD/SDHC/SDXC card slot (128GB capacity supported) and recording to network-attached storage (NAS)

Video

Jump to...

  • Compression

    H.265, H.264, MJPEG

  • Maximum Frame Rate

    30 fps @ 1920x1080

  • Maximum Streams

    2 video streams (Up to 7 configurable profiles)

  • S/N Ratio

    59 dB

  • Dynamic Range

    WDR Support

  • Video Streaming

    Adjustable resolution, quality and constant bit rate control, Smart Stream III

  • Image Settings

    General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
    Illuminators: illuminators, anti-overexposure
    Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR

  • Image Settings (Contd.)

    Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR

    Privacy mask
    Scheduled profile settings
    Pixel calculator

Audio

Jump to...

  • Audio Capability

    One-way Audio

  • Compression

    G.711, G.726

  • Interface

    Built-in microphone

  • Effective Range

    16.4' (5m)

Network

Jump to...

  • Users

    Live viewing for up to 10 clients

  • Security

    Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, user access log, user account management

  • Protocols

    802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP

  • Interface

    10 Base-T/100 Base-TX Ethernet (RJ-45)

  • ONVIF

    Profile G, S, T supported

AI Analytics

Jump to...

  • Vision Object Analytics

    Path Extraction

  • Application

    Five-window video motion detection, people detection, vehicle detection, time filter

Solution Integration

Jump to...

  • Video Motion Detection

    Motion Detection (Five-window video motion detection)

Alarm and Event

Jump to...

  • Event Trigger

    Audio detection, Camera tampering detection, Manual trigger, Motion detection, Periodical trigger, Recording notification, SD card life expectancy, System boot

  • Event Action

    Event notification via email, HTTP, FTP, SFTP, NAS server, SD card, push notification
    File upload via email, HTTP, FTP, SFTP, NAS server, SD card

System Requirements

Jump to...

  • Operating System

    Microsoft Windows 10/8/7
    Mac 10.12 (Chrome only)

  • Web Browser

    Chrome 58.0 or above
    Internet Explorer 10/11

  • Other Players

    VLC: 1.1.11 or above

General

Jump to...

  • Color

    White

  • Connectors

    RJ-45 cable connector for 10/100Mbps Network/PoE connection

  • LED Indicator

    System power and status indicator

  • Power Input

    IEEE 802.3af Class 0 PoE, DC 12V (Simultaneous Power Redundancy Supported)

  • Power Consumption

    PoE: Max. 6W/4W (IR on/off)
    DC 12V: Max. 5.1W/3.4W (IR on/off)

  • Certifications

    EMC: CE (EN55032 Class B,EN55035), FCC (FCC Part 15 Subpart B Class B), ICES-003 issue 7,RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B)
    Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 62471,IEC/EN 60950-22)
    IA: BIS (IS 13252):BSMI
    Environment: IK10 (IEC 62262), IP66 (IEC 60529)

  • Operating Temperature

    Starting: -22 Degree F to 122 Degree F (-30 Degree C to 50 Degree C)
    Working:
    IR off: -22 Degree F to 131 Degree F (-30 Degree C to 55 Degree C)
    IR on: -22 Degree F to 122 Degree F (-30 Degree C to 50 Degree C)

  • Humidity

    95% RH (non-condensing)

  • Country of Origin

    Taiwan

  • Dimensions

    4.33 x 3.35" (110 x 85mm)

  • Weight

    16.40 oz (465g)

Other

Jump to...

  • UPC Code

    4710469352416

About Vivotek C-Series FD9369

The FD9369 is an outdoor/indoor fixed dome network camera capable of 1920 x 1080 at 30 fps. With the DWDR technology, the camera series is capable of capturing the highest quality images in both low light and high contrast environments.

The camera comes with seamless recording that allows recording to the SD card if the network connection is down. The camera also comes with configurable motion detection and tampering detection with up to 5 privacy mask areas. When the network connection is restored, the recorded video will be retrieved from SD card to NVR only when using VAST 2.

Vivotek C-Series FD9369 Features

  • Built-in IR Illuminators, Effective up to 30 Meters
  • Smart IR Technology to Avoid Overexposure
  • Smart Motion Detection to Reduce False Alarms
  • MicroSD/SDHC/SDXC Card Slot for On-board Storage
  • Weather-proof IP66 & Vandal-proof IK10 Housing

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture crystal-clear Full HD 1080p video quality, ensuring every detail is visible day and night.
  • Experience superior night vision up to 98 feet with Smart IR, providing security even in complete darkness.
  • Benefit from advanced motion detection and AI analytics to accurately identify people and vehicles.
  • Access your security camera remotely from anywhere, keeping an eye on your property with ease.
  • Enjoy straightforward installation with PoE support, simplifying setup and reducing cabling needs.
  • Record seamlessly to a 128GB microSD card or NAS, offering flexible storage options for your footage.

What's in the box:

  • Vivotek C-Series FD9369 2MP AI Outdoor Network Dome Camera
  • Screw Set
  • Cable Gland
  • Desiccant Bag
  • Alignment Sticker
  • User Manual
  • Vivotek 3 Year Limited Warranty
