25% Off

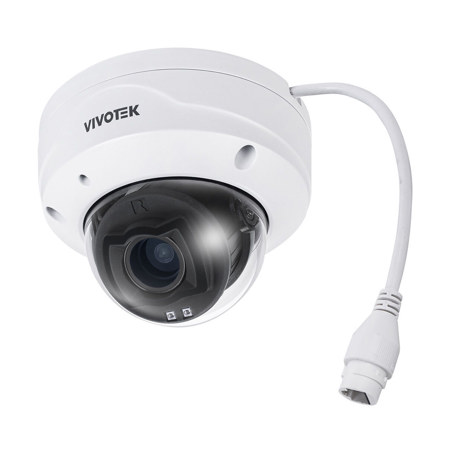

Vivotek V-Series FD9383-HTV 5MP AI Outdoor Network Dome Camera with 2.8-12mm Lens, Night Vision, White

SKU: VIVFD9383HTV MFR: FD9383-HTV
Earn VIP Reward Points

Key Features

  • Experience crystal-clear 5MP video quality, ensuring every detail is captured with precision.
  • Enjoy superior night vision up to 98 feet, providing reliable security even in complete darkness.
  • Benefit from advanced motion detection with AI analytics, reducing false alarms effectively.
  • Access your security cameras remotely from anywhere, keeping an eye on your property with ease.
  • Securely store footage on a MicroSD card or NAS, offering flexible and extensive storage options.
  • Install your new security camera effortlessly with its user-friendly design and clear instructions.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Vivotek V-Series FD9383-HTV Specifications

System
  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    8GB

  • RAM

    2GB

  • Image Sensor

    1/2.8" Progressive CMOS

  • Max. Resolution

    2560x1920 (5MP)

  • Lens Type

    Motorized, Vari-focal, Remote Focus

  • Focal Length

    f = 2.8-12mm

  • Aperture

    f/1.6-3.3

  • Iris Type

    DC-iris

  • Field of View

    95.4 Degree - 28.7 Degree (Horizontal)
    68.8 Degree - 21.5 Degree (Vertical)
    129.6 Degree - 35.9 Degree (Diagonal)

  • Shutter Time

    1/5 second to 1/32,000 second

  • WDR Technology

    WDR Pro

  • Day/Night

    Yes

  • Removable IR-cut filter

    Yes

  • Illuminators

    Built-in IR Illuminator up to 98.43' (30m) with Smart IR, IR LED2

  • Minimum Illumination

    0.04 lux @ f/1.6 (Color)
    0.005 lux @ f/1.6 (B/W)
    0 lux with IR illumination on

  • Pan Range

    353 Degree

  • Tilt Range

    75 Degree

  • Rotation Range

    350 Degree

  • Pan/Tilt/Zoom Functionalities

    ePTZ: 48x digital zoom( 4x on IE plug-in, 12x built-in)

  • Storage

    Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)

  • Built-in Installation Aids

    Remote focus, remote zoom, pixel calculator

  • Compression

    H.265, H.264, MJPEG

  • Maximum Frame Rate

    30 fps @ 2560x1920

  • Maximum Streams

    3 video streams (Up to 8 configurable profiles)

  • Main Stream

    30fps @2560x1920,2048x1536,1920x1440,1600x1200,1280x960,800x600,640x480 (4:3)
    30fps @ 2560x1440, 1920x1080, 1600x904, 1360x768,1280x720, 640x360 (16:9)
    60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)

  • 2nd Stream

    30fps @ 1920x1440, 1600x1200, 1280x960, 640x480 (4:3)
    30fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
    60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)

  • 3rd Stream

    30fps @ 1280x960, 800x600, 640x480 (4:3)
    30 fps @ 1280x720, 640x360 (16:9)
    60 fps @ 1280x720, 640x360 (16:9)

  • S/N Ratio

    59 dB

  • Dynamic Range

    120 dB

  • Video Streaming

    Adjustable resolution, quality and constant bit rate control, Smart Stream III

  • Image Settings

    General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
    Illuminators: illuminators, anti-overexposure/smart IR
    Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR

  • Image Settings (Contd.)

    Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), Image sharpener for motion blur, AE speed adjustment, WDR
    Focus: zoom, focus

    Privacy mask
    Pixel calculator
    Scheduled profile settings

  • Audio Capability

    One-way Audio

  • Compression

    MPEG-2 AAC-LC, G.711, G.726

  • Interface

    Built-in microphone

  • Effective Range

    16.4' (5m)

Network

Jump to...
  • Users

    Live viewing for up to 10 clients

  • Security

    Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management

  • Protocols

    802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP

  • Interface

    10 Base-T/100 Base-TX Ethernet (RJ-45)

  • ONVIF

    Profile G, S, T, M supported

AI Analytics

Jump to...
  • Compute Capability

    SoC with built-in hardware deep learning accelerator

  • Vision Object Analytics

    Object Detection: People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Bestshot, Path Extraction
    Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)
    Human face Bestshot, Re-Search Extraction

  • Application

    Deep Learning VCA (Smart Motion Detection, Smart VCA)
    Smart VCA - Group 1: Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, face detection)
    Smart VCA - Group 2: Unattended object detection, Missing object detection, Crowd detection

  • Application available with license

    Smart VCA - Group 3: Running detection, Parking Violation Detection, Restricted Zone Detection

  • RealSight Engine

    Smart IR III, Deblur, WDR, White Balance, Exposure Control

Solution Integration

Jump to...
  • VADP Package

    Trend Micro (Default, 3-year free trial)

  • Video Motion Detection

    Motion Detection (Five-window video motion detection)

Alarm and Event

Jump to...
  • Event Trigger

    Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot

  • Event Action

    Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card
    File upload via email, HTTP, FTP/SFTP, NAS server, SD card

System Requirements

Jump to...
  • Operating System

    Microsoft Windows 10/8/7
    Mac 10.12 (Chrome only)

  • Web Browser

    Chrome 58.0 or above
    Internet Explorer 11

  • Other Players

    VLC: 1.1.11 or above

DORI (EN 62676-4 Standard)

Jump to...
  • Detection (25PPM/ 8PPF)

    Wide: 219.9' (67m)
    Tele: 674.8' (205.7m)

  • Observation (63PPM/ 19PPF)

    Wide: 87.5' (26.7m)
    Tele: 267.8' (81.6m)

  • Recognition (125PPM/ 38PPF)

    Wide: 43.7' (13.3m)
    Tele: 134.4' (41m)

  • Identification (250PPM/ 76PPF)

    Wide: 21.7' (6.6m)
    Tele: 67.1' (20.5m)

General

Jump to...
  • Color

    White

  • Connectors

    RJ-45 cable connector for 10/100 Mbps Network/PoE connection

  • LED Indicator

    System power and status indicator

  • Power Input

    IEEE 802.3af PoE Class 3

  • Power Consumption

    IR on/off: 9.7W/ 7.2W (Max.)

  • Certifications

    EMC: CE (EN 55032/EN 55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A)
    Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD (IEC/EN 62368-1), UKCA (BS EN 62368-1)
    Environment: IK10 (IEC 62262), IP66 (IEC 60529)
    IA: BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1)

  • Operating Temperature

    Starting: 14 Degree F to 122 Degree F (-10 Degree C to 50 Degree C)

    Working:
    IR off: -22 Degree F to 131 Degree F (-30 Degree C to 55 Degree C)
    IR on: -22 Degree F to 122 Degree F (-30 Degree C to 50 Degree C)

  • Humidity

    90%

  • Country of Origin

    Taiwan

  • Dimensions

    5.27 x 4.09" (133.7 x 103.8mm)

  • Weight

    29.98 oz (850g)

  • UPC Code

    4710469355448

About Vivotek V-Series FD9383-HTV

Imaging Performance
Experience class-leading image performance with the 9383. Its advanced Sony image sensor, combined with STARVIS 2 technology, delivers exceptional clarity and precision. Enjoy a 2.5x increase in dynamic range and light sensitivity, ensuring superior visibility in all lighting conditions. From bright daylight to low-light environments, rest assured that every detail is captured with remarkable clarity.

Daylight Clarity
Stunning daytime imagery with vibrant colors and balanced exposure. The 83 series delivers crisp, clear visuals that capture every detail with vivid accuracy, ensuring optimal surveillance performance in any lighting condition.

Enhanced Visibility in Harsh Lighting
Superior image quality with WDR technology. Even in challenging scenarios like an office setting with sunlight streaming through the window, the 83 series maintains clear visibility, minimizing glare and shadowing for enhanced detail and accuracy in surveillance footage.

Nighttime Vision
Exceptional low-light color performance with sharper, non-overblown imagery around light sources. The 83 series ensures balanced exposure between dark and bright regions, delivering evenly-lit, well-exposed footage with balanced contrast. Enjoy clear and visible images, even within LED backlit displays, for enhanced surveillance effectiveness.

AI Powerhouse
Class-leading AI features in our entry-tier series, providing you with advanced analytics and vision object analytics capabilities for unmatched security solutions. Enhance your investigative efficiency with potent data revealed by the 83 series, identifying people and vehicles by their distinctive attributes such as color, gender, and type. Simplify searches and minimize redundant results with precise object tracing.

Object Detection Performance
Class-leading AI Processor effortlessly manages over 25 detection objects for advanced AI analytics.

Smart VCA: AI-Powered Video Analytics on Edge
Empowers the 83 series to collect more valuable scene awareness data than traditional frame-difference-based video motion detection. Operating as edge-based applications, Smart VCA also minimizes bandwidth and storage usage. Smart VCA is designed to improve efficiency and reduce operators' workloads.

Vision Object Analytics: AI-Driven Solution
While AI adoption has presented challenges in installation and configuration for many, the 83 series with VIVOTEK vision object analytics revolutionizes the process, simplifying user judgment through automated investigation.

Design
The 83 series is a comprehensive package, meticulously designed with fundamental principles spanning from hardware to software.

Vari-Focal Model
Unlock versatility with 4.3x zoom capability for adaptive surveillance needs.

IP66 + IK10
Weather-resistant and vandal-proof, ensuring durability even in harsh outdoor conditions. Built to withstand extreme weather elements and protect against vandalism, providing reliable security in any environment. And Beyond...

Vivotek V-Series FD9383-HTV Features

  • WDR Pro for Unparalleled Visibility
  • Built-in IRs up to 30m with Smart IR III
  • AI-powered Smart Motion Detection and Smart VCA
  • Cyber Protection via Trend Micro IoT Security
  • Signed Firmware and Secure Boot

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience crystal-clear 5MP video quality, ensuring every detail is captured with precision.
  • Enjoy superior night vision up to 98 feet, providing reliable security even in complete darkness.
  • Benefit from advanced motion detection with AI analytics, reducing false alarms effectively.
  • Access your security cameras remotely from anywhere, keeping an eye on your property with ease.
  • Securely store footage on a MicroSD card or NAS, offering flexible and extensive storage options.
  • Install your new security camera effortlessly with its user-friendly design and clear instructions.

What's in the box:

  • Vivotek V-Series FD9383-HTV 5MP AI Outdoor Network Dome Camera with 2.8-12mm Lens
  • Screw Set
  • Cable Gland
  • Alignment Sticker
  • Vivotek 3 Year Limited Warranty
