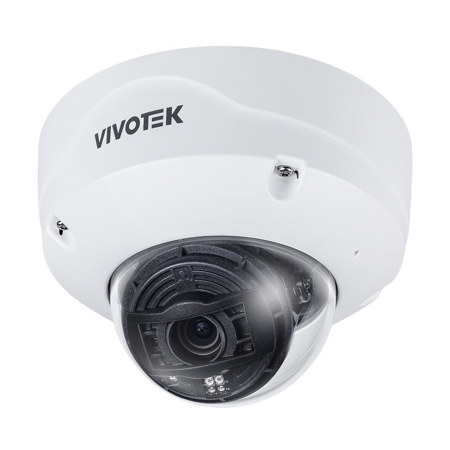

Vivotek V-Series FD9391-EHTV-V2 8MP AI Outdoor Network Dome Camera, White
See all Vivotek items
25% Off

Vivotek V-Series FD9391-EHTV-V2 8MP AI Outdoor Network Dome Camera with Night Vision, White

SKU: VIVFD9391EHT MFR: FD9391-EHTV-V2
Be the first to review this itemAsk a Question
$1,163.25
$1,551.00
Save: $387.75 (25%)
OR
$97/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience crystal-clear surveillance with 8MP Video Resolution, capturing every detail for superior security.
  • Enjoy peace of mind all night long thanks to advanced Night Vision, providing clear images in complete darkness.
  • Stay informed with intelligent Motion Detection, alerting you instantly to any unusual activity around your property.
  • Securely store your footage with flexible Storage Options, ensuring your important recordings are always safe and accessible.
  • Benefit from Easy Installation, getting your security camera up and running quickly without professional help.
  • Access your live feed and recordings from anywhere with convenient Remote Access, keeping you connected 24/7.
See More Product Details
Temporarily On Backorder?Expected Availability: 04/2026Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Vivotek V-Series FD9391-EHTV-V2 Specifications

System

System

Jump to...

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    8GB

  • RAM

    2GB

Camera

Jump to...

  • Image Sensor

    1/1.8" Progressive CMOS

  • Max. Resolution

    3840x2160 (8MP)

  • Lens Type

    Motorized, Vari-focal, Remote Focus

  • Focal Length

    f = 4.4-10.2mm (f = 2.8-10.3mm, equivalent focal length @ 1/2.8")

  • Aperture

    f/1.38-2.24

  • Iris Type

    P-iris

  • Field of View

    110 Degree - 43 Degree (Horizontal)
    57 Degree - 24 Degree (Vertical)
    133 Degree - 49 Degree (Diagonal)

  • Shutter Time

    1 second to 1/100,000 second

  • WDR Technology

    WDR Pro

  • Day/Night

    Yes

  • Removable IR-cut filter

    Yes

  • Illuminators

    Built-in IR illuminators, effective up to 164.04' (50m) with Smart IR III, 4x IR LED (50IRE)

  • Minimum Illumination

    0.01 lux @ f/1.38 (Color)
    <0.005 lux @ f/1.38 (B/W)
    0 lux with IR illumination on

  • Pan Range

    +/-175 Degree

  • Tilt Range

    80 Degree

  • Rotation Range

    +/-175 Degree

  • Pan/Tilt/Zoom Functionalities

    ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

  • Storage

    Seamless Recording to MicroSD/SDHC/SDXC card (1TB Capacity Supported) and recording to network-attached storage (NAS)

  • Built-in Installation Aids

    Remote focus, remote zoom, Micro USB, pixel calculator

Video

Jump to...

  • Compression

    H.265, H.264, MJPEG

  • Maximum Frame Rate

    30 fps @ 3840x2160

  • Maximum Streams

    3 video streams (Up to 8 configurable profiles)

  • S/N Ratio

    58 dB

  • Dynamic Range

    120 dB

  • Video Streaming

    Adjustable resolution, quality and constant bit rate control, Smart Stream III

  • Image Settings

    General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
    Illuminators: illuminators, Smart IR (target zone)
    Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, LDC, EIS, scene mode (auto, deblur)

  • Image Settings (Contd.)

    Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
    Focus: zoom, focus

    Privacy mask
    Pixel calculator
    Scheduled profile settings

Audio

Jump to...

  • Audio Capability

    Two-way audio (Full duplex)

  • Compression

    G.711, G.726, MPEG-2 AAC-LC

  • Interface

    Built-in microphone
    External microphone Input
    External line output

  • Effective Range

    16.4' (5m)

Network

Jump to...

  • Users

    Live viewing for up to 10 clients

  • Security

    Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management

  • Protocols

    802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP

  • Interface

    10 Base-T/100 Base-TX Ethernet

  • ONVIF

    Profile G, S, T, M supported

AI Analytics

Jump to...

  • Compute Capability

    SoC with built-in hardware deep learning accelerator

  • Vision Object Analytics

    Object Detection: People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Bestshot, Path Extraction
    Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)
    Human face Bestshot, Re-Search Extraction

  • Application

    Deep Learning VCA (Smart Motion Detection, Smart VCA)
    Smart VCA - Group 1: Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, face detection)
    Smart VCA - Group 2: Unattended object detection, Missing object detection, Crowd detection

  • Application available with license

    Smart VCA - Group 3: Running detection, Parking Violation Detection, Restricted Zone Detection

  • AI-powered Image Enhancement

    Smart IR III

  • RealSight Engine

    Smart IR III, Deblur, WDR, White Balance, Exposure Control

Solution Integration

Jump to...

  • VADP Package

    Trend Micro IoT Security (3-year free trial)

  • Video Motion Detection

    Motion Detection (Five-window video motion detection)

Alarm and Event

Jump to...

  • Event Trigger

    Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot

  • Event Action

    Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card
    File upload via email, HTTP, FTP/SFTP, NAS server, SD card

System Requirements

Jump to...

  • Operating System

    Microsoft Windows 10/8/7
    Mac 10.12 (Chrome only)

  • Web Browser

    Chrome 58.0 or above
    Internet Explorer 11

  • Other Players

    VLC: 1.1.11 or above

DORI (EN 62676-4 Standard)

Jump to...

  • Detection (25PPM/ 8PPF)

    Wide: 290.9' (88.7m)
    Tele: 670.8' (204.5m)

  • Observation (63PPM/ 19PPF)

    Wide: 116.3' (35.5m)
    Tele: 268.3' (81.8m)

  • Recognition (125PPM/ 38PPF)

    Wide: 58.1' (17.7m)
    Tele: 134.1' (40.9m)

  • Identification (250PPM/ 76PPF)

    Wide: 28.9' (8.8m)
    Tele: 67' (20.4m)

General

Jump to...

  • Color

    White

  • Connectors

    RJ-45 cable connector for 10/100 Mbps PoE network connection
    Audio line input
    Audio line output
    DC 12V power input/AC 24V power input
    2x Digital input
    2x Digital output (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A)
    Micro USB (Extension I/O Module Kit Included by Default)

  • LED Indicator

    System power and status indicator

  • Power Input

    AC 24V/DC 12V, IEEE 802.3at PoE Class 4 (Power Redundancy)

  • Power Consumption

    PoE: 14.25/10.81 W (IR on/off)
    DC 12V: 14.40/10.96 W (IR on/off)
    AC 24V: 11.64/8.20 W (IR on/off)

  • Certifications

    EMC: CE (EN 55032/EN 55035 Class B, EN 50121-4), FCC (FCC Part 15 Subpart B Class B), UKCA (BS EN 55032/BS EN 55035 Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B), IC (ICES-003 Issue 7)
    Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD, (EN 62368-1), UKCA (BS EN IEC 62368-1)

  • Certifications (Contd.)

    Environment: IK10+ (IEC 62262), IP66/67 (IEC 60529), NEMA (NEMA 250 Type 4X), IEC 60068-2-11, IP6K9K (ISO 20653)
    IA: BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1)

  • Operating Temperature

    Starting: -22 Degree F to 140 Degree F (-30 Degree C to 60 Degree C)
    Working:
    IR off: -58 Degree F to 140 Degree F (-50 Degree C to 60 Degree C)
    IR on: -58 Degree F to 122 Degree F (-50 Degree C to 50 Degree C)

  • Humidity

    98% RH (non-condensing)

  • Country of Origin

    Taiwan

  • Dimensions

    6.85 x 4.84" (174 x 123mm)

  • Weight

    3.06 lbs (1.39kg)

Other

Jump to...

  • UPC Code

    4710469353956

About Vivotek V-Series FD9391-EHTV-V2

Installation-friendly, Budget-friendly
A brand new Installation-friendly mechanical design has made installation easier and more hassle-free than ever. The camera's modular design means that it can be installed in only 3 simple steps, saving in both time and expense and allowing the user to focus attention on service and upgrades. Featuring wireless access via the supported proprietary Wi-Fi dongle, the view angle can be easily adjusted during installation. The intelligent camera utilizes a rugged IP54-rated housing, protecting it from most dust and water splashes.

Protect Your Digital Privacy and Assets
Harmonizing the camera with various built-in cybersecurity capabilities, VIVOTEK promises to keep your data safe and secure. Signed firmware, secure boot and Trend Micro IoT Security ensure only the trusted firmware with VIVOTEK digital signature can be installed, protect the system from attacks or infections by malicious unauthenticated code every time you boot up and provide multi-layer protection with the latest signature upgrades.

Lightning-fast Search Speed
Deep Search fully utilizes the data captured by Vision Object Analytics to bring precise and immediate search results. Experience the power of Deep Search in VIVOTEK's network video recording, VAST Security Station, and VORTEX VSaaS.

Vivotek V-Series FD9391-EHTV-V2 Features

  • WDR Pro for Unparalleled Visibility
  • Built-in IRs up to 50m with Smart IR III
  • IP66/IP67/IP6K9K and IK10+/NEMA 4X Protection
  • Cyber Protection via Trend Micro IoT Security
  • AI-powered Smart Motion Detection and Smart VCA

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience crystal-clear surveillance with 8MP Video Resolution, capturing every detail for superior security.
  • Enjoy peace of mind all night long thanks to advanced Night Vision, providing clear images in complete darkness.
  • Stay informed with intelligent Motion Detection, alerting you instantly to any unusual activity around your property.
  • Securely store your footage with flexible Storage Options, ensuring your important recordings are always safe and accessible.
  • Benefit from Easy Installation, getting your security camera up and running quickly without professional help.
  • Access your live feed and recordings from anywhere with convenient Remote Access, keeping you connected 24/7.

What's in the box:

  • Vivotek V-Series FD9391-EHTV-V2 8MP AI Outdoor Network Dome Camera
  • Sunshield
  • Conduit Bracket
  • Screw Set
  • Waterproof Accessory Set
  • I/O Cable
  • L-Shaped Wrench
  • Product Labels
  • Alignment Sticker
  • User Manual
  • Vivotek 3 Year Limited Warranty
