Vivotek FE8181V 5MP 360deg. Day & Night Outdoor Fisheye Dome Network Camera, 1920x1080, 30fps, H.264, MJPEG & MPEG-4, Vandal-Proof, PoE

SKU: VIVFE8181V

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Vivotek FE8181V Specifications

  • System: CPU

    Multimedia SoC (System-on-Chip)

  • System: Flash

    128MB

  • System: RAM

    256MB

  • Camera: Image Sensor

    1/2.5" Progressive CMOS in 2560 x 1920 resolution

  • Camera: Maximum Resolution

    1920x1920

  • Camera: Lens Type

    Fixed-focal

  • Camera: Focal Length

    f = 1.5mm

  • Camera: Aperture

    F2.8

  • Camera: Field of View

    Horizontal: 180 deg.
    Vertical: 180 deg.
    Diagonal: 180 deg.

  • Camera: Shutter Time

    1/5 sec. to 1/32,000 sec.

  • Camera: WDR Technology

    WDR Enhanced

  • Camera: Day/Night

    Removable IR-cut filter for day & night function

  • Camera: Minimum Illumination

    0.6 Lux at F2.8 (Color)
    0.01 Lux at F2.8 (B/W)
    0 Lux at IR LED ON

  • Camera: Preset Locations

    20

  • Camera: Pan/tilt/zoom Functionalities

    ePTZ: 12x digital zoom (12x on IE plug-in)

  • Camera: IR Illuminators

    Built-in IR illuminators, effective up to 10 meters
    6x IR LED

  • Camera: On-board Storage

    MicroSD/SDHC/SDXC card slot

  • Video: Compression

    H.264, MJPEG & MPEG-4

  • Video: Maximum Frame Rate

    15fps at 1920x1920
    30fps at 1920x1080
    In all compression modes

  • Video: Maximum Streams

    3 simultaneous streams

  • Video: S/N Ratio

    Above 50dB

  • Video: Dynamic Range

    Above 60dB

  • Video: Streaming

    Adjustable resolution, quality and bitrate
    Configurable video cropping for bandwidth saving

  • Video: Image Settings

    Time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, pixel calculator, 3D-Noise reduction

  • Audio: Capability

    Audio input/output (full duplex)

  • Audio: Compression

    AAC, G.711, G.726

  • Audio: Interface

    Built-in microphone
    External microphone input
    External line output

  • Audio: Effective Range

    5m / 16.40'

  • Network: Users

    Live viewing for up to 10 clients

  • Network: Protocols

    IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP,FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP,ICMP

  • Network: Interface

    10Base-T/100 BaseTX Ethernet (RJ-45)

  • Network: ONVIF

    Supported

  • Intelligent Video Motion Detection

    Five-window video motion detection

  • Alarm Triggers

    Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection

  • Alarm Events

    Event notification using digital output, HTTP, SMTP, FTP and NAS server
    File upload via HTTP, SMTP, FTP and NAS server

  • Connectors

    RJ-45 cable connector for Network/PoE connection
    Audio input
    Audio output
    DC 12V power input
    Digital input
    Digital output

  • LED Indicator

    System power and status indicator

  • System Requirements: Operating System

    Microsoft Windows 7/Vista/XP/2000

  • System Requirements: Web Browser

    Mozilla Firefox 7 to 10 (streaming only)
    Internet Explorer 7.x,8.x, 9.x, 10.x

  • System Requirements: Other Players

    VLC: 1.1.11 or above
    QuickTime: 7 or above

  • Power Input

    DC 12V
    IEEE 802.3at PoE Class 4

  • Power Consumption

    Max. 22W (DC 12V)
    Max. 23W (PoE+)

  • Camera Casing

    Vandal-proof IK10-rated metal housing
    Weather-proof IP66-rated housing

  • Safety Certifications

    CE, LVD, FCC Class A,VCCI, C-Tick,UL, EN50155

  • Operating Temperature

    Starting Temperature: -25 to 50 deg. C / -13 to 122 deg. F
    Working Temperature: -40 to 50 deg. C / -40 to 122 deg. F

  • Dimensions

    Dia: 160 x 51mm / 6.30 x 2.01"

  • Weight

    794g / 28.01oz

  • UPC Code

    4712123674056

About Vivotek FE8181V

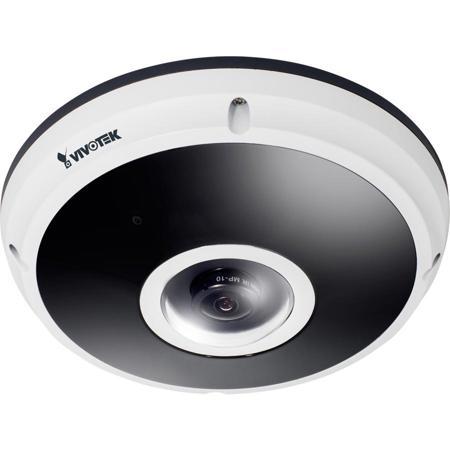

VIVOTEK FE8181/81V are the latest fisheye fixed dome network cameras from VIVOTEK, featuring a detailed 5-Megapixel resolution sensor with superb image quality. Equipped with a fisheye lens for 180deg. panoramic view (wall mount) or 360deg. surround view (ceiling/floor/table mount) without blind spots, the cameras are able to provide coverage of wide, open areas, such as airports, shopping malls, parking lots, retail stores, offices and more.

The FE8181/81V, true day/night cameras, feature a removable IR-cut filter, maintaining clear images 24 hours a day, with built-in IR LEDs enabling the camera to provide uniformly 360deg. surround illumination for clear viewing up to 10 meters, even in completely dark environments.

Vivotek FE8181V Features

  • 5-Megapixel CMOS Sensor
  • 30 fps at 1080p Full HD
  • 1.5 mm Fisheye Lens for 180deg. Panoramic View and 360deg. Surround View
  • Removable IR-cut Filter for Day & Night Function
  • EN50155 Compliance for Professional Mobile Surveillance
  • Real-time H.264, MPEG-4, and MJPEG Compression (Triple Codec)
  • WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
  • Vandal-proof IK10-rated and Weather-proof IP66-rated Housing
  • ePTZ for Data Efficiency
  • Built-in 802.3at Compliant PoE
  • Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
  • Pixel Calculator for Image Clarity Measurement
  • Support Local Dewarping

Key Features

  • 5-Megapixel CMOS Sensor
  • 30 fps at 1080p Full HD
  • ePTZ for Data Efficiency
  • Built-in 802.3at Compliant PoE
  • Support Local Dewarping

What's in the box:

  • Vivotek FE8181V 5MP 360deg. Day & Night Outdoor Fisheye Dome Network Camera
  • Alignment Sticker
  • Desiccant Bag
  • Screw Driver
  • Screws Pack
  • Mounting Bracket
  • Software CD
  • Quick Installation Guide
  • CD (User's Manual & Quick Installation Guide & Installation Wizard 2 & ST7501 32-Channel Recording Software)
  • Vivotek 3 Year Warranty
