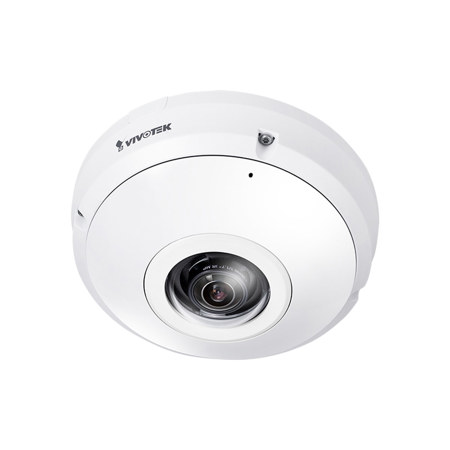

Vivotek V-Series FE9191-H-V2 12MP AI Indoor Fisheye Panoramic Camera, White
See all Vivotek items
25% Off

Vivotek V-Series FE9191-H-V2 12MP AI Indoor Fisheye Panoramic Camera with Night Vision, White

SKU: VIVFE9191HV2 MFR: FE9191-H-V2
Be the first to review this itemAsk a Question
$801.00
$1,068.00
Save: $267 (25%)
OR
$67/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture every detail with stunning 12MP video quality, ensuring clear surveillance footage day and night.
  • Experience superior night vision capabilities, providing crisp images even in extremely low-light conditions.
  • Benefit from advanced motion detection that intelligently identifies activity, reducing false alarms effectively.
  • Enjoy flexible storage options, including seamless recording to a 1TB MicroSD card or network-attached storage.
  • Install your security camera with ease, thanks to user-friendly design and comprehensive setup instructions.
  • Stay connected with reliable wireless connectivity, allowing remote monitoring and peace of mind from anywhere.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Vivotek V-Series FE9191-H-V2 Specifications

System

System

Jump to...

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    8GB

  • RAM

    2GB

Camera

Jump to...

  • Image Sensor

    1/2.3" Progressive CMOS in 4056x3040

  • Max. Resolution

    2944x2944

  • Lens Type

    Fixed-focal

  • Focal Length

    f = 1.22mm

  • Aperture

    f/2.0

  • Iris Type

    Fixed iris

  • Field of View

    180 Degree (Horizontal)
    180 Degree (Vertical)
    180 Degree (Diagonal)

  • Shutter Time

    1/5 second to 1/32,000 second

  • WDR Technology

    WDR Pro

  • Day/Night

    Yes

  • Removable IR-cut filter

    Yes

  • Minimum Illumination

    0.1 lux @ f/2.0 (Color)
    <0.005 lux @ f/2.0 (B/W)

  • Pan/Tilt/Zoom Functionalities

    ePTZ: 12x digital zoom (12x on IE plug-in)

  • Storage

    Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)

  • Built-in Installation Aids

    Pixel calculator

Video

Jump to...

  • Compression

    H.265, H.264, MJPEG

  • Maximum Frame Rate

    30fps @ 2944x2944 (WDR off)
    20fps @ 2944x2944 (WDR on)

  • Maximum Streams

    3 video streams (up to 8 configurable profiles)

  • S/N Ratio

    56.9 dB

  • Dynamic Range

    120 dB

  • Video Streaming

    Adjustable resolution, quality and constant bit rate control, Smart Stream III

  • Image Settings

    General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings, anti-overexposure
    Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR
    Exposure: BLC, exposure control, AE speed adjustment, WDR

    Privacy mask
    Scheduled profile settings
    Pixel calculator

  • Display Mode

    Client dewarping:
    Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions
    Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions, 1P2R One Panoramic Two Regions, 1P3R One Panoramic Three Regions, 1O3R, One Fisheye Three Regions

  • Display Mode (Contd.)

    Local dewarping:
    Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions
    Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions

Audio

Jump to...

  • Audio Capability

    One-way Audio

  • Compression

    G.711, G.726, MPEG-2 AAC-LC

  • Interface

    Built-in microphone

  • Effective Range

    16.4' (5m)

Network

Jump to...

  • Users

    Live viewing for up to 10 clients

  • Security

    Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management

  • Protocols

    802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP

  • Interface

    10 Base-T/100 Base-TX Ethernet (RJ-45)

  • ONVIF

    Profile G, S, T, M supported

AI Analytics

Jump to...

  • Compute Capability

    SoC with built-in hardware deep learning accelerator

  • Vision Object Analytics

    Object Detection: People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Bestshot, Path Extraction
    Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)
    Human face Bestshot, Re-Search Extraction

  • Application

    Deep Learning VCA (Smart Motion Detection, Smart VCA)
    Smart VCA - Group 1: Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection)
    Smart VCA - Group 2: Unattended object detection, Missing object detection, Crowd detection

  • Application available with license

    Smart VCA - Group 3: Running detection, Parking Violation Detection, Restricted Zone Detection

Solution Integration

Jump to...

  • VADP Package

    Stratocast, Trend Micro IoT Security (3-year free trial)

Alarm and Event

Jump to...

  • Event Trigger

    Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot

  • Event Action

    Event notification via audio clip, email, HTTP, FTP, NAS server, SD card
    File upload via email, HTTP, FTP, NAS server, SD card, Camera link

System Requirements

Jump to...

  • Operating System

    Microsoft Windows 10/8/7
    Mac 10.12 (Chrome only)

  • Web Browser

    Chrome 58.0 or above
    Internet Explorer 11

  • Other Players

    VLC: 1.1.11 or above

DORI (EN 62676-4 Standard)

Jump to...

  • Detection (25PPM/ 8PPF)

    103.3' (31.5m)

  • Observation (63PPM/ 19PPF)

    41' (12.5m)

  • Recognition (125PPM/ 38PPF)

    20.7' (6.3m)

  • Identification (250PPM/ 76PPF)

    10.2' (3.1m)

General

Jump to...

  • Color

    White

  • Connectors

    RJ-45 cable connector for 10/100 Mbps PoE network connection
    Audio input
    Audio output
    DC 12V power input
    Digital input
    Digital output (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A)

  • LED Indicator

    System power and status indicator

  • Power Input

    IEEE 802.3af PoE Class 0

  • Power Consumption

    9W (Max.)

  • Certifications

    EMC:
    CE (EN 55032 Class B, EN 55035),FCC (FCC Part 15 Subpart B Class B),RCM (AS/NZS CISPR32 Class B),VCCI (VCCI-CISPR 32 Class B),UKCA (BS EN 55032:2015+A11: 2020, BS EN 55035:2017+A11:2020, BS EN IEC 62368-1:2020+A11:2020),ICES-003 Issue 7
    BSMI (EMC: CNS 13438

    Safety:
    UL (UL62368-1)
    CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)

    IA: BIS (IS 13252)
    BSMI (EMC: CNS 13438, Safety: CNS 14336-1)

  • Operating Temperature

    Starting: 32 Degree F to 122 Degree F (0 Degree C to 50 Degree C)
    Working: -14 Degree F to 122 Degree F (-10 Degree C to 50 Degree C)

  • Humidity

    90% RH (non-condensing)

  • Country of Origin

    Taiwan

  • Dimensions

    5.91 x 2.68" (150 x 68.2mm)

  • Weight

    24.73 oz (701g)

Other

Jump to...

  • UPC Code

    4710469356391

About Vivotek V-Series FE9191-H-V2

VIVOTEK's FE9191-H-v2 is an H.265 fisheye network cameras featuring a detailed 9-Megapixel CMOS sensor that produces superb image clarity. By employing H.265 compression technology and VIVOTEK's Smart Stream III technology, the camera can reduce both bandwidth and storage consumption by up to 80% while retaining the highest standard of image quality.

Equipped with a fisheye lens for 180 Degree panoramic view or 360 Degree surround view (ceiling mount) with zero blind spots, the cameras are able to provide coverage of wide, open areas, such as airports, shopping malls, retail stores, offices and more.

The camera is equipped with a removable IR-cut filter and WDR Pro technology, empowering the cameras to maintain optimal image quality around the clock and unparalleled visibility in high-contrast lighting environments.

Vivotek V-Series FE9191-H-V2 Features

  • Smart Motion Detection to Reduce False Alarms
  • Smart VCA and Vision Object Analytics
  • Cyber Protection via Trend Micro IoT Security
  • Built-in Microphone
  • Local Dewarp

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture every detail with stunning 12MP video quality, ensuring clear surveillance footage day and night.
  • Experience superior night vision capabilities, providing crisp images even in extremely low-light conditions.
  • Benefit from advanced motion detection that intelligently identifies activity, reducing false alarms effectively.
  • Enjoy flexible storage options, including seamless recording to a 1TB MicroSD card or network-attached storage.
  • Install your security camera with ease, thanks to user-friendly design and comprehensive setup instructions.
  • Stay connected with reliable wireless connectivity, allowing remote monitoring and peace of mind from anywhere.

What's in the box:

  • Vivotek V-Series FE9191-H-V2 12MP AI Indoor Fisheye Panoramic Camera
  • Mounting Bracket
  • Screw Set
  • Alignment Sticker
  • User Manual
  • Vivotek 3 Year Limited Warranty
