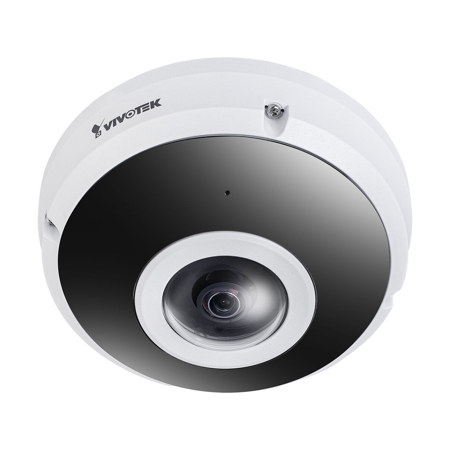

Vivotek C-Series FE9380-HV 5MP Outdoor Fisheye Panoramic Camera, White
See all Vivotek items
25% Off

Vivotek C-Series FE9380-HV 5MP Outdoor Fisheye Panoramic Camera with Night Vision, White

SKU: VIVFE9380HV MFR: FE9380-HV
Be the first to review this itemAsk a Question
$436.50
$582.00
Save: $145.5 (25%)
OR
$73/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture every detail with stunning 5MP High Resolution, ensuring clear surveillance footage.
  • Experience peace of mind with advanced Motion Detection, alerting you to any unusual activity.
  • Enjoy reliable security around the clock thanks to powerful Night Vision capabilities up to 32.81 feet.
  • Connect effortlessly with Wireless Connectivity, simplifying setup and placement for your convenience.
  • Benefit from Easy Installation, getting your security camera system up and running in no time.
  • Safely store your recordings with ample Cloud Storage options, accessible anytime, anywhere.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Vivotek C-Series FE9380-HV Specifications

System

System

Jump to...

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    128MB

  • RAM

    256MB

Camera

Jump to...

  • Image Sensor

    1/2.7" Progressive CMOS in 2688x1944

  • Max. Resolution

    1920x1920

  • Lens Type

    Fixed-focal

  • Focal Length

    f = 1.16mm

  • Aperture

    f/2.25

  • Iris Type

    Fixed iris

  • Field of View

    180 Degree (Horizontal)
    180 Degree (Vertical)
    180 Degree (Diagonal)

  • Shutter Time

    1/5 second to 1/32,000 second

  • WDR Technology

    WDR Pro

  • Day/Night

    Yes

  • Removable IR-cut filter

    Yes

  • Illuminators

    Built-in IR illuminators, effective up to 32.81' (10m) with Smart IR, 4x IR LED

  • Minimum Illumination

    0.05 lux @ f/2.25 (Color)
    <0.005 lux @ f/2.25 (B/W)
    0 lux with IR illumination on

  • Pan/Tilt/Zoom Functionalities

    ePTZ: 12x digital zoom (12x on IE plug-in)

  • Storage

    Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)

  • Built-in Installation Aids

    Pixel calculator

Video

Jump to...

  • Compression

    H.265, H.264, MJPEG

  • Maximum Frame Rate

    24 fps @ 1920x1920 (WDR on)
    30 fps @ 1920x1920 (WDR off)

  • Maximum Streams

    4 video streams (Up to 9 configurable profiles)

  • S/N Ratio

    63 dB

  • Dynamic Range

    120 dB

  • Video Streaming

    Adjustable resolution, quality and constant bit rate control, Smart Stream III

  • Image Settings

    General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings
    Illuminators: illuminators, anti-overexposure
    Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR
    Exposure: BLC, exposure control, AE speed adjustment, WDR

    Privacy mask
    Scheduled profile settings
    Pixel calculator

  • Display Mode

    Client dewarping:
    Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions
    Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions, 1P2R One Panoramic Two Regions, 1P3R One Panoramic Three Regions, 1O3R, One Fisheye Three Regions

  • Display Mode (Contd.)

    Local dewarping:
    Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions
    Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions

Audio

Jump to...

  • Audio Capability

    One-way Audio

  • Compression

    G.711, G.726

  • Interface

    Built-in microphone

  • Effective Range

    16.4' (5m)

Network

Jump to...

  • Users

    Live viewing for up to 10 clients

  • Security

    Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management

  • Protocols

    802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP

  • Interface

    10 Base-T/100 Base-TX Ethernet (RJ-45)

  • ONVIF

    Profile G, S, T supported

Solution Integration

Jump to...

  • VADP Package

    Trend Micro IoT Security (1-year free trial), VIVOCloud

  • Video Motion Detection

    Five-window video motion detection

Alarm and Event

Jump to...

  • Event Trigger

    Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot

  • Event Action

    Event notification via email, HTTP, FTP, NAS server, SD card
    File upload via email, HTTP, FTP, NAS server, SD card, Camera link

System Requirements

Jump to...

  • Operating System

    Microsoft Windows 10/8/7
    Mac 10.12 (Chrome only)

  • Web Browser

    Chrome 58.0 or above
    Internet Explorer 10/11

  • Other Players

    VLC: 1.1.11 or above

DORI (EN 62676-4 Standard)

Jump to...

  • Detection (25PPM/ 8PPF)

    103' (31.4m)

  • Observation (63PPM/ 19PPF)

    41' (12.5m)

  • Recognition (125PPM/ 38PPF)

    20.7' (6.3m)

  • Identification (250PPM/ 76PPF)

    10.2' (3.1m)

General

Jump to...

  • Color

    White

  • Connectors

    RJ-45 cable connector for 10/100 Mbps PoE network connection

  • LED Indicator

    System power and status indicator

  • Power Input

    IEEE 802.3af PoE Class 0

  • Power Consumption

    IR on/off: 12W/3.8W (Max.)

  • Certifications

    EMC: CE (EN 55032 Class A), FCC (FCC Part 15 Subpart B Class A), VCCI (VCCI-CISPR 32 Class A)
    Safety: UL (UL 62368-1), CB (CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
    Environment: IK10 (IEC 62262), IP66 (IEC 60529)
    IA: BIS (IS 13252)

  • Operating Temperature

    Starting: 14 Degree F to 140 Degree F (-10 Degree C to 60 Degree C)
    Working: -22 Degree F to 140 Degree F (-30 Degree C to 60 Degree C)

  • Humidity

    90%

  • Country of Origin

    Taiwan

  • Dimensions

    5.91 x 2.68" (150 x 68.2mm)

  • Weight

    24.52 oz (695g)

Other

Jump to...

  • UPC Code

    4710469351754

About Vivotek C-Series FE9380-HV

VIVOTEK's FE9380 is H.265 fisheye fixed dome network camera, featuring a detailed 5-Megapixel CMOS sensor that produces superb image clarity. By employing H.265 compression technology and VIVOTEK's Smart Stream III technology, this camera can reduce both bandwidth and storage consumption by up to 80% while retaining the highest standard of image quality.

Equipped with a fisheye lens for 180 Degree panoramic view (wall mount) or 360 Degree surround view (ceiling/floor mount) with zero blind spots, the camera is able to provide coverage of wide, open areas, such as airports, shopping malls, retail stores, offices and more.

The camera is equipped with a removable IR-cut filter and WDR Pro technology, empowering the camera to maintain optimal image quality around the clock and unparalleled visibility in high-contrast lighting environments. Moreover, the camera is designed with full EN50155 compliance, vandal-proof IK10-rated, and weather-proof IP66-rated housing, ensuring that the camera can withstand shock, vibration, humidity, dust, and temperature fluctuations, and maintain stable and reliable video capture during vehicle movement.

Vivotek C-Series FE9380-HV Features

  • WDR Pro for Unparalleled Visibility
  • Built-in IR Illuminators, Effective up to 10 Meters
  • Weather-proof IP66 & Vandal-proof IK10 Housing
  • Cyber Protection via Trend Micro IoT Security
  • Built-in Microphone

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture every detail with stunning 5MP High Resolution, ensuring clear surveillance footage.
  • Experience peace of mind with advanced Motion Detection, alerting you to any unusual activity.
  • Enjoy reliable security around the clock thanks to powerful Night Vision capabilities up to 32.81 feet.
  • Connect effortlessly with Wireless Connectivity, simplifying setup and placement for your convenience.
  • Benefit from Easy Installation, getting your security camera system up and running in no time.
  • Safely store your recordings with ample Cloud Storage options, accessible anytime, anywhere.

What's in the box:

  • Vivotek C-Series FE9380-HV 5MP Outdoor Fisheye Panoramic Camera
  • Mounting Base Plate
  • Screw Set
  • Desiccant Bag
  • Silicone Seal Plug
  • Penetration Cap
  • T10 Star Driver
  • DI/DO Audio Combo Cable
  • Alignment Sticker
  • User Manual
  • Vivotek 3 Year Limited Warranty
