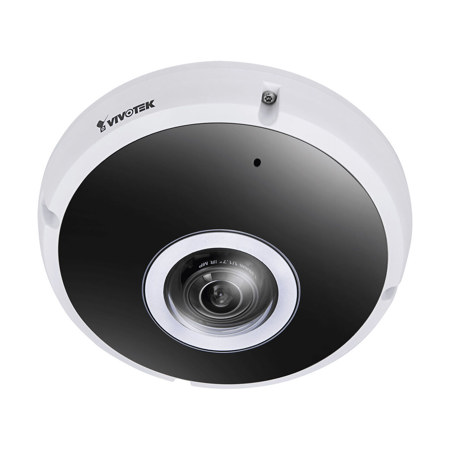

Vivotek V-Series FE9391-EHV-V2 12MP AI Outdoor Network Fisheye Dome Camera with Night Vision, White

Multimedia SoC (System-on-Chip)

8GB

2GB

1/2.3" Progressive CMOS in 4056x3040

2944x2944

Fixed-focal

f = 1.22mm

f/2.0

Fixed iris

180 Degree (Horizontal)
180 Degree (Vertical)
180 Degree (Diagonal)

1/5 second to 1/32,000 second

WDR Pro

Yes

Yes

0.1 lux @ f/2.0 (Color)
<0.005 lux @ f/2.0 (B/W)
0 lux with IR illumination on

ePTZ: 12x digital zoom (12x on IE plug-in)

Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)

Pixel calculator

H.265, H.264, MJPEG

30fps @ 2944x2944 (WDR off)
20fps @ 2944x2944 (WDR on)

3 video streams (up to 8 configurable profiles)

56.9 dB

120 dB

Adjustable resolution, quality and constant bit rate control, Smart Stream III

General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings, anti-overexposure
Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR
Exposure: BLC, exposure control, AE speed adjustment, WDR

Privacy mask
Scheduled profile settings
Pixel calculator

Client dewarping:
Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions
Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions, 1P2R One Panoramic Two Regions, 1P3R One Panoramic Three Regions, 1O3R, One Fisheye Three Regions

Local dewarping:
Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions
Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions

Two-way Audio (full duplex)

G.711, G.726, MPEG-2 AAC-LC

Built-in microphone
External microphone input
External line output

16.4' (5m)

Live viewing for up to 10 clients

Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management

802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP

10 Base-T/100 Base-TX Ethernet (RJ-45)

Profile G, S, T, M supported

SoC with built-in hardware deep learning accelerator

Object Detection: People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Bestshot, Path Extraction
Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)
Human face Bestshot, Re-Search Extraction

Deep Learning VCA (Smart Motion Detection, Smart VCA)
Smart VCA - Group 1: Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection)
Smart VCA - Group 2: Unattended object detection, Missing object detection, Crowd detection

Smart VCA - Group 3: Running detection, Parking Violation Detection, Restricted Zone Detection

Smart IR III

Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot

Event notification via audio clip, digital output, email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card, Camera link

Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)

Chrome 58.0 or above
Internet Explorer 11

VLC: 1.1.11 or above

103.3' (31.5m)

41' (12.5m)

20.7' (6.3m)

10.2' (3.1m)

Black/White

RJ-45 cable connector for 10/100 Mbps PoE network connection
Audio input
Audio output
DC 12V power input
Digital input
Digital output (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A)

System power and status indicator

IEEE 802.3at PoE Class 4

IR on/off: 22.5W/9.55W (Max.)

EMC: CE (EN 55032 Class A, EN 55024), FCC (FCC Part 15 Subpart B Class A), VCCI (VCCI-CISPR 32 Class A)
Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22)
Environment: IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Type 4X)
IA: BIS (IS 13252)

Starting: -4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C)
Working:
IR off: -40 Degree F to 131 Degree F (-40 Degree C to 55 Degree C)
IR on: -40 Degree F to 122 Degree F (-40 Degree C to 50 Degree C)

90% RH (non-condensing)

Taiwan

5.91 x 2.68" (150 x 68.2mm)

24.73 oz (701g)

4710469352683
