Vivotek IB8367-RT Specifications

  • System: CPU

    Multimedia SoC (System-on-Chip)

  • System: Flash

    128MB

  • System: RAM

    256MB

  • Camera: Image Sensor

    1/2.8" Progressive CMOS

  • Camera: Maximum Resolution

    1920x1080 (2MP)

  • Camera: Lens Type

    Vari-focal

  • Camera: Focal Length

    f = 2.8 to 12mm

  • Camera: Aperture

    F1.8 to F2.85

  • Camera: Auto-iris

    P-Iris

  • Camera: Field of View

    45 to 103 deg. (Horizontal)
    25 to 56 deg. (Vertical)
    54 to 128 deg. (Diagonal)

  • Camera: Shutter Time

    1/5 sec. to 1/32,000 sec.

  • Camera: WDR Technology

    WDR Enhanced

  • Camera: Day/Night

    Removable IR-cut filter for day & night function

  • Camera: Minimum Illumination

    0.06 Lux at F1.8 (Color)
    0.001 Lux at F1.8 (B/W)

  • Camera: Pan/tilt/zoom Functionalities

    ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)

  • Camera: IR Illuminators

    Built-in IR illuminators, effective up to 30 meters with Smart IR
    6x IR LED

  • Camera: On-board Storage

    SD/SDHC/SDXC card slot

  • Video: Compression

    H.264 & MJPEG

  • Video: Maximum Frame Rate

    30fps at 1920x1080
    In both compression modes

  • Video: Maximum Streams

    3 simultaneous streams

  • Video: S/N Ratio

    Above 58dB

  • Video: Dynamic Range

    60.37dB

  • Video: Streaming

    Adjustable resolution, quality and bitrate

  • Video: Image Settings

    Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, Seamless recording, smart stream, 3D Noise Reduction

  • Audio: Capability

    Audio input /output (full duplex)

  • Audio: Compression

    G.711, G.726

  • Audio: Interface

    External microphone input
    External line output

  • Network: Users

    Live viewing for up to 10 clients

  • Network: Protocols

    IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP

  • Network: Interface

    10Base-T/100 BaseTX Ethernet (RJ-45)

  • Network: ONVIF

    Supported

  • Intelligent Video Motion Detection

    Triple-window video motion detection

  • Alarm Triggers

    Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection

  • Alarm Events

    Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card
    File upload via HTTP, SMTP, FTP, NAS server and SD card

  • Smart Focus System

    Remote focus

  • Connectors

    RJ-45 cable connector for Network/PoE
    RJ-45 cable connector for PoE output
    Audio input
    Audio output
    Digital input
    Digital output

  • LED Indicator

    System power and status indicator

  • Camera: Casing

    Weather-proof IP66-rated housing

  • Safety Certifications

    CE, LVD, FCC Class A, VCCI, C-Tick, UL

  • System Requirements: Operating System

    Microsoft Windows 7/8/Vista/XP/2000

  • System Requirements: Web Browser

    Mozilla Firefox 7 to 10 (streaming only)
    Internet Explorer 7.x,8.x, 9.x, 10.x

  • System Requirements: Other Players

    VLC: 1.1.11 or above
    QuickTime: 7 or above

  • Power Input

    IEEE 802.3at, UPoE

  • Power Consumption

    Max:12.6 W (PoE)

  • Operating Temperature

    Starting Temperature: -10 to 50 deg. C / 14 to 122 deg. F
    Working Temperature: -20 to 50 deg. C / -4 to 122 deg. F

  • Dimensions (Dia. x H)

    82 x 283mm / 3.22 x 11.14"

  • Weight

    985g / 34.74oz

  • UPC Code

    4712123674490

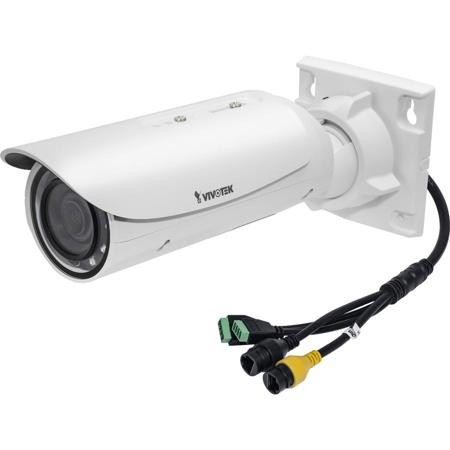

About Vivotek IB8367-RT

When it comes to outdoor surveillance applications or those covering large areas, such as wide-open factory sites, large-scale production lines, main intersections and outdoor parking lots, the installation of a surveillance system is always more challenging than indoor implementation because of a shortage of power supply and unpredictable weather and lighting conditions. Particularly, a constant and stable power supply is always the first issue during system implementation. Installers usually have no choice but to adopt additional and excessive hardware such as PoE switches, extenders, injectors or splitters in order to ease power deployment and provide reliable power and therefore consistent surveillance.

• 2-Megapixel CMOS Sensor
• 30 fps at 1920x1080
• 2.8 - 12 mm Vari-focal, P-iris Lens
• Removable IR-cut Filter for Day & Night Function
• Built-in IR Illuminators, Effective up to 30 Meters
• Real-time H.264 and MJPEG Compression
• Two-way Audio
• WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
• Weather-proof IP66-rated Housing
• 3D Noise Reduction
• Smart IR Technology to Avoid Overexposure
• Embedded PoE Extender Design to Support both PoE Input & Output
• SNV (Supreme Night Visibility)

Revolutionary Installation
Now however, thanks to VIVOTEK's IB8367-RT network camera, system implementation can be much simpler, easier and provided at a lower cost without sacrificing quality of surveillance coverage.

Total 300 m
VIVOTEK has innovatively designed a series of cameras with embedded PoE extenders, which enable a surveillance system to be extended to up to 300 meters without the need for additional power supplies.

The uniquely-designed PoE extender embedded within these camera models allows for both PoE input and output and direct connection with other PoE network cameras without an additional power source. VIVOTEK IB8367-RT with embedded PoE extender revolutionize the establishment of long distance network surveillance systems by eliminating excess cables and power devices and significantly reducing the total cost of implementation.

VIVOTEK is proud to offer its customers a more streamlined network surveillance system, which significantly elevates business efficiency and reduces the total cost of ownership of their state of the art systems. The IB8367-RT is VIVOTEK's three new network cameras with embedded Poe extender. The embedded PoE extender design facilitates long-distance surveillance system implementation in factory areas, parking lots, crossroads and outdoor sidewalks.

What's in the box:

  • Vivotek IB8367-RT 2MP Day & Night Outdoor Bullet Network Camera
  • Sun Shield
  • Wall Mount Bracket
  • Alignment Sticker/Desiccant Bag
  • Waterproof Connector
  • Screw Pack
  • Quick Installation Guide
  • CD (User's Manual
  • Installation Wizard 2
  • ST7501 32-Channel Recording Software)
  • Vivotek 3 Year Warranty
