Review Summary
Multimedia SoC (System-on-Chip)
256MB
256MB
1/3.1" Progressive CMOS
1920x1080 (2MP)
Fixed-focal
f=2.8mm
f/2
Fixed iris
f=2.8mm
118 Degree (Horizontal)
65 Degree (Vertical)
140 Degree (Diagonal)
1/5 sec. to 1/32,000 sec.
WDR Enhanced
Yes
Yes
Built-in IR illuminators, effective up to 30 meters with Smart IR, 1x IR LED
0.08 lux @ F2.0 (Color)
<0.005 lux @ F2.0 (B/W)
0 lux with IR illumination on
90 Degree
180 Degree
ePTZ: 18x digital zoom (4x on IE plug-in, 4.5x built-in)
Seamless Recording to MicroSD/SDHC/SDXC card slot (128GB capacity supported) and recording to network-attached storage (NAS)
H.265, H.264, MJPEG
30 fps @ 1920x1080
2 video streams (Up to 7 configurable profiles)
59 dB
WDR Support
Adjustable resolution, quality and constant bit rate control, Smart Stream III
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
Illuminators: illuminators, anti-overexposure
Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR
Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR
Privacy mask
Scheduled profile settings
Pixel calculator
Live viewing for up to 10 clients
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, user access log, user account management
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
10 Base-T/100 Base-TX Ethernet (RJ-45)
Profile G, S, T supported
Path Extraction
Five-window video motion detection, people detection, vehicle detection, time filter
Motion Detection (Five-window video motion detection)
Camera tampering detection, Manual trigger, Motion detection, Periodical trigger, Recording notification, SD card life expectancy, System boot
Event notification via email, HTTP, FTP, SFTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, SFTP, NAS server, SD card
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Chrome 58.0 or above
Internet Explorer 10/11
VLC: 1.1.11 or above
White
RJ-45 cable connector for 10/100Mbps Network/PoE connection
System power and status indicator
IEEE 802.3af Class 0 PoE, DC 12V (Simultaneous Power Redundancy Supported)
PoE: Max. 6W/4W (IR on/off)
DC 12V: Max. 5.1W/3.4W (IR on/off)
EMC: CE (EN55032 Class A,EN55035), FCC (FCC Part 15 Subpart B Class A), ICES-003 issue 7,RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A)
Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 62471,IEC/EN 60950-22)
IA: BIS (IS 13252):BSMI
Environment: IK10 (IEC 62262), IP66 (IEC 60529)
Starting Temperature: -22 Degree F - 122 Degree F (-30 Degree C - 50 Degree C)
Working Temperature:
-22 Degree F - 131 Degree F (-30 Degree C - 55 Degree C) (IR off)
-22 Degree F - 122 Degree F (-30 Degree C - 50 Degree C) (IR on)
95% RH (non-condensing)
Taiwan
3.59 x 7.15" (91.1 x 181.5mm)
23.6 oz (671g)
4710469352591
| Models | SKU: VIVIB9369F2 MFR: IB9369-F2 $147.75 $197.00 Save:$49.25 (25%) Ships from Manufacturer Usually ships within 1-2 Days | SKU: UBVCG5PRO MFR: UVC-G5-PRO $379.00 Special Order Generally ships in 7-14 days, subject to availability | SKU: UBUG4BULLET3 MFR: UVC-G4-BULLET-3 $590.00 Special Order Generally ships in 7-14 days, subject to availability |
|---|---|---|---|
| Special Features | Day & Night Security, Network/IP, Outdoor & Night Vision | App Compatible, Day & Night Security, Network/IP, Outdoor & Night Vision | Day & Night Security, Network/IP, Outdoor & Night Vision |
| Resolution | FHD (1920x1080) | 4K UHD (3840x2160) | 2K (2048x1080) |
| Kit Style | Base | Base | Base |
| Storage Capacity | NA | NA | - |
| Sensor Type | CMOS | CMOS | CMOS |
| Chassis Type | Box/Bullet | Box/Bullet | Box/Bullet |
The IB9369 comes embedded with the Smart Motion Detection feature. The Smart Motion detection, with Human detection and tunable time filter, can eliminate the defects of traditional motion detection and facilitate the configuration at a surveillance site.
A key feature in the Smart Motion detection is the Human detection. Based on a human silhouette database and the rapid responses via an artificial neural network technology, the Smart engine instantly recognizes human appearances in a video surveillance area. Since humans are the objects of interest in the majority of video surveillance, the Human detection feature enables users to quickly configure his installation.
With Human detection, light changes or swaying vegetation, vehicles passing by, or animal activities in the scene are not taken as event triggers. Only human activities will trigger an event. This helps reduce false alarms and the time and efforts for a camera configuration.

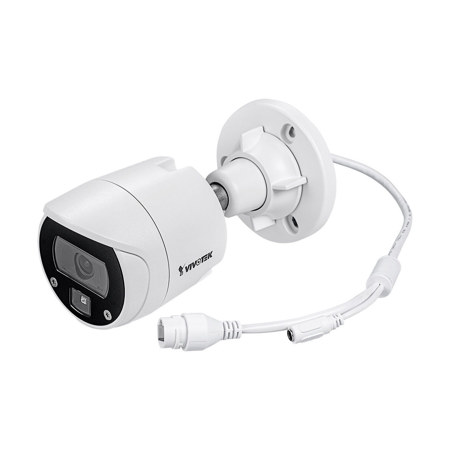

The series is an outdoor network camera capable of 2MP resolution at 30 fps. With the WDR technology, the series is capable of capturing the highest quality images in both low light and high contrast environments.
