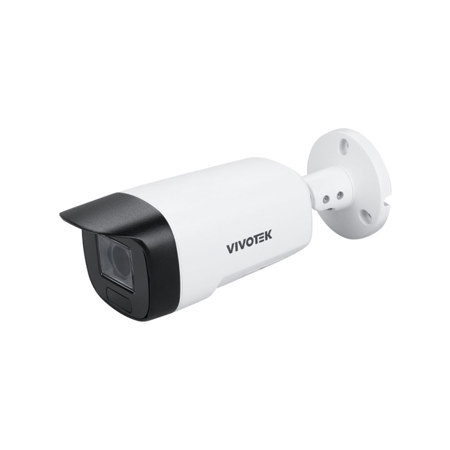

Vivotek V-Series IB9389-EHV-V3 5MP AI Outdoor Network Bullet Camera, White
See all Vivotek items
25% Off

Vivotek V-Series IB9389-EHV-V3 5MP AI Outdoor Network Bullet Camera with Night Vision, White

SKU: VIVIB9389EH MFR: IB9389-EHV-V3
Be the first to review this itemAsk a Question
$465.00
$620.00
Save: $155 (25%)
OR
$78/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture every detail with crisp 5MP video quality, ensuring clear identification day or night.
  • Experience superior night vision up to 40 meters, providing reliable security even in complete darkness.
  • Stay informed with smart motion detection, sending instant alerts directly to your device.
  • Enjoy flexible storage options, including local MicroSD and network-attached storage for your convenience.
  • Benefit from easy installation with Power over Ethernet, simplifying setup and reducing cable clutter.
  • Monitor your property remotely via wireless connectivity, accessing live feeds from anywhere.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Vivotek V-Series IB9389-EHV-V3 Specifications

System

System

Jump to...

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    8GB

  • RAM

    2GB

Camera

Jump to...

  • Image Sensor

    1/2.8" Progressive CMOS

  • Max. Resolution

    2560x1920 (5MP)

  • Lens Type

    Fixed-focal

  • Focal Length

    f = 2.8mm

  • Aperture

    f/2

  • Iris Type

    Fixed iris

  • Field of View

    103.4 Degree (Horizontal)
    75.3 Degree (Vertical)
    135.2 Degree (Diagonal)

  • Shutter Time

    1/5 sec. to 1/32,000 sec.

  • WDR Technology

    WDR Pro

  • Day/Night

    Yes

  • Removable IR-cut filter

    Yes

  • Illuminators

    Built-in IR illuminators, effective up to 40 meters with Smart IR, 4x IR LED

  • Minimum Illumination

    0.055 lux @ F2.0 (Color)
    0.005 lux @ F2.0 (B/W)
    0 lux with IR illumination on

  • Tilt Range

    80 Degree

  • Rotation Range

    350 Degree

  • Pan/Tilt/Zoom Functionalities

    ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

  • Storage

    Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)

  • Built-in Installation Aids

    Pixel calculator

Video

Jump to...

  • Compression

    H.265, H.264, MJPEG

  • Maximum Frame Rate

    30 fps @ 2560x1920 (5MP)

  • Maximum Streams

    3 video streams (Up to 8 configurable profiles)

  • Main Stream

    30fps @2560x1920,2048x1536,1920x1440,1600x1200,1280x960,800x600,640x480 (4:3)
    30fps @ 2560x1440, 1920x1080, 1600x904, 1360x768,1280x720, 640x360 (16:9)
    60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)

  • 2nd Stream

    30fps @ 1920x1440, 1600x1200, 1280x960, 800x600, 640x480 (4:3);
    30fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
    60 fps @ 1280x720, 640x360 (16:9)

  • 3rd Stream

    30fps @ 1280x960, 800x600, 640x480 (4:3);
    30 fps @ 1280x720, 640x360 (16:9);
    60 fps @ 1280x720, 640x360 (16:9)

  • S/N Ratio

    55 dB

  • Dynamic Range

    120 dB

  • Video Streaming

    Adjustable resolution, quality and constant bit rate control, Smart Stream III

  • Image Settings

    General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
    Illuminators: illuminators, anti-overexposure, VCA-based Smart IR III
    Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS (built-in gyro sensor), scene mode (auto, deblur)

  • Image Settings (Contd.)

    Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
    Focus: zoom, focus
    Privacy mask
    pixel calculator
    Scheduled profile settings

Audio

Jump to...

  • Audio Capability

    Two-way audio (Full duplex)

  • Compression

    G.711, G.726, MPEG-2 AAC-LC

  • Interface

    Built-in microphone
    External microphone Input
    External line output

  • Effective Range

    16.4' (5m)

Network

Jump to...

  • Users

    Live viewing for up to 10 clients

  • Security

    Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management, Built-in FIPS 140-2 Level 2 certified Trusted Platform Module (TPM)

  • Protocols

    802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP

  • Interface

    10 Base-T/100 Base-TX Ethernet (RJ-45)

  • ONVIF

    Profile G, S, T, M supported

AI Analytics

Jump to...

  • Compute Capability

    SoC with built-in hardware deep learning accelerator

  • Vision Object Analytics

    Object Detection: People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Bestshot, Path Extraction
    Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)
    Human face Bestshot, Re-Search Extraction

  • Application

    Deep Learning VCA (Smart Motion Detection, Smart VCA)
    Smart VCA - Group 1: Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, face detection)
    Smart VCA - Group 2: Unattended object detection, Missing object detection, Crowd detection

  • Application available with license

    Smart VCA - Group 3: Running detection, Parking Violation Detection, Restricted Zone Detection

  • RealSight Engine

    Smart IR III, Deblur, WDR, White Balance, Exposure Control

Solution Integration

Jump to...

  • VADP Package

    Trend Micro (Default, 3-year free trial)

  • Video Motion Detection

    Motion Detection (Five-window video motion detection)

Alarm and Event

Jump to...

  • Event Trigger

    Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot

  • Event Action

    Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card
    File upload via email, HTTP, FTP/SFTP, NAS server, SD card

System Requirements

Jump to...

  • Operating System

    Microsoft Windows 10/8/7
    Mac 10.12 (Chrome only)

  • Web Browser

    Chrome 58.0 or above

  • Other Players

    VLC: 1.1.11 or above

DORI (EN 62676-4 Standard)

Jump to...

  • Detection (25PPM/ 8PPF)

    198.1' (60.4m)

  • Observation (63PPM/ 19PPF)

    79.2' (24.1m)

  • Recognition (125PPM/ 38PPF)

    39.5' (12m)

  • Identification (250PPM/ 76PPF)

    19.6' (6m)

General

Jump to...

  • Color

    White

  • Connectors

    RJ-45 cable connector for 10/100 Mbps Network/PoE connection
    Audio line input
    Audio line output
    1x Digital input
    1x Digital output (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A)

  • LED Indicator

    System power and status indicator

  • Power Input

    IEEE 802.3af PoE Class 3

  • Power Consumption

    Max. 12.4W/ 9.6W (IR on/off)

  • Certifications

    EMC: CE (EN55032, EN55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A)
    IC (ICES-003 Issue 7, Class A) Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 62368-1, IEC/EN 62471)
    UKCA (BS EN IEC 62368-1) Environment: IK10 (IEC 62262), IP66, IP67 (IEC 60529)
    IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)

  • Operating Temperature

    Starting Temperature: -4 Degree F - 122 Degree F (-20 Degree C - 50 Degree C)
    Working Temperature: -31 Degree F - 140 Degree F (-35 Degree C - 60 Degree C) (IR off)
    -31 Degree F - 122 Degree F (-35 Degree C - 50 Degree C) (IR on)

  • Humidity

    98% RH (non-condensing)

  • Country of Origin

    Taiwan

  • Dimensions (Dia. x L)

    3.62 x 10.18" (92 x 258.5mm)

  • Weight

    2.27 lbs (1.03kg)

Other

Jump to...

  • UPC Code

    4710469355905

About Vivotek V-Series IB9389-EHV-V3

Great Image Performance Powered by RealSight Engine
RealSight Engine solve the problem of motion blur in images caused by the rapid movement of people captured previously. This ensures that all moving figure details are captured, automatically making the image clearer without the need to adjust the camera shutter speed.

AI Detection for Accurate Alarm
VIVOTEK Smart VCA offers precise object and attribute tracking, providing detailed video analytics for targeted monitoring and quick searches.

Enhanced Security with TPM 2.0
The TPM 2.0 chip provides hardware encryption to protect confidential and cryptographic data, prevent unauthorized access, and also ensures system integrity for long-term security.

Engineered for Endurance in Most Environments
IP67 & IK10 weather-resistant and vandal-proof, ensuring durability even in harsh outdoor conditions. Built to withstand extreme weather elements and protect against vandalism, providing reliable security in any environment.

Build for Easy Installation
This camera is designed for quick and easy installation, featuring a T10 screw mechanism throughout its body. This design enables installers to efficiently disassemble and complete the installation using only a screwdriver, significantly reducing the complexity and time required for installation.

Complete Video Security with VIVOTEK Solution
Access and manage all devices and accounts through a single platform, providing accurate event monitoring and intuitive security system operation video investigation no matter where you are.

Vivotek V-Series IB9389-EHV-V3 Features

  • AI-powered Smart Motion Detection and Smart VCA
  • RealSight Engine for unparalleled visibility
  • Built-in IRs up to 40M
  • IP66/IP67/IK10 Protection
  • Signed Firmware, Secure Boot, TPM 2.0

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture every detail with crisp 5MP video quality, ensuring clear identification day or night.
  • Experience superior night vision up to 40 meters, providing reliable security even in complete darkness.
  • Stay informed with smart motion detection, sending instant alerts directly to your device.
  • Enjoy flexible storage options, including local MicroSD and network-attached storage for your convenience.
  • Benefit from easy installation with Power over Ethernet, simplifying setup and reducing cable clutter.
  • Monitor your property remotely via wireless connectivity, accessing live feeds from anywhere.

What's in the box:

  • Vivotek V-Series IB9389-EHV-V3 5MP AI Outdoor Network Bullet Camera
  • Alignment Sticker
  • Screw Set
  • Cable Gland
  • User Manual
  • Vivotek 3 Year Limited Warranty
