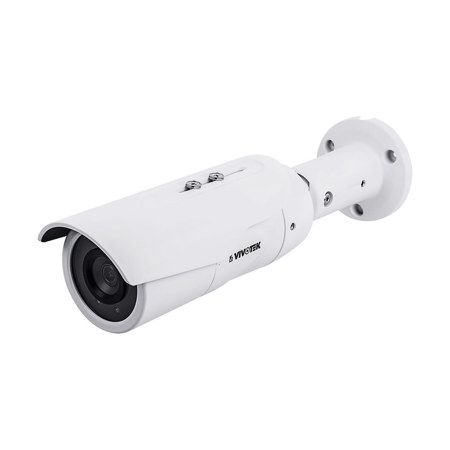

Vivotek V-Series IB9389-EH-V2 5MP AI Outdoor Network Bullet Camera, White
See all Vivotek items
25% Off

Vivotek V-Series IB9389-EH-V2 5MP AI Outdoor Network Bullet Camera with Night Vision, White

SKU: VIVIB9389EHV MFR: IB9389-EH-V2
Be the first to review this itemAsk a Question
$316.50
$422.00
Save: $105.5 (25%)
OR
$53/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture crystal-clear details with 5MP video quality, ensuring you never miss a moment.
  • Experience superior night vision up to 30 meters, keeping your property secure 24/7.
  • Benefit from advanced motion detection that intelligently identifies people and vehicles.
  • Enjoy flexible storage options with seamless recording to MicroSD/SDHC/SDXC cards and NAS.
  • Easily install and integrate this robust outdoor camera into your existing security system.
  • Stay connected with reliable wireless connectivity, providing peace of mind from anywhere.
See More Product Details
Temporarily On Backorder?Expected Availability: 04/2026Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Vivotek V-Series IB9389-EH-V2 Specifications

System

System

Jump to...

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    8GB

  • RAM

    1GB

Camera

Jump to...

  • Image Sensor

    1/2.7" Progressive CMOS

  • Max. Resolution

    2560x1920 (5MP)

  • Lens Type

    Fixed-focal

  • Focal Length

    f = 3.6mm

  • Aperture

    f/2

  • Iris Type

    Fixed iris

  • Field of View

    76 Degree (Horizontal)
    56 Degree (Vertical)
    100 Degree (Diagonal)

  • Shutter Time

    1/5 sec. to 1/32,000 sec.

  • WDR Technology

    WDR Pro

  • Day/Night

    Yes

  • Removable IR-cut filter

    Yes

  • Illuminators

    Built-in IR illuminators, effective up to 30 meters with 4x Smart IR LED

  • Minimum Illumination

    0.06 lux @ F2.0 (Color)
    0.01 lux @ F2.0 (B/W)
    0 lux with IR illumination on

  • Tilt Range

    90 Degree

  • Rotation Range

    180 Degree

  • Pan/Tilt/Zoom Functionalities

    ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

  • Storage

    Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)

Video

Jump to...

  • Compression

    H.265, H.264, MJPEG

  • Maximum Frame Rate

    30 fps @ 2560x1920 (5MP) (WDR on)
    30 fps @ 2560 x1440 (4MP) (WDR on)
    60 fps @ 1920x1080 (2MP) (WDR off)
    encode mode: mode 0 for all

  • Maximum Streams

    3 video streams (Up to 8 configurable profiles)

  • S/N Ratio

    > 55dB

  • Dynamic Range

    120 dB

  • Video Streaming

    Adjustable resolution, quality and constant bit rate control, Smart Stream III

  • Image Settings

    General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
    Illuminators: illuminators, anti-overexposure
    Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS (built-in gyro sensor), scene mode (auto, deblur)

  • Image Settings (Contd.)

    Exposure: BLC, HLC, exposure control(exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
    Privacy mask
    Scheduled profile settings

Network

Jump to...

  • Users

    Live viewing for up to 10 clients

  • Security

    Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management

  • Protocols

    802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP

  • Interface

    10 Base-T/100 Base-TX Ethernet (RJ-45)

  • ONVIF

    Profile G, S, T supported

AI Analytics

Jump to...

  • Compute Capability

    SoC with built-in hardware deep learning accelerator

  • Vision Object Analytics

    Object Detection
    People, Vehicle (4-wheeled), Human / Vehicle Bestshot, Path Extraction

  • Application

    Deep Learning VCA (Smart Motion Detection, Smart VCA)
    Smart VCA - Group 1: Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, face detection)
    Smart VCA - Group 2: Unattended object detection, Missing object detection, Crowd detection

  • Application available with license

    Smart VCA - Group 3: Running detection, Parking Violation Detection, Restricted Zone Detection

  • AI-powered Image Enhancement

    Smart IR III

Solution Integration

Jump to...

  • VADP Package

    Trend Micro IoT Security (3-year free trial)

  • Video Motion Detection

    Motion Detection (Five-window video motion detection)

Alarm and Event

Jump to...

  • Event Trigger

    Camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot

  • Event Action

    Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card
    File upload via email, HTTP, FTP/SFTP, NAS server, SD card

System Requirements

Jump to...

  • Operating System

    Microsoft Windows 10/8/7
    Mac 10.12 (Chrome only)

  • Web Browser

    Chrome 58.0 or above
    Internet Explorer 11

  • Other Players

    VLC: 1.1.11 or above

DORI (EN 62676-4 Standard)

Jump to...

  • Detection (25PPM/ 8PPF)

    260.5' (79.4m)

  • Observation (63PPM/ 19PPF)

    103.4' (31.5m)

  • Recognition (125PPM/ 38PPF)

    52.1' (15.9m)

  • Identification (250PPM/ 76PPF)

    26' (7.9m)

General

Jump to...

  • Color

    White

  • Connectors

    RJ-45 cable connector for Network 10/100 Mbps PoE connection

  • LED Indicator

    System power and status indicator

  • Power Input

    IEEE 802.3af PoE Class 0

  • Power Consumption

    Max: 11 W (IR on)
    Max: 8 W (IR off)
    Max: 11W (Heater on)
    Max: 8.6 W (Heater off)

  • Certifications

    EMC: CE (EN55032, EN55024 Class A, EN50121-4 ), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A)
    Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
    Environment: IK10 (IEC 62262), IP66 (IEC 60529)
    IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)

  • Operating Temperature

    Starting Temperature: -13 Degree F - 122 Degree F (-30 Degree C - 50 Degree C)
    Working Temperature(IR on): -40 Degree F - 140 Degree F (-40 Degree C - 60 Degree C) (IR off)
    -40 Degree F - 122 Degree F (-40 Degree C - 50 Degree C) (IR on)

  • Humidity

    98% RH (non-condensing)

  • Country of Origin

    Taiwan

  • Dimensions (Dia. x L)

    3.39 x 11.81" (86 x 300mm)

  • Weight

    2.20 lbs (1kg)

Other

Jump to...

  • UPC Code

    4710469352577

About Vivotek V-Series IB9389-EH-V2

Lightning-fast Search Speed
Deep Search fully utilizes the data captured by Vision Object Analytics to bring precise and immediate search results. Experience the power of Deep Search in VIVOTEK's network video recording, VAST Security Station, and VORTEX VSaaS.

The IB9389 is an outdoor bullet network camera capable of 2560 x 1920 at 30 fps. With the VIVOTEK WDR Pro technology, the camera series is capable of capturing the highest quality images in both low light and high contrast environments.

The onboard IR can provide illumination in total darkness. With the Smart IR feature, the firmware automatically adjusts the IR intensity for objects that came too close, in order to avoid over-exposure.

The camera supports WDR function at the effectiveness of up to 120dB. This model supports local video storage on the MicroSD cards if network service should be interrupted. The camera also comes with configurable motion detection and tampering detection with up to 5 privacy mask areas.

Vivotek V-Series IB9389-EH-V2 Features

  • With IR Illuminators, Effective up to 30 Meters
  • Smart IR Technology to Avoid Overexposure
  • Vandal-proof IK10, Weather-proof IP66 Protection
  • Cyber Protection via Trend Micro IoT Security
  • 3.6mm Fixed Lens

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture crystal-clear details with 5MP video quality, ensuring you never miss a moment.
  • Experience superior night vision up to 30 meters, keeping your property secure 24/7.
  • Benefit from advanced motion detection that intelligently identifies people and vehicles.
  • Enjoy flexible storage options with seamless recording to MicroSD/SDHC/SDXC cards and NAS.
  • Easily install and integrate this robust outdoor camera into your existing security system.
  • Stay connected with reliable wireless connectivity, providing peace of mind from anywhere.

What's in the box:

  • Vivotek V-Series IB9389-EH-V2 5MP AI Outdoor Network Bullet Camera
  • Alignment Sticker
  • Screw Set
  • User Manual
  • Vivotek 3 Year Limited Warranty
