Vivotek IP8365EH Specifications

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    256MB

  • RAM

    384MB

  • Image Sensor

    1/2.8" Progressive CMOS

  • Maximum Resolution

    1920 x 1080 (2MP)

  • Lens Type

    Vari-focal, Remote Focus

  • Focal Length

    f = 3 to 9mm

  • Aperture

    F1.2 to F2.3

  • Auto-iris

    P-iris

  • Field of View

    Horizontal: 39 to 89 deg.
    Vertical: 22 to 49 deg.
    Diagonal: 44 to 103 deg.

  • Shutter Time

    1/5 to 1/10000sec

  • WDR Technology

    WDR Pro

  • Day & Night

    Removable IR-cut filter for day & night function
    Smart IR Technology to avoid overexposure

  • Minimum Illumination

    0.39 Lux at F1.2, 50 IRE (Color), 0.001 Lux at F1.2, 50 IRE (B/W)

  • PTZ

    ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)

  • IR Illuminators

    Built-in IR illuminators, effective up to 30 meters, 4x IR LED, with Smart IR Technology

  • On-board Storage

    SD/SDHC/SDXC card slot

  • Video: Compression

    H.264, MJPEG

  • Video: Maximum Frame Rate

    In both compression modes: 30fps at 1920x1080

  • Video: Maximum Streams

    2 simultaneous streams

  • Video: S/N Ratio

    62dB

  • Video: Dynamic Range

    100dB

  • Video: Streaming

    Adjustable resolution, quality and bitrate

  • Video: Image Settings

    Time stamp, text overlay, flip & mirror
    Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings
    3D noise reduction, EIS, video rotation

  • Audio: Capability

    Two-way audio (full duplex)

  • Audio: Compression

    AAC, G.711, G.726

  • Audio: Interface

    External microphone input, Audio output

  • Network: Users

    Live viewing for up to 10 clients

  • Network: Protocols

    IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP

  • Network: ONVIF

    Supported

  • Network: Interface

    10 Base-T/100 BaseTX Ethernet (RJ-45)

  • Video Motion Detection

    Triple-window video motion detection

  • Alarm Triggers

    Video motion detection, Manual trigger, Digital input, Periodical trigger, System boot, Recording notification, Camera tampering detection

  • Alarm Events

    Event notification using digital output, HTTP, SMTP, FTP and NAS server
    File upload via HTTP, SMTP, FTP and NAS server

  • Smart Focus System

    Remote focus

  • Connectors

    RJ-45 for Network/PoE connection
    Audio input/output
    AV output
    AC 24V power input
    DC 12V power input
    Digital input
    Digital output

  • LED Indicator

    System power and status indicator

  • Power Input

    DC12V/AC24V
    IEEE 802.3af PoE

  • Power Consumption

    DC Max. 30W (Heater on) 8W (Heater off)
    AC Max. 30W (Heater on) 8.8W (Heater off)
    PoE Max. 11W

  • Casing

    Weather-proof IP67-rated housing

  • Safety Certifications

    CE, LVD, FCC Class A, VCCI, C-Tick, UL

  • Operating Temperature

    Starting: -40 to 50 deg. C / -40 to 122 deg. F
    PoE: -10 to 50 deg. C / 14 to 122 deg. F
    Working: -50 to 50 deg. C / -58 to 122 deg. F

  • System Requirements: Operating System

    Microsoft Windows 8/7/Vista/XP/2000

  • System Requirements: Browser

    Mozilla Firefox 7 to 10 (Streaming only), Internet Explorer 7/8/9/10

  • System Requirements: Other Players

    VLC: 1.1.11 or above, Quicktime: 7 or above

  • Dimensions

    Dia. 3.58 x 8.7" / 91 x 221mm

  • Weight

    1314g / 46.35oz (Body only)
    1911g / 67.41oz (with stand and sunshield)

  • UPC Code

    4712123673486

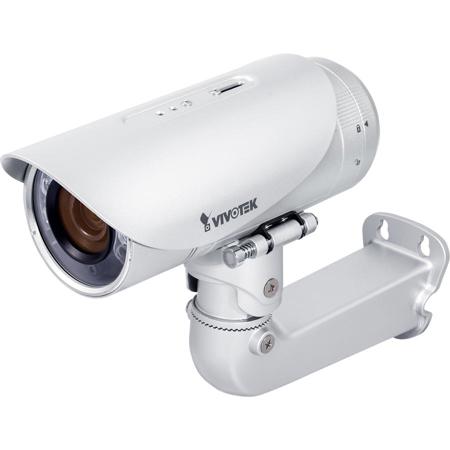

About Vivotek IP8365EH

VIVOTEK IP8365H/65EH are professional outdoor bullet network cameras offering up to 60 fps at 2-Megapixel resolution with superb image quality. Featuring the Wide Dynamic Range Technology WDR Pro, it provides improved visibility in the extremely dark & light environment. Combined with 3D Noise Reduction Technology, which enables the IP8365H/65EH to capture clear, polished video under low-light conditions and reduce bandwidth from sensor noise, users can identify an increased level of image details in pretty bright as well as dark environments.

Additionally, as a professional day/night camera, IP8365H/65EH adopt a Smart IR technology which prevents overexposure and provides noise reduction to adjust the IR lighting intensity instantaneously based on the changes of light in the ambient environment. To provide top-notch image quality, IP8365H/65EH also come with a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field as well as image quality.

Furthermore, for installers, properly adjusting the focus of a megapixel network camera can be difficult due to the level of image detail. Therefore, IP8365H/65EH are also designed with VIVOTEK's Smart Focus System to make installation and adjustment easier by using remote focus and zoom adjustment. The camera's IP67-rated housing is designed to protect the camera body from being immersed in the water, even against the immersion at the depth of at least 1m. Additionally, the wide temperature range further enhances the IP8365EH performance and reliability in extremely cold and hot weather.

Vivotek IP8365EH Features

  • 2-Megapixel CMOS Sensor
  • 30 fps at 1920x1080; 60 fps at 1920x1080 (one-stream mode only)
  • Motorized P-iris Lens
  • Removable IR-cut Filter for Day & Night Function
  • Built-in IR Illuminators, Effective up to 30 Meters
  • Smart IR Technology to Avoid Overexposure
  • 3D Noise Reduction for Low-light Conditions
  • WDR Pro (100dB) to Provide Improved Visibility in Extremely Bright or Dark Environments
  • Smart Focus System for Remote and Precise Focus Adjustment
  • Two-way Audio
  • Weather-proof IP67-rated Housing
  • Video Rotation for Corridor View
  • EIS (Electronic Image Stabilization) to Control Image Stability
  • Extreme Weather Support (IP8365EH)

Key Features

  • Two-way Audio

What's in the box:

  • Vivotek IP8365EH 2MP Day/Night Outdoor Bullet Network Camera
  • Sun Shield
  • Wall Mount Bracket
  • Alignment Sticker
  • Waterproof RJ45 Ethernet Enclosure
  • Desiccant Bag
  • Waterproof Connector
  • CD (User's manual / Quick Installation Guide / Installation Wizard 2 / ST7501 32-Channel Recording Software)
  • Vivotek 3 Year Warranty
