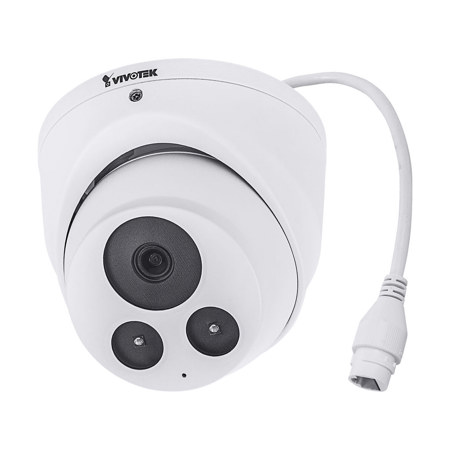

Vivotek C-Series IT9380-HF2 5MP Outdoor Network Turret Camera with Night Vision
See all Vivotek items
25% Off

Vivotek C-Series IT9380-HF2 5MP Outdoor Network Turret Camera with Night Vision, White

SKU: VIVIT9380HF2 MFR: IT9380-HF2
Be the first to review this itemAsk a Question
$157.50
$210.00
Save: $52.5 (25%)
Earn VIP Reward Points

Key Features

  • Experience crystal-clear 5MP resolution, ensuring every detail is captured for superior home security.
  • Benefit from advanced motion detection, instantly alerting you to any unusual activity around your property.
  • Enjoy reliable night vision up to 30 meters, providing peace of mind even in complete darkness.
  • Access your live camera feed remotely from anywhere, keeping an eye on your home with ease.
  • Rest assured with its weatherproof design, built to withstand various outdoor conditions for continuous protection.
  • Easily install this security camera yourself, making setup quick and hassle-free for immediate use.
See More Product Details
Temporarily On Backorder?Expected Availability: 04/2026Request assistance or get notified
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Vivotek C-Series IT9380-HF2 Specifications

System

System

Jump to...

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    128MB

  • RAM

    512MB

Camera

Jump to...

  • Image Sensor

    1/2.7" Progressive CMOS

  • Max. Resolution

    2560x1920 (5MP)

  • Lens Type

    Fixed-focal

  • Focal Length

    f = 2.8mm

  • Aperture

    f/2

  • Iris Type

    Fixed iris

  • Field of View

    103 Degree (Horizontal)
    76 Degree (Vertical)
    134 Degree (Diagonal)

  • Shutter Time

    1/5 sec. to 1/32,000 sec.

  • WDR Technology

    WDR Pro

  • Day/Night

    Yes

  • Removable IR-cut filter

    Yes

  • Illuminators

    Built-in IR illuminators, effective up to 30 meters with Smart IR, 2x IR LED

  • Minimum Illumination

    0.03 lux @ F2.0 (Color)
    <0.005 lux @ F2.0 (B/W)
    0 lux with IR illumination on

  • Pan Range

    360 Degree

  • Tilt Range

    70 Degree

  • Rotation Range

    360 Degree

  • Pan/Tilt/Zoom Functionalities

    ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

  • Storage

    Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)

Video

Jump to...

  • Compression

    H.265, H.264, MJPEG

  • Maximum Frame Rate

    20 fps @ 2560x1920

  • Maximum Streams

    3 video streams (Up to 8 configurable profiles)

  • S/N Ratio

    65 dB

  • Dynamic Range

    120 dB

  • Video Streaming

    Adjustable resolution, quality and constant bit rate control, Smart Stream III

  • Image Settings

    General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
    Illuminators: illuminators, anti-overexposure
    Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR
    Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR
    Privacy mask
    Scheduled profile settings

Audio

Jump to...

  • Audio Capability

    One-way Audio

  • Compression

    G.711, G.726

  • Interface

    Built-in microphone

  • Effective Range

    16.4' (5m)

Network

Jump to...

  • Users

    Live viewing for up to 10 clients

  • Security

    Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management

  • Protocols

    802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP

  • Interface

    10 Base-T/100 Base-TX Ethernet (RJ-45)

  • ONVIF

    Profile G, S, T supported

Solution Integration

Jump to...

  • Video Motion Detection

    Motion Detection (Five-window video motion detection)

Alarm and Event

Jump to...

  • Event Trigger

    Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot

  • Event Action

    Event notification via email, HTTP, FTP, NAS server, SD card, push notification
    File upload via email, HTTP, FTP, NAS server, SD card

System Requirements

Jump to...

  • Operating System

    Microsoft Windows 10/8/7
    Mac 10.12 (Chrome only)

  • Web Browser

    Chrome 58.0 or above
    Internet Explorer 10/11

  • Other Players

    VLC: 1.1.11 or above

General

Jump to...

  • Color

    White

  • Connectors

    RJ-45 cable connector for 10/100 Mbps Network/PoE connection

  • Power Input

    IEEE 802.3af PoE Class 2

  • Power Consumption

    Max. 6 W/3.31 W (IR on/off)

  • Certifications

    EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B)
    Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
    Environment: IK10 (IEC 62262), IP66 (IEC 60529)
    IA: BIS (IS 13252)

  • Operating Temperature

    Starting Temperature: 14 Degree F - 140 Degree F (-10 Degree C - 60 Degree C)
    Working Temperature: -4 Degree F - 140 Degree F (-20 Degree C - 60 Degree C)

  • Humidity

    90%

  • Country of Origin

    Taiwan

  • Dimensions (Dia. x L)

    4.13 x 3.25" (105 x 82.5mm)

  • Weight

    16.76 oz (475g)

Other

Jump to...

  • UPC Code

    4710469351341

About Vivotek C-Series IT9380-HF2

The IT9380, and is an outdoor turret network camera capable of 2560 x 1920 resolution at 20 fps. At the 5MP resolution and with the WDR function enabled, the frame rate is slightly reduced to 20fps. The firmware comes with another 4MP resolution mode with a 30fps frame rate. With the most updated VIVOTEK WDR Pro technology, the camera series is capable of capturing the highest quality images in both low light and high contrast environments.

The onboard IR can provide illumination in total darkness. With the Smart IR feature, the firmware automatically adjusts the IR intensity for objects that came too close, in order to avoid over-exposure.

The cameras support WDR function at the effectiveness of up to 120dB. These models support local video storage on the MicroSD cards if network service should be interrupted. The cameras also come with configurable motion detection and tampering detection with up to 5 privacy mask areas.

Vivotek C-Series IT9380-HF2 Features

  • WDR Pro for Unparalleled Visibility
  • Built-in IR Illuminators, Effective up to 30 Meters
  • Cyber Protection via Trend Micro IoT Security
  • Weather-proof IP66 & Vandal-proof IK10 Housing
  • MicroSD/SDHC/SDXC Card for On-board Storage

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience crystal-clear 5MP resolution, ensuring every detail is captured for superior home security.
  • Benefit from advanced motion detection, instantly alerting you to any unusual activity around your property.
  • Enjoy reliable night vision up to 30 meters, providing peace of mind even in complete darkness.
  • Access your live camera feed remotely from anywhere, keeping an eye on your home with ease.
  • Rest assured with its weatherproof design, built to withstand various outdoor conditions for continuous protection.
  • Easily install this security camera yourself, making setup quick and hassle-free for immediate use.

What's in the box:

  • Vivotek C-Series IT9380-HF2 5MP Outdoor Network Turret Camera
  • Alignment Sticker
  • Screw Set
  • Cable Gland
  • User Manual
  • Vivotek 3 Year Limited Warranty
