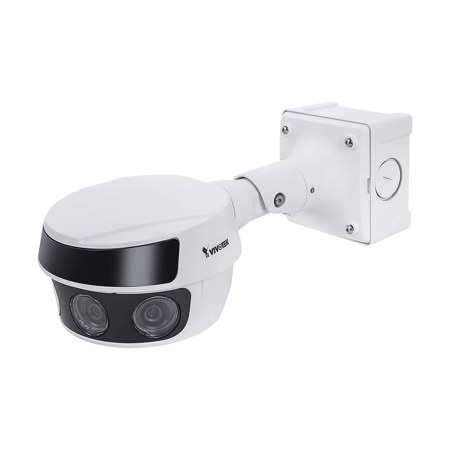

Vivotek V-Series MS9321-EHV-V2 18MP AI Outdoor Multi-Sensor Panoramic Camera
See all Vivotek items
25% Off

Vivotek V-Series MS9321-EHV-V2 18MP AI Outdoor Multi-Sensor Panoramic Camera with Night Vision, White

SKU: VIVMS9321EHV MFR: MS9321-EHV-V2
Be the first to review this itemAsk a Question
$2,438.25
$3,251.00
Save: $812.75 (25%)
OR
$204/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture every detail with stunning 18MP video quality, ensuring clear surveillance footage day and night.
  • Experience superior night vision up to 30 meters, providing reliable security even in complete darkness.
  • Stay informed with smart motion detection that accurately identifies people and vehicles, reducing false alarms.
  • Access your security cameras remotely from anywhere, keeping an eye on your property with ease and convenience.
  • Enjoy straightforward installation with this outdoor camera, designed for hassle-free setup and immediate protection.
  • Secure your footage with flexible storage options, including local SD card and network-attached storage support.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Vivotek V-Series MS9321-EHV-V2 Specifications

System

System

Jump to...

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    8GB

  • RAM

    8GB

Camera

Jump to...

  • Image Sensor

    1/2.8" Progressive CMOS

  • Max. Resolution

    6912x2624 (18MP)

  • Lens Type

    Fixed-focal

  • Focal Length

    f = 3.5mm

  • Aperture

    f/2

  • Iris Type

    Fixed iris

  • Field of View

    180 Degree (Horizontal)
    62.5 Degree (Vertical)
    180 Degree (Diagonal)

  • Shutter Time

    1/30 sec. to 1/32,000 sec.

  • WDR Technology

    WDR Pro

  • Day/Night

    Yes

  • Removable IR-cut filter

    Yes

  • Illuminators

    Built-in IR Illuminators up to 30 meters with Smart IR , 4x IR LED

  • Minimum Illumination

    0.055 lux @ F2.0 (Color)
    0.005 lux @ F2.0 (B/W)
    0 lux with IR illumination on

  • Pan Range

    +/-90 Degree

  • Tilt Range

    90 Degree

  • Storage

    Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)

  • Built-in Installation Aids

    Pixel calculator

Video

Jump to...

  • Compression

    H.265, H.264, MJPEG

  • Maximum Frame Rate

    30 fps @ 6912x2624 (Deep Learning VCA OFF)
    20 fps @ 6912x2624 (Deep Learning VCA ON)

  • Maximum Streams

    4 video streams (Up to 9 configurable profiles)

  • S/N Ratio

    54 dB

  • Dynamic Range

    120 dB

  • Video Streaming

    Adjustable resolution, quality and constrained bit rate control, Smart Stream III

  • Image Settings

    General settings: video title and time stamp overlay, day/night settings
    Illuminators: illuminators, anti-overexposure
    Image settings: white balance (auto, fixed current, manual, panorama, snow - auto, snow-panorama), image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, highlight mask, 3DNR), scene mode (auto, deblur)

  • Image Settings (Contd.)

    Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR
    Privacy mask
    Pixel calculator
    Lens alignment (auto alignment)
    Scheduled profile settings

Audio

Jump to...

  • Audio Capability

    Two-way audio (Full duplex)

  • Compression

    G.711, G.726, MPEG-2 AAC-LC

  • Interface

    Built-in microphone
    External microphone Input
    External line output

  • Effective Range

    16.4' (5m) (internal mic)

Network

Jump to...

  • Users

    Live viewing for up to 10 clients

  • Security

    Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), User access log, User account management

  • Protocols

    802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP

  • Interface

    10 Base-T/100 BaseTX/1000 Base-T Ethernet (RJ-45)

  • ONVIF

    Profile G, S, T supported

AI Analytics

Jump to...

  • Compute Capability

    SoC with built-in hardware deep learning accelerator

  • Vision Object Analytics

    Object Detection
    People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Bestshot, Path Extraction
    Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)
    Human face Bestshot, Re-Search Extraction

  • Application

    Deep Learning VCA (Smart Motion Detection, Smart VCA)
    Smart VCA - Group 1: Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, face detection)
    Smart VCA - Group 2: Unattended object detection, Missing object detection, Crowd detection

  • Application available with license

    Smart VCA - Group 3: Running detection, Parking Violation Detection, Restricted Zone Detection

Solution Integration

Jump to...

  • VADP Package

    Trend Micro IoT Security (3-year free trial)

Alarm and Event

Jump to...

  • Event Trigger

    Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot, video loss, video restoration

  • Event Action

    Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card, push notification
    File upload via email, HTTP, FTP/SFTP, NAS server, SD card

System Requirements

Jump to...

  • Operating System

    Microsoft Windows 10/8/7
    Mac 10.12 (Chrome only)

  • Web Browser

    Chrome 58.0 or above
    Internet Explorer 10/11

  • Other Players

    VLC: 1.1.11 or above

DORI (EN 62676-4 Standard)

Jump to...

  • Detection (25PPM/ 8PPF)

    240.5' (73.3m)

  • Observation (63PPM/ 19PPF)

    96.2' (29.3m)

  • Recognition (125PPM/ 38PPF)

    48.1' (14.7m)

  • Identification (250PPM/ 76PPF)

    24' (7.3m)

General

Jump to...

  • Color

    White

  • Connectors

    RJ-45 cable connector for 10/100/1000 Mbps PoE network connection
    Audio input
    Audio output
    Digital input
    Digital output (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A)
    AC 24V power input
    Micro USB

  • LED Indicator

    System power and status indicator

  • Power Input

    AC 24V, IEEE 802.3at PoE Class 4 (Simultaneous Power Redundancy Supported)

  • Power Consumption

    PoE: Max. 18.81 W
    AC 24V: Max. 26.4 W

  • Certifications

    EMC: CE (EN 55032 Class A, EN 55035), UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017 +A11: 2020), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), ICES-003 Issue 7
    Safety: UL (UL 62368-1), CB (IEC/EN 62368-1 including annex Y, IEC/EN 62471)
    Environment: IK10 (IEC 60529), IP66 (IEC 60529), IP6K9K (ISO 20653)
    IA: BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1)

  • Operating Temperature

    Starting Temperature: -22 Degree F - 131 Degree F (-30 Degree C - 55 Degree C)
    Working Temperature: -40 Degree F - 131 Degree F (-40 Degree C - 55 Degree C) (IR off)
    -40 Degree F - 122 Degree F (-40 Degree C - 50 Degree C) (IR on)

  • Humidity

    98% RH (non-condensing)

  • Country of Origin

    Taiwan

  • Dimensions

    12.13 x 6.57 x 5.12" (308 x 167 x 130mm)

  • Weight

    5.29 lbs (2.4kg)

Other

Jump to...

  • UPC Code

    4710469354816

About Vivotek V-Series MS9321-EHV-V2

High-Quality Surveillance
Featuring 4 x 5MP CMOS Sensors at 30fps at all resolutions, the multiple sensor network camera can monitor full 180 Degree horizontal views and deliver the highest-quality comprehensive coverage, making it an ideal outdoor surveillance solution with excellent image details.

Video Alignment to Have a Seamless Picture
The MS9321-EHV-V2 has the Video Alignment feature that allows you to adjust the positioning and image quality of each sensor, enabling users to view a seamless picture, with no repetition.

Unparalleled Visibility in High Contrast Environments
Featuring WDR Pro (120dB), the MS9321-EHV-V2 captures both the dark and bright areas of an image and combines them to create a highly realistic representation of the original scene.

Vivotek V-Series MS9321-EHV-V2 Features

  • Built-in IR Illuminators up to 30 Meters
  • Signed Firmware and Secure Boot
  • AI-powered Smart Motion Detection and Smart VCA
  • Cyber Protection via Trend Micro IoT Security
  • Weather-proof IP66 & Vandal-proof IK10 Housing

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture every detail with stunning 18MP video quality, ensuring clear surveillance footage day and night.
  • Experience superior night vision up to 30 meters, providing reliable security even in complete darkness.
  • Stay informed with smart motion detection that accurately identifies people and vehicles, reducing false alarms.
  • Access your security cameras remotely from anywhere, keeping an eye on your property with ease and convenience.
  • Enjoy straightforward installation with this outdoor camera, designed for hassle-free setup and immediate protection.
  • Secure your footage with flexible storage options, including local SD card and network-attached storage support.

What's in the box:

  • Vivotek V-Series MS9321-EHV-V2 18MP AI Outdoor Multi-Sensor Panoramic Camera
  • Alignment Sticker
  • Screw Set
  • Junction Box
  • User Manual
  • Vivotek 3 Year Limited Warranty
