Review Summary
Multimedia SoC (System-on-Chip)
8GB
4GB
1/2.7" Progressive CMOS
4864x1632 (8MP)
Fixed-focal
f = 2.8mm
f/1.2
Fixed iris
180 Degree (Horizontal)
50 Degree (Vertical)
180 Degree (Diagonal)
1/30 sec. to 1/32,000 sec.
WDR Pro
Yes
Yes
Built-in IR illuminators up to 20 meters with Smart IR , 8x IR LED
0.018 lux @ F1.2 (Color)
0.01 lux @ F1.2 (B/W)
0 lux with IR illumination on
20 Degree
Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
Pixel calculator
H.265, H.264, MJPEG
30 fps @ 4864x1632
3 video streams (Up to 8 configurable profiles)
57.9 dB
120dB
Adjustable resolution, quality and constrained bit rate control, Smart Stream III
General settings: video title and time stamp overlay, day/night settings
Illuminators: illuminators, anti-overexposure
Image settings: white balance (auto, panorama, snow), image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, scene mode (auto, deblur)
Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
Privacy mask
Pixel calculator
Lens alignment
Scheduled profile settings
One-way Audio
G.711, G.726, MPEG-2 AAC-LC
Built-in microphone
16.4' (5m)
Live viewing for up to 10 clients
Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
10 Base-T/100 BaseTX Ethernet (RJ-45)
Profile G, S, T supported
SoC with built-in hardware deep learning accelerator
Object Detection
People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Bestshot, Path Extraction
Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)
Human face Bestshot, Re-Search Extraction
Deep Learning VCA (Smart Motion Detection, Smart VCA)
Smart VCA - Group 1: Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, face detection)
Smart VCA - Group 2: Unattended object detection, Missing object detection, Crowd detection
Smart VCA - Group 3: Running detection, Parking Violation Detection, Restricted Zone Detection
Stratocast, Trend Micro IoT Security (3-year free trial)
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event notification via email, camera link, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Chrome 58.0 or above
Internet Explorer 10/11
VLC: 1.1.11 or above
190.6' (58.1m)
76.1' (23.2m)
38.1' (11.6m)
18.7' (5.7m)
White
RJ-45 cable connector for 10/100 Mbps Network/PoE connection
System power and status indicator
IEEE 802.3at PoE Class 4
PoE: Max. 20 W/13.5W (IR on/off)
EMC: CE (EN 55032/EN 55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A)
Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD (IEC/EN 62368-1), UKCA (BS EN 62368-1)
Environment: IK10 (IEC 62262), IP66(IEC 60529), IA: BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1)
Starting Temperature: -22 Degree F - 131 Degree F (-30 Degree C - 55 Degree C)
Working Temperature: -40 Degree F - 131 Degree F (-40 Degree C - 55 Degree C) (IR off)
-40 Degree F - 122 Degree F (-40 Degree C - 50 Degree C) (IR on)
98% RH (non-condensing)
Taiwan
6.50 x 4.41 x 4.69" (165 x 112 x 119mm)
2.65 lbs (1.2kg)
4710469353994

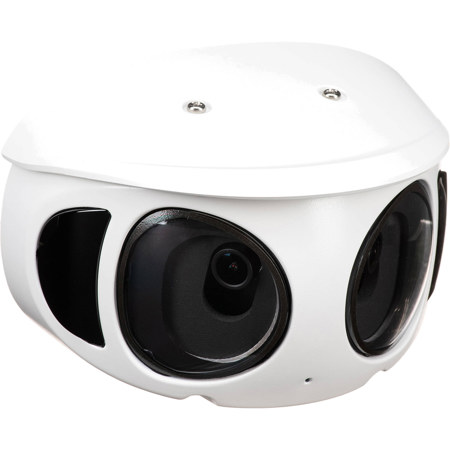

VIVOTEK's MS9390-EHV-v2 is the latest and most efficient panoramic network camera offered in surveillance. Through the use of two wide angle lenses, electronic image stitching, and high-resolution sensors, the 8MP 180 Degree MS9390-EHV-v2 is in a new class all by itself. With its unique dual-sensor design, the MS9390-EHV-v2 is able to maintain a higher vertical FOV than most traditional multi-sensor panoramic cameras using 4 sensors. This higher vertical FOV enables users to have more video coverage, thereby enabling them to capture more evidence below the point of camera installation. The MS9390-EHV-v2 goes even further with WDR Pro technology for high contrast environments, 30fps at full resolution, and 180 Degree IR illuminators up to 20 meters, ensuring users with 24/7 comprehensive panoramic video surveillance.
In addition to its panoramic image qualities, the MS9390-EHV-v2 is also simple to install. It has been designed to be directly wall mounted, including 20 Degree of internal tilt adjustment on the lenses to get the exact angle desired. With an IP66 weather proof and IK10 vandal proof housing, the MS9390-EHV-v2 can be installed in both indoor and outdoor scenarios. The only accessory available for MS9390-EHV-v2 is a sunshield, which is included with the camera.
To top it all off, the MS9390-EHV-v2 utilizes H.265 compression and Smart Stream III technology. This combination enables users to greatly save on storage and bandwidth consumption usually associated with high resolution surveillance.
