Vivotek ND8322P 8-CH Embedded Plug & Play NVR (No HDD)

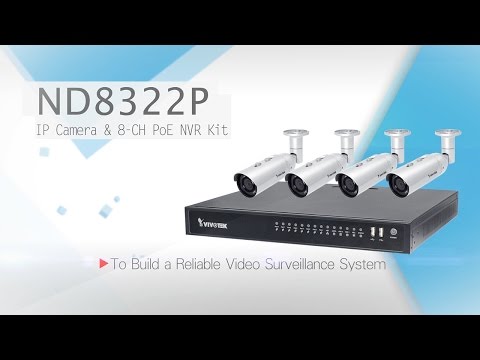

Vivotek ND8322P Video #1
Vivotek ND8322P: Picture 1 thumbnail
See all Vivotek items

Vivotek ND8322P 8-CH Embedded Plug & Play NVR (No HDD), 64Mbps Record Throughput, H.264, MJPEG

SKU: VIVND8322P

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Vivotek ND8322P Specifications

  • Hardware: OS

    Embedded Linux

  • Hardware: CPU

    ARM Processor

  • Hardware: Flash

    256MB

  • Hardware: RAM

    1GB

  • Hardware: Watchdog

    Hardware + Software

  • Hardware: Power Restoration

    System restart automatically after Power Recovery

  • Hardware: HDD Devices

    2x Internal tray

  • Hardware: HDD Max. Capacity

    2x 6TB

  • Hardware: Disk Management

    Create, Format and Remove Disk
    HDD S.M.A.R.T

  • Hardware: Video Output

    HDMI, VGA

  • Hardware: Video Resolution

    1920x1080, 1280x720

  • Hardware: Video Graphics Decoder

    Hardware decoding

  • Hardware: Decoding Capacity

    H.264: 2560x1920 at 30 fps (1-CH), 1920x1080 at 120 fps (4-CH), 1280x720 at 240 fps (8-CH)

  • Hardware: Camera Position

    Change the view cell position

  • Hardware: USB Interface

    Front: 2x (USB 2.0)
    Back: (USB 2.0)

  • Hardware: Alarm In

    8

  • Hardware: Alarm Out

    4

  • Hardware: Audio

    3.5 Phone Jack Audio Output
    3.5 Phone Jack Audio Input (Reserved)

  • Hardware: External HDD

    eSATA Port

  • Hardware: RS232

    1 Port (Reserved)

  • Hardware: RS485

    1 Port (Reserved)

  • Hardware: Network Protocols

    IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter

  • Hardware: Network Interface

    10/100/1000Mbps Ethernet (RJ-45)

  • Hardware: Network PoE

    8x 802.3af Compliant PoE Ports (Total Max. 80W)

  • Hardware: Power Input

    DC 56V 2.5A

  • Hardware: Power Consumption

    Max. 120W

  • Hardware: LED Indicator

    Power, Status, Record, HDD1, HDD2, eSATA, Ethernet, Port 1 to Port 8

  • Hardware: Form Factor

    Desktop

  • Hardware: Operation Buttons

    Power (Front) / Reset (Back)

  • Hardware: Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Hardware: Humidity

    0 - 95%

  • Hardware: Safety Certifications

    CE, LVD, FCC Class B, VCCI, C-Tick

  • Hardware: Client PC Requirements

    Operating System Microsoft Windows OS: XP/Vista/7/8/2008/2012
    CPU: Intel Celeron or above
    Memory: 2GB or above
    Ethernet: 10/100Mbps
    Display Resolution: 1024x768 pixels or above
    Web Browser: Internet Explorer 10 (32 bit) or above
    Software AP: Installation Wizard 2, ST7501, VAST
    Mobile/Tablet App: EZConnect (iOS/Android), iViewer (iOS/Android)

  • Software: Maximum Channel

    8

  • Software: Record throughput

    64Mbps

  • Software: Network throughput

    48Mbps

  • Software: Audio Format

    G.711, G.726

  • Software: Video Format

    MJPEG, H.264

  • Software: Video Resolution

    VGA, 1MP, 2MP, 3MP & 5MP Camera

  • Software: Recording Time (sec.)

    Pre-Record: 5 (Max. 10), Post-Record: 20 (Max. 300)

  • Software: Recording Stream

    Single

  • Software: Recording Mode

    Continuous, Schedule, Manual, Event, Activity Adaptive Streaming

  • Software: Recording Setting

    Recycle (unit Day)

  • Software: Recording Path

    Local Path

  • Software: Record Video Format

    3GP

  • Software: LiveView (Local Display)

    Stream Application: Auto Adaptive Stream
    LiveView Display: 8 Channel; Multi Layout display: 1x1, 1x3 (Corridor View), 2x2, 3x3, 1+5, 1+3, 1+1+3 (1P), 1+3+3(1P)
    Monitor Enhancement: OSD Display (NVR), OSD Display (Camera), Camera Information, Remote I/O Control, Event Notification, Aspect Ratio
    Fisheye Dewarp: 1O,1P,1R,1O3R
    PTZ Control: Panel Control
    PTZ Operation: Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control

  • Software: Playback (Local Display)

    Playback Display: 1 Channel
    Multi Layout Display: 1x1
    Playback Control: Regular (Play, Pause, Stop), Rewind, Next / Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Storyboard) Video Search: By calendar, date/time and alarm
    Thumbnail Explorer (Storyboard): Listing the thumbnail of recorded video (Max. 2 CH)

  • Software: Playback (Local Display) 1

    Monitor Enhancement: OSD Display (Camera), Event Notification, Aspect Ratio, PiP Control; Fisheye Dewarp (1O,1P,1R,1O3R)
    Snapshot: JPEG
    Video Clip Export: EXE

  • Software: LiveView (Remote)

    Stream Application: Stream Selection
    Audio Capability: One Way
    LiveView Display: 8 Channel; Multi Layout display: 1x1, 2x2, 3x3, 1+3, 1+5
    Monitor Enhancement: OSD Display (NVR), Drag & Drop, Image Freeze, Audio Control, Remote I/O Control, Event Notification, Bookmark, Fisheye Dewarp (1O, 1P, 1R)
    PTZ Control: Panel Control
    PTZ Operation: Direction Control, Home, Zoom, Focus, Iris, Preset, Patrol(Group), PiP Control
    Snapshot: JPEG

  • Software: Playback (Remote)

    Playback Display: 4 Channel
    Multi Layout Display: 1x1, 2x2, 1+3
    Playback Control: Regular (Play, Pause, Stop), Next Frame, Speed Control, Calendar, Timeline, Timeline Scale, Bookmark
    Monitor Enhancement: OSD Display (NVR), Drag & Drop, Audio Control, PiP Control, Fisheye Dewarp (1O, 1P, 1R)
    Snapshot: JPEG
    Video Clip Export: EXE

  • Software: Alarm Schedule Type

    Continuous, Schedule, Manual

  • Software: Alarm Event

    Motion Detection, PIR Detection, Tampering Detection, Digital Input (Camera), Digital Output (Camera), Connection Abnormal, Storage Abnormal, Storage Full, Camera Network Loss, DI, DO

  • Software: Alarm Action

    Record, Email (Text), Email (Snapshot), FTP, Buzzer, PTZ Control (Go to Preset), NVR DO, Camera DO

  • Software: Alarm Recording Time (sec.)

    Pre-Record: 5 (max. 10), Post-Record: 20 (max. 300)

  • Software: Manual

    USB Dongle (FAT Format)

  • Software: User Management

    User Account: 16
    User Account Time Limit: 10 mins
    User Level: Administrator / Regular User
    User Feature Definition: By Camera

  • Software: Log

    System, Recording, User, Error

  • Software: Date & Time

    Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time

  • Software: Firmware

    Manual update

  • Software: Restore Default

    Supported

  • Software: Backup/Restore

    Supported (Configuration)

  • Software: Language

    Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Simplified Chinese, Traditional Chinese

  • Software: Insert Camera

    Manual, Search

  • Software: Camera Integration

    Insert Camera: Manual, Search
    Video (Media) Setting: Compression, Resolution, FPS, Video Quality
    Image Setting: Image Display, Image Adjustment
    PTZ Control: Panel Control
    PTZ Operation: Direction Control, Home, Preset, Patrol (Group)
    Motion Detection: Supported

  • Software: UPS

    APC Model Compatible

  • Dimensions

    360 x 311 x 44mm / 14.17 x 12.24 x 1.73"

  • Weight

    2.7kg / 5.95lbs (without HDD)

  • UPC Code

    4712123674650

1 Accessories for Vivotek ND8322P 8-CH Embedded Plug & Play NVR (No HDD), 64Mbps Record Throughput, H.264, MJPEG

  • All Accessories (1)
  • Monitors (1)
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
$325.00

About Vivotek ND8322P

VIVOTEK ND8322P is a Linux embedded 8-CH standalone NVR with 8-port 802.3af Compliant PoE, allowing connection with PoE cameras for a max. 80 W power supply. ND8422P also features "One Button Setup" with its plug- &-play and auto-setup functionality, making this advanced unit surprisingly simple to install and suitable for any small-scale video surveillance applications.

Supporting HDMI and VGA local video output, users can control the GUI OSD interface via mouse & keyboard, eliminating the need for a separate PC to search video or to playback from the NVR. The new local display design - Auto Adaptive Stream will dynamically modify Stream 2 resolution of a camera to best fit the display resolution according to the layout type, resulting in an efficient display, while maintaining superb image quality. Meanwhile, ND8322P supports software fisheye camera de-warping function, providing right angle of video view and detailed information for usage.

What's more, ND8322P, featuring various I/O ports, such as eSATA port, alarm input/output, RS232 and RS485 provides users great flexibility of applications. With VAST CMS, users can set up IP surveillance system with ease. For remote and mobile access, VIVOTEK also provides EZConnet and iViewer app, for both iOS and Android handheld devices, enabling users to monitor live video anytime, anywhere.

Vivotek ND8322P Features

  • Plug & Play One Button Auto Setup
  • EZConnect by Scanning QR Code for 24/7 Mobile Viewing
  • Intuitive, Elegant Interaction UI
  • 8x 802.3af Compliant PoE Ports
  • VIVOTEK Camera Configuration and VAST CMS Integrated
  • Live and Playback Fisheye Dewarp
  • Embedded Linux OS
  • e-SATA for Extension Storage
  • Story Board Event Search
  • ONVIF Open Platform
  • Fanless Design
  • Up to 5MP Camera Liveview & Playback
  • HDMI/VGA Monitor Display
  • Mobile EZConnect

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Embedded Linux OS
  • ONVIF Open Platform
  • Fanless Design
  • Mobile EZConnect

What's in the box:

  • Vivotek ND8322P 8-CH Embedded Plug & Play NVR
  • Power Adapter
  • Power Cord
  • 16x H.D.D. Screws
  • 4x H.D.D. Brackets
  • USB Mouse
  • 2x SATA Cables
  • Quick Installation Guide
  • CD (User's Manual / Quick Installation Guide (QIG) / Installation Wizard 2)
  • Vivotek 2 Year Warranty
