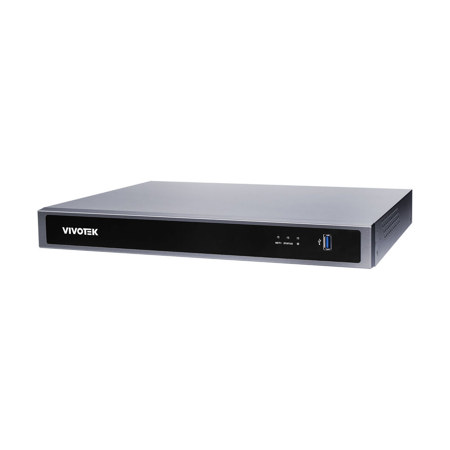

Vivotek V-Series ND9326P Core+AI 8-Channel 4K Ultra HD Embedded PoE NVR, Diskless

SKU: VIVND9326P MFR: ND9326P
Earn VIP Reward Points

Key Features

  • Experience crystal-clear 4K Ultra HD resolution, ensuring every detail is captured for superior security.
  • Easily monitor your property from anywhere with convenient remote access via mobile apps and web browsers.
  • Connect up to 8 PoE cameras, simplifying installation and expanding your surveillance system effortlessly.
  • Benefit from advanced AI features like smart VCA and object search for intelligent event detection and analysis.
  • Enjoy robust cybersecurity management and Trend Micro IoT Security for comprehensive data protection.
  • Manage and review footage with ease, thanks to intuitive playback controls and flexible storage options.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Vivotek V-Series ND9326P Specifications

Device
  • OS

    Embedded Linux

  • Watchdog

    Hardware + Software

  • Power Restoration

    System Restart Automatically after Power Recovery

Display

Jump to...
  • LiveView Display

    8 Channels
    Multi Layout Display: 1x1, 2x2, 3x3, 1M+5, 1P+3, 1P+6, 2P+3, 3V

  • Video Output

    1x HDMI, 1x VGA

  • Display Resolution

    3840x2160, 1920x1080, 1280x720

  • Dual Monitor

    Supported

  • Stream Application

    Constant\Auto Adaptive Stream

  • Fisheye Dewarp

    Local: 1O, 1P, 1R, 1O3R, 1O8R, 1P3R
    Web: 1O, 1R, 1P

  • PTZ Operation

    Direction Control, Home, Iris, Preset, Patrol (Group)

  • Video Format

    MJPEG, H.264, H.265

  • Graphic Decoder

    Hardware decoding

  • Decoding Resolution

    Up to 7680x2560

  • Decoding Capability

    H.265/H.264:
    3840x2160 @ 120 fps
    1920x1080 @ 480fps

  • Audio Format

    G.711, G.726, MPEG-2 AAC-LC

  • Recording Time (sec.)

    Pre-Record: 5 (Max. 10)
    Post-Record: 20 (Max. 300)

  • Recording Stream

    Dual

  • Recording Throughput

    192Mbps

  • Recording Mode

    Continuous, Schedule, Manual, Event, Activity Adaptive Streaming

  • Recording Setting

    Recycle (unit: Day)

  • Watermark

    Supported

  • Seamless Recording

    Supported

Storage & Backup

Jump to...
  • DISK Devices

    Internal x2 (3.5") (HDD is purchased by separately)

  • RAID

    RAID 0, 1

  • Disk Management

    Create, Format and Remove Disk
    HDD S.M.A.R.T

  • External Storage

    USB Storage (USB 3.0)

  • Video Clip Export

    USB pen drive (FAT Format)

  • Schedule Backup

    FTP

Playback

Jump to...
  • Playback Display

    4 Channels
    Multi Layout Display: 1x1,2x2,1P+3,3V

  • Playback Control

    Regular (Play, Pause, Stop), Rewind, Next / Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Storyboard)

  • Video Search

    By Calendar, Date/Time, and Alarm

  • Thumbnail Explorer (Storyboard)

    Listing the thumbnail of recorded video (Max. 2 CH)

  • Snapshot

    JPEG

  • Video Clip Export

    EXE

Network

Jump to...
  • Ethernet

    10/100/1000Mbps Ethernet (RJ-45) x 2

  • Network Throughput in total

    224 Mbps

  • PoE

    802.3at/af Compliant PoE Ports x 8 (Total Max. 120W)

  • PoE Management

    Supported

  • Protocols

    IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS

External Interface

Jump to...
  • USB

    Front: 1 (USB 3.0)
    Back: 2 (USB 2.0)

  • Alarm In

    4

  • Alarm Out

    1

  • Audio In

    1x 3.5 Phone Jack Audio Input (HW available, FW feature not supported yet)

  • Audio Out

    1x 3.5 Phone Jack Audio Output

  • Camera Integration

    ONVIF Profile S

  • Event

    Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error, Video loss

  • Event Action

    Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), NVR DO, Camera DO, APP Notification by cloud service

  • User Management

    User level: administrator, regular user

  • Log

    System, Recording, User, Error

  • Date & Time

    Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time

  • Language

    Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic

Advance Features

Jump to...
  • VCA Counting Solution

    Supported

  • VCA Event Search

    Smart VCA, Smart 360 VCA

  • Smart Search II

    Supported

  • Trend Micro IoT Security

    Supported (3-year free trial)

  • Cybersecurity Management

    Supported

Remote Client

Jump to...
  • Software AP

    Shepherd , VSS

  • Mobile/Tablet App

    iViewer(Android & iOS)

  • Web Browser

    Chrome

  • Cloud service

    VORTEX Connect

General

Jump to...
  • Color

    Black

  • Power Input

    100-240V AC, 50/60Hz

  • Power Consumption

    Max. 190W

  • Operating Temperature

    14 Degree F - 131 Degree F (-10 Degree C - 55 Degree C)

  • Humidity

    0 - 95%

  • Safety Certifications

    CE, LVD, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS

  • Country of Origin

    Taiwan

  • Dimensions (W x D x H)

    14.37 x 12.40 x 1.73" (365 x 315 x 44mm)

  • Weight

    5.84 lbs (2.65kg) (without HDD)

  • UPC Code

    4710469354540

About Vivotek V-Series ND9326P

Intuitive Design, Clearer Insights
NVR 5.0 introduces a clean, card-style interface that transforms the way surveillance is managed. With streamlined operations, simplified setup, and drag-and-drop display settings, monitoring becomes both efficient and effortless.

Next Generation NVR Firmware: Core+AI
Core+ AI firmware take Core+ up a level. Core+ AI NVR's are empowered with Deep Search, utilizing AI to provide the fastest, smartest and most efficient evidence search user experience. VIVOTEK cameras enabled with Vision Object Analytics provide the metadata used by Deep Search's AI. Deep Search is comprised of two main functions: Attribute Search and Scene Search.

Deep Search
Attribute Search uses people and vehicles as search criteria utilizing multiple attributes (e.g., gender, age group, clothing or car color, vehicle type, etc.) to quickly and accurately find the person / vehicle of interest.

Smart VCA Event Search
It supports alarm management and event search of VIVOTEK's deep-learning video analytics technology, Smart VCA. Users can search by single or multiple event types, playback triggered events and then export these search results to video clips.

Remote Firmware Update
The Core+AI series NVRs offer remote firmware update capability, ensuring embedded NVRs and network cameras remain secure and optimized at all times. This essential feature streamlines maintenance by enabling administrators to deploy the latest NVR and camera firmware remotely and manually anytime and anywhere, guaranteeing maximum system stability.

24/7 Monitoring Convenience through VORTEX
VORTEX makes surveillance lightweight and portable, ensuring efficient operation. This cloud cross-platform makes surveillance even more convenient, users can view live streams, play recorded clips at any time, anywhere. Equipped with the Push Notification function, users receive immediate alert messages on their Android/iOS mobile devices and can directly playback the video to inspect any suspicious activity.

Vivotek V-Series ND9326P Features

  • Smart VCA Camera Supported for Event Search
  • Simplify Judgment with Deep Search
  • Chrome Browser Supported without Plugins
  • Manage with VORTEX & VAST Security Station (VSS)
  • Made in Taiwan

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience crystal-clear 4K Ultra HD resolution, ensuring every detail is captured for superior security.
  • Easily monitor your property from anywhere with convenient remote access via mobile apps and web browsers.
  • Connect up to 8 PoE cameras, simplifying installation and expanding your surveillance system effortlessly.
  • Benefit from advanced AI features like smart VCA and object search for intelligent event detection and analysis.
  • Enjoy robust cybersecurity management and Trend Micro IoT Security for comprehensive data protection.
  • Manage and review footage with ease, thanks to intuitive playback controls and flexible storage options.

What's in the box:

  • Vivotek V-Series ND9326P Core+AI 8-Channel 4K Ultra HD Embedded PoE NVR (Diskless)
  • Power Cord
  • Mouse
  • Screws
  • User Manual
  • Vivotek 3 Year Limited Warranty
