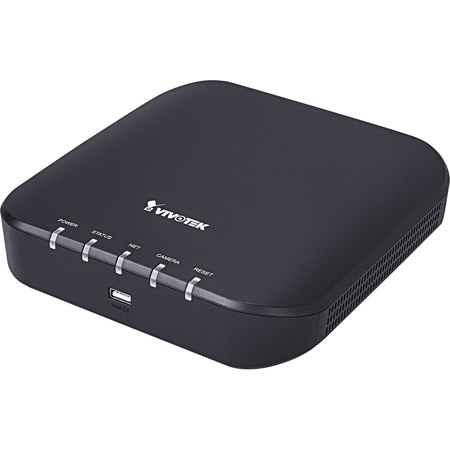

Vivotek RX9502 32-Channel Embedded Video Receiver

SKU: VIVRX9502 MFR: RX9502
Earn VIP Reward Points

Key Features

  • Effortlessly monitor your property with 32-channel support for comprehensive security video recording.
  • Experience crystal-clear surveillance with 3840x2160 display resolution, capturing every vital detail.
  • Access your security footage remotely through intuitive software, keeping you connected from anywhere.
  • Benefit from easy setup and an embedded Linux OS for reliable, user-friendly security management.
  • Capture crucial moments with advanced motion detection capabilities, ensuring nothing goes unnoticed.
  • Enjoy flexible storage capacity options to securely save extensive video recordings for peace of mind.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Vivotek RX9502 Specifications

Device
  • OS

    Embedded Linux

  • Watchdog

    Hardware + Software

  • Power Restoration

    System Restart Automatically after Power Recovery

Display

Jump to...
  • LiveView Display

    32 Channels
    Multi Layout Display: 1x1, 2x2, 3x3, 4x4, 1M+5,1M+12, 1M+31, 1P+3,1P+6, 2P+3, 3V

  • Video Output

    1x HDMI

  • Display Resolution

    3840x2160, 1920x1080, 1280x720

  • Stream Application

    Constant\Auto Adaptive Stream

  • Fisheye Dewarp

    1O,1P,1R,1O3R,1O8R, 1P3R

  • PTZ Operation

    Direction Control, Home, Iris, Preset, Patrol (Group)

  • Video Format

    H.264, H.265, MJPEG

  • Graphic Decoder

    Hardware decoding

  • Decoding Resolution

    Up to 7680x2560

  • Decoding Capability

    3840x2160 @ 90 fps (3C-H)
    1920x1080 @ 360 fps (12-CH)

  • Audio Format

    G.711, G.726

Network

Jump to...
  • Ethernet

    1x 10/100/1000Mbps Ethernet (RJ-45)

  • Network Throughput in total

    192 Mbps

  • Protocols

    IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS

External Interface

Jump to...
  • USB

    Front: 1 (USB 2.0)
    Back: 1 (USB 3.0)

  • Camera Integration

    ONVIF Profile S

  • User Management

    User level: administrator, regular user

  • Date & Time

    Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time

  • Language

    Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic

Remote Client

Jump to...
  • Software AP

    Shepherd ,VAST 2, VSS

  • Web Browser

    Chrome

General

Jump to...
  • Color

    Black

  • Power Input

    DC 12V 1A

  • Power Consumption

    Max. 11W

  • Operating Temperature

    14 Degree F - 122 Degree F (-10 Degree C - 50 Degree C)

  • Humidity

    0 - 95%

  • Safety Certifications

    CE, FCC, VCCI, C-Tick ,UL, CB, BSMI, BIS

  • Country of Origin

    Taiwan

  • Dimensions (W x D x H)

    7.80 x 7.87 x 1.85" (198 x 200 x 47mm)

  • Weight

    18.7 oz (530g)

  • UPC Code

    4710469354090

About Vivotek RX9502

Various Split-Window Layout & Fisheye Dewarp Support
The RX9502 provides various split modes for layout display (1x1, 2x2, 3x3, 4x4, 1M+5, 1M+12, 1M+32, 1P+3, 1P+6, 2P+3, 3V) and supports VIVOTEK's fisheye camera Fisheye Dewarp function, which provides multiple dewarping modes to ensure the correct angle of video view and detailed information for flexible usage.

Vivotek RX9502 Features

  • Up to 20MP Cameras Supported
  • Compact Size with Fanless Design
  • Various Split-window Layout Display Modes
  • VAST 2 and VAST Security Station Supported
  • Made in Taiwan, NDAA

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Effortlessly monitor your property with 32-channel support for comprehensive security video recording.
  • Experience crystal-clear surveillance with 3840x2160 display resolution, capturing every vital detail.
  • Access your security footage remotely through intuitive software, keeping you connected from anywhere.
  • Benefit from easy setup and an embedded Linux OS for reliable, user-friendly security management.
  • Capture crucial moments with advanced motion detection capabilities, ensuring nothing goes unnoticed.
  • Enjoy flexible storage capacity options to securely save extensive video recordings for peace of mind.

What's in the box:

  • Vivotek RX9502 32-Channel Embedded Video Receiver
  • Power Adapter
  • Mouse
  • User Manual
  • Vivotek 3 Year Limited Warranty
