Vivotek SD8333-E Specifications

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    128MB

  • RAM

    256MB

  • Image Sensor

    1/3" Progressive CMOS

  • Maximum Resolution

    1280x720

  • Lens Type

    30x Optical Zoom, Auto Focus

  • Focal Length

    f = 4.3 to 129mm (30x zoom)

  • Aperture

    F1.6 to F4.7

  • Auto-iris

    DC-iris

  • Field of View

    Horizontal: 2.1 to 57.8 deg.
    Vertical: 1.2 to 34.5 deg.
    Diagonal: 2.4 to 67.3 deg.

  • Shutter Time

    1/1 to 1/10000sec

  • WDR Technology

    WDR Pro

  • Day/Night

    Removable IR-cut filter for day & night function

  • Minimum Illumination

    0.15 Lux at F1.6 (Color)
    0.0048 Lux at F1.6 (B/W)

  • Pan Speed

    0.05 to 450 deg./ sec

  • Pan Range

    360 endless

  • Tilt Speed

    0.05 to 450 deg./ sec

  • Tilt Range

    220 deg. (-110 to +110 deg.)

  • Preset Locations

    256 preset locations, 40 presets per tour

  • Pan/tilt/zoom Functionalities

    48x digital zoom (4x on IE plug-in, 12x built-in)
    Auto pan mode
    Auto patrol mode

  • On-board Storage

    SD/SDHC/SDXC card slot

  • Video: Compression

    H.264, MJPEG & MPEG-4

  • Video: Maximum Frame Rate

    H.264: 60fps at 1280x720
    MPEG-4: 60fps at 1280x720
    MJPEG: 60fps at 1280x720 (Up to 30 fps in WDR mode)

  • Video: Maximum Streams

    4 simultaneous streams

  • Video: S/N Ratio

    Above 50dB

  • Video: Dynamic Range

    110dB

  • Video: Streaming

    Adjustable resolution, quality and bitrate
    Zoom enhancement for better image quality under limited bandwidth

  • Video: Image Settings

    Adjustable image size, quality and bit rate
    Time stamp, text overlay, flip & mirror
    Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24) Scheduled profile settings
    Defog

  • Audio: Capability

    Audio input/output (full duplex)

  • Audio: Compression

    AAC, G.711, G.726

  • Audio: Interface

    External microphone input
    External line output

  • Network: Users

    Live viewing for up to 10 clients

  • Network: Protocols

    IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X

  • Network: Interface

    10Base-T/100 BaseTX Ethernet (RJ-45)

  • Network: ONVIF

    Supported

  • Video Motion Detection

    Triple-window video motion detection

  • Auto-Tracking

    Auto-tracking on moving object

  • Alarm Triggers

    Video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection

  • Alarm Events

    Event notification using digital output, HTTP, SMTP, FTP and NAS server
    File upload via HTTP, SMTP, FTP and NAS server

  • Connectors

    RJ-45 cable connector for Network/PoE connection
    Audio input
    Audio output
    AC 24V power input
    4x Digital input
    2x Digital output
    RS-485 for PTZ control (PelcoD protocol, Baud rate 2400)

  • LED Indicator

    System power and status indicator

  • Power Input

    PoE plus (IEEE 802.3at compliant)
    High Power PoE
    AC 24V

  • Power Consumption

    PoE plus: Max. 19W
    AC 24V: Max. 48W (heater on), Max. 19W (heater off)
    High Power PoE: Max. 48W (heater on), Max. 19W (heater off)

  • Casing

    Weather-proof IP66- and NEMA 4X-rated mated housing
    Built-in electrical dehumidifier device (SD8333-EM)

  • Safety Certifications

    CE, FCC Class A, VCCI, C-Tick, NEMA 4X

  • Operating Temperature

    -5 to 55 deg. C / 23 to 131 deg. F (PoE Plus)
    -40 to 55 deg. C / -40 to 131 deg. F (AC 24V)
    -40 to 55 deg. C / -40 to 131 deg. F (High Power PoE)

  • Operating System

    Microsoft Windows 7/Vista/XP/2000

  • Web Browser

    Mozilla Firefox 7 to 10 (Streaming only)
    Internet Explorer 9.x or 10.x

  • Other Players

    VLC: 1.1.11 or above
    Quicktime: 7 or above

  • Dimensions

    Dia. 205 x 321mm / 8.07 x 12.64"

  • Weight

    3974g / 140.18oz

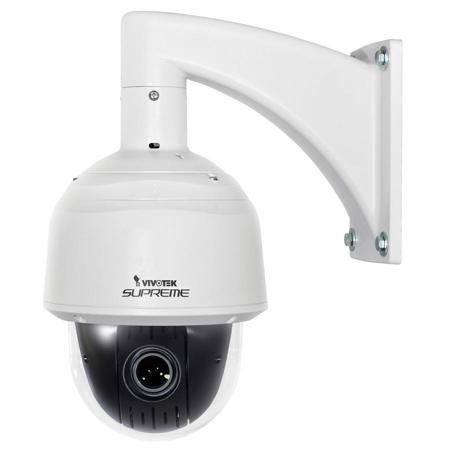

About Vivotek SD8333-E

VIVOTEK SD8333-E is part of the SUPREME series product line offering 720p HD resolution with superb image quality. Adopting a 30x optical zoom lens, the SD8333-E is able to capture details at top-notch quality. The IP66- and NEMA 4x-rated housing protects the camera body against rain, dust and corrosion within a wide temperature range between -40deg.C to 55deg.C. This feature ensures operation under extreme weather conditions and hazardous environments.

It is especially suitable for monitoring wide open indoor/outdoor spaces such as airports, highways and parking lots where high-level reliability and precision are always required. The SD8333-E supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality with resolution up to 60 fps at 720p. Boasting WDR Pro technology, the SD8333-E can also cope with challenging lighting conditions and generate image quality close to the capabilities of the human eye.

With a sophisticated pan/tilt mechanism, the camera provides fast, precise movement with continuous 360-degree pan and 220-degree tilt. Users can also easily control the lens position via a mouse or a joystick to track the object of interest and set up to 256 preset positions. With the built-in auto tracking feature, the SD8333-E provides instantaneous reaction to suspicious moving objects in wide area locations before operators are aware of activity.

Vivotek SD8333-E Features

  • 720p HD CMOS Sensor
  • 60 fps at 720p HD
  • 30x Zoom Lens
  • Removable IR-cut Filter for Day & Night Function
  • 360deg. Continuous Pan and 220deg. Tilt
  • Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
  • WDR Pro for Unparalleled Visibility in High Contrast Environments
  • Weather-proof IP66-rated and NEMA4X Housing
  • -40deg.C to 55deg.C Wide Temperature Range for Extreme Weather Conditions
  • Audio Detection for Instant Alerts
  • Auto Tracking for Moving Objects
  • Built-in 802.3at Compliant PoE Plus
  • 3D Privacy Masks for Additional Protection
  • Built-in SD/SDHC/SDXC Card Slot for On-board Storage
  • Defog & ElS

Key Features

  • 720p HD CMOS Sensor
  • 60 fps at 720p HD
  • 30x Zoom Lens
  • Defog & ElS

What's in the box:

  • Vivotek SD8333-E Outdoor Speed Dome Network Camera
  • Wall Mount Bracket
  • Screws
  • Waterproof Connectors
  • Terminal Blocks
  • Alignment Sticker
  • Ground Wire
  • T25 Stardriver
  • Software CD
  • Desiccant Bags
  • CD (User's manual / Quick Installation Guide / Installation Wizard 2 / ST7501 32-Channel Recording Software)
  • Vivotek 3 Year Warranty
