This item is no longer available.

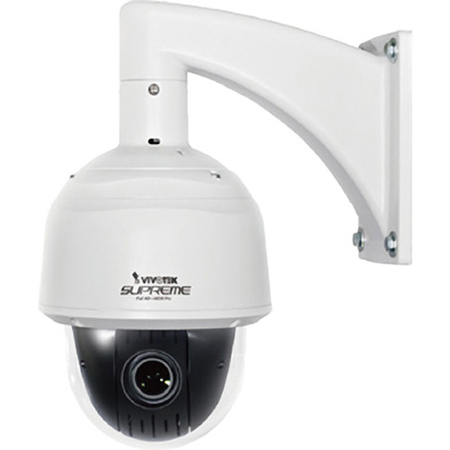

VIVOTEK SD8363E is part of the SUPREME series product line offering 1080p Full HD resolution with superb image quality. Adopting a 20x optical zoom lens, the SD8363E is able to capture details at top-notch quality. The IP66- and NEMA 4x-rated housing protects the camera body against rain, dust and corrosion within a wide temperature range of between -40deg.C to 55deg.C. This feature ensures operation under extreme weather conditions and hazardous environments.
It is especially suitable for monitoring wide open indoor/outdoor spaces such as airports, highways and parking lots where high-level reliability and precision are always required. The SD8363E supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality with resolution up to 30 fps at 1080p. Boasting WDR Pro technology, the SD8363E can also cope with challenging lighting conditions and generate image quality close to the capabilities of the human eye.
With a sophisticated pan/tilt mechanism, the camera provides fast, precise movement with continuous 360-degree pan and 220-degree tilt. Users can also easily control the lens position via a mouse or a joystick to track the object of interest and set up to 256 preset positions. With the built-in auto tracking feature, the SD8363E provides instantaneous reaction to suspicious moving objects in wide area locations before operators are aware of activity. As with all VIVOTEK true day/night cameras, the SD8363E features a removable IR-cut filter, maintaining clear images 24 hours a day.
With audio detection, by recognizing increases or decreases in sound volume, an additional layer of intrusion detection is ensured. Zoom enhancement provides 60x optical zoom at 640x360 resolution by which VGA-level bandwidth is used to obtain image details as high as 1080p resolution. With other advanced features such as SD/SDHC/SDXC card slot, 802.3at compliant PoE Plus and 60 fps high quality video, the SD8363E is the best choice for the most demanding outdoor surveillance applications.
Features
• 1080p Full HD SONY CMOS Sensor
• 30 fps at 1080p Full HD, 60 fps at 720p HD
• 20x Zoom Lens
• Removable IR-cut Filter for Day & Night Function
• 360deg. Continuous Pan and 220deg. Tilt
• Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
• WDR Pro for Unparalleled Visibility in High Contrast Environments
• Weather-proof IP66-rated and NEMA 4x Housing
• -40deg.C to 55deg.C Wide Temperature Range for Extreme Weather Conditions
• Audio Detection for Instant Alerts
• Auto Tracking for Moving Objects
• Built-in 802.3at Compliant PoE Plus
• 3D Privacy Masks for Additional Protection
• Built-in SD/SDHC/SDXC Card Slot for On-board Storage
60 fps Raises Recognition Accuracy
The VIVOTEK SD8363E is able to transmit 60 fps at 720p resolution with H.264 compression, whereas a conventional megapixel camera can generally only achieve 10 to 15 fps due to hardware limitations. 60 fps provides a significant advantage as it enables viewing and recording footage at an exceptional frame rate. This feature provides a more complete record of an event and ensures accurate target identification. The more images or frames that can be captured and delivered to a facial recognition database, the more forensic evidence is available for biometric pairing, significantly increasing the level of accuracy
Advanced Mechanism
SD8363E has a pan range of 360deg. and tilt range of 220deg. With the additional 20deg. tilt range, the SD8363E is able to expand the viewing range to the field above the normal horizontal view. Additionally, the SD8363E is built with QuickPan technology, allowing for 360deg. endless panning at a speed of 450deg. per second. This allows users to quickly direct the camera lens to catch any object of interest in the field of view surrounding the camera.
Zoom Enhancement
Utilizing a 20x optical zoom lens, the SD8363E provides close-up images with 1080p detail and effectively extends the user's viewing distance. Even under limited bandwidth environments, users can take advantage of the VIVOTEK Zoom enhancement feature to obtain image detail as high as 1080p resolution using VGA-level bandwidth.
Auto Tracking for Moving Objects
The auto tracking feature provides instantaneous reaction to suspicious moving objects over a wide area before an operator may be aware of activity. Users are able to define the target object size in order to render auto tracking more effectively
Audio Detection for Instant Alerts
The audio detection feature enables an event trigger when a sudden, unexpected increase or decrease in sound volume occurs so as to alert users of a possible emergency situation.
Unparalleled Visibility in High Contrast Environments
When a camera is used in a high contrast, backlight, glare or light reflective environment, such as a building entrance, ATM or window, an object may appear dark and unrecognizable. WDR (Wide Dynamic Range) technology compensates for the unbalanced lighting, restoring the details throughout the field of view. With this feature, the SD8363E is able to maintain image quality even under challenging light conditions.
WDR Pro
WDR Pro works by capturing alternate frames using different exposure times. An image signal processor (ISP) then uses a sophisticated algorithm to seamlessly combine the optimal portions of these two complementary frames to create a composite frame that retains details in both the dark and bright areas of the field of view.
Extreme Weatherproof
Wide Temperature Range
The wide temperature range (-40deg.C approx. 55deg.C) enhances the SD8363E's performance and reliability under extremely harsh weather conditions
IP66-rated and NEMA 4x Housing
The weather-proof IP66- and NEMA 4x-rated housing protects the SD8363E from rain, dust and corrosion, allowing the device to operate outdoors under a multitude of weather conditions
