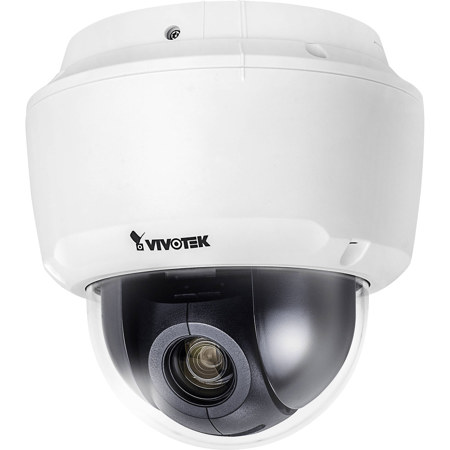

Vivotek V-Series SD9161-H-V2 2MP AI Indoor PTZ Dome Camera w/Night Vision, White
See all Vivotek items
25% Off

Vivotek V-Series SD9161-H-V2 2MP AI Indoor PTZ Dome Camera with Night Vision, White

SKU: VIVSD9161HV2 MFR: SD9161-H-V2
Be the first to review this itemAsk a Question
$1,064.25
$1,419.00
Save: $354.75 (25%)
OR
$89/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience crystal-clear 2MP video quality, ensuring every detail is captured for superior surveillance.
  • Benefit from advanced night vision, providing reliable security monitoring even in complete darkness.
  • Stay informed with intelligent motion detection alerts, sending notifications directly to your device.
  • Enjoy effortless setup with easy installation, getting your security camera operational in no time.
  • Access your camera remotely from anywhere, keeping an eye on your property with convenient control.
  • Securely store your footage with flexible storage options, including local and network solutions.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Vivotek V-Series SD9161-H-V2 Specifications

System

System

Jump to...

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    8GB

  • RAM

    2GB

Camera

Jump to...

  • Image Sensor

    1/2.8" Progressive CMOS

  • Max. Resolution

    1920x1080 (2MP)

  • Lens Type

    10x Optical Zoom, Auto Focus

  • Focal Length

    5.1-51mm (10x zoom)

  • Aperture

    f/1.6-1.8

  • Iris Type

    DC-Iris

  • Field of View

    55.2 Degree - 7.1 Degree (Horizontal)
    31.8 Degree - 4.1 Degree (Vertical)
    62.4 Degree - 8.1 Degree (Diagonal)

  • Shutter Time

    1/8 sec. to 1/30,000 sec.

  • WDR Technology

    WDR Pro

  • Removable IR-cut filter

    Yes

  • Minimum Illumination

    0.14 Lux @ F1.6 (Color)
    0.005 Lux @ F1.6 (B/W)

  • Pan Speed

    0.05 Degree - 360 Degree /sec

  • Pan Range

    360 Degree endless

  • Tilt Speed

    0.05 Degree - 360 Degree /sec

  • Tilt Range

    180 Degree

  • Preset Location

    256 preset locations
    128 presets per tour

  • Pan/Tilt/Zoom Functionalities

    32x digital zoom (4x on IE plug-in, 8x built-in)
    Auto Pan mode
    Auto Patrol mode

  • Storage

    Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)

  • Built-in Installation Aids

    Remote focus, remote zoom

Video

Jump to...

  • Compression

    H265, H264, MJPEG

  • Maximum Frame Rate

    30 fps @ 1920x1080 (WDR on)
    60 fps @ 1920x1080 (WDR off)

  • Maximum Streams

    3 video streams (Up to 8 configurable profiles)

  • S/N Ratio

    73 dB

  • Dynamic Range

    100 dB

  • Video Streaming

    Adjustable resolution, quality and constrained bit rate control, Smart Stream III

  • Image Settings

    General settings: video settings, video orientation (flip, mirror), day/night settings
    Overlay settings

    Illuminators: illuminators, anti-overexposure

    Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, EIS(built-in gyro sensor), scene mode (auto)

  • Image Settings (Contd.)

    Exposure:
    exposure strategy (measurement window, metering mode)
    exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
    Focus: zoom, focus
    Privacy mask
    Pixel calculator
    Scheduled profile settings

Audio

Jump to...

  • Audio Capability

    Two-Way Audio (full duplex)

  • Compression

    MPEG-2 AAC-LC, G.711, G.726

  • Interface

    External line input
    External line output

Network

Jump to...

  • Users

    Live viewing for up to 10 clients

  • Security

    Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), User access log, User account management

  • Protocols

    802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP

  • Interface

    10 Base-T/100 Base-TX Ethernet (RJ-45)

  • ONVIF

    Profile G, S, T supported

AI Analytics

Jump to...

  • Compute Capability

    SoC with built-in hardware deep learning accelerator

  • Vision Object Analytics

    Object Detection: People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Bestshot, Path Extraction
    Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)
    Human face Bestshot, Re-Search Extraction

  • Application

    Deep Learning VCA (Smart Tracking Advanced)
    Smart VCA - Group 1: Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, face detection)
    Smart VCA - Group 2: Unattended object detection, Missing object detection

  • Application available with license

    Smart VCA - Group 3: Parking Violation Detection, Restricted Zone Detection

Solution Integration

Jump to...

  • VADP Package

    Stratocast, Trend Micro IOT Security (3-year free trial)

Alarm and Event

Jump to...

  • Event Trigger

    Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, smart tracking advanced trigger, system boot, preset reached

  • Event Action

    Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card, push notification
    File upload via email, HTTP, FTP/SFTP, NAS server, SD card

System Requirements

Jump to...

  • Operating System

    Microsoft Windows 10/8/7
    Mac 10.12 (Chrome only)

  • Web Browser

    Chrome 58.0 or above
    Internet Explorer 10/11

  • Other Players

    VLC: 1.1.11 or above

DORI (EN 62676-4 Standard)

Jump to...

  • Detection (25PPM/ 8PPF)

    Wide: 252.2' (76.9m)
    Tele: 1928.1' (587.7m)

  • Observation (63PPM/ 19PPF

    Wide: 100' (30.5m)
    Tele: 765.1' (233.2m)

  • Recognition (125PPM/ 38PPF)

    Wide: 51.8' (15.8m)
    Tele: 385.5' (117.5m)

  • Identification (250PPM/ 76PPF)

    Wide: 25.9' (7.9m)
    Tele: 190.3' (58m)

General

Jump to...

  • Color

    White

  • Connectors

    RJ-45 cable connector for 10/100Mbps Network/PoE connection
    Audio line input
    Audio line output
    AC/DC 24V power input
    2x Digital input
    1x Digital output

  • LED Indicator

    System power and status indicator

  • Power Input

    AC 24V, DC 24V, IEEE 802.3at PoE Class 4 (Simultaneous Power Redundancy Supported)

  • Power Consumption

    PoE
    Max: 17W
    AC/DC 24V
    Max: 17W

  • Certifications

    EMC: CE (EN 55032 Class A, EN55035), UKCA (BS EN 55032 Class A, BS EN 55035), FCC (FCC Part 15 Subpart B Class A), IC (ICES-003 Issue7:2020 Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A)
    Safety: UKCA (BS EN 62368-1:2020+A11:2020), UL (UL 62368-1), CB (IEC/EN 62368-1)
    IA: BIS (IS 13252), BSMI

  • Operating Temperature

    Starting/Working Temperature: 14 Degree F - 131 Degree F (-10 Degree C - 55 Degree C)

  • Humidity

    98% RH (non-condensing)

  • Country of Origin

    Taiwan

  • Dimensions (Dia. x L)

    6.77 x 6.18" (172 x 157mm)

  • Weight

    2.2 lbs (1kg)

Other

Jump to...

  • UPC Code

    4710469354021

About Vivotek V-Series SD9161-H-V2

Smart Tracking Advanced
Smart Tracking Advanced is designed to enhance the performance of tracking objects via PTZ cameras. Smart Tracking Advanced covers four types of Video Content Analysis - intrusion detection, line crossing detection, loitering detection and face detection. Through user-defined rules, a person demonstrating suspicious behavior would trigger preset alarms. Automatic tracking of the person of interest, optimizing the recording video quality, and notifying security personnel all activate simultaneously.

Vivotek V-Series SD9161-H-V2 Features

  • 10x Optical Zoom with Auto Focus
  • Identify People by Vision Object Analytics
  • Smart Tracking Advanced for Moving People
  • WDR Pro for Unparalleled Visibility
  • Security Enhanced with Signed Firmware

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience crystal-clear 2MP video quality, ensuring every detail is captured for superior surveillance.
  • Benefit from advanced night vision, providing reliable security monitoring even in complete darkness.
  • Stay informed with intelligent motion detection alerts, sending notifications directly to your device.
  • Enjoy effortless setup with easy installation, getting your security camera operational in no time.
  • Access your camera remotely from anywhere, keeping an eye on your property with convenient control.
  • Securely store your footage with flexible storage options, including local and network solutions.

What's in the box:

  • Vivotek V-Series SD9161-H-V2 2MP AI Indoor PTZ Dome Camera
  • Mounting Adapter
  • Alignment Sticker
  • L-Wrench
  • Torx Driver
  • Power Cable
  • User Manual
  • Vivotek 3 Year Limited Warranty
