25% Off

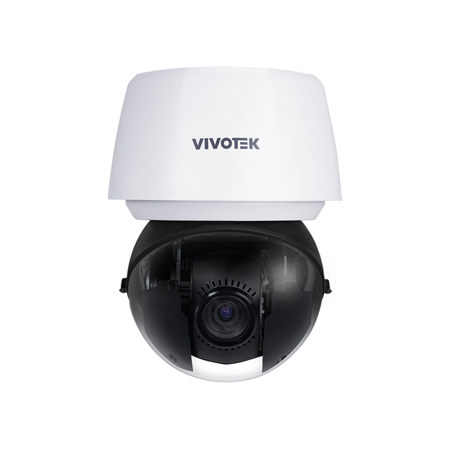

Vivotek V-Series SD9367-EHL 2MP AI Outdoor PTZ Dome Camera with Night Vision, White

SKU: VIVSD9367EHL MFR: SD9367-EHL
Earn VIP Reward Points

Key Features

  • Experience crystal-clear 2MP video quality, ensuring every detail is captured for superior surveillance.
  • Benefit from advanced night vision, providing exceptional clarity and security even in complete darkness.
  • Stay informed with intelligent motion detection, instantly alerting you to any suspicious activity.
  • Enjoy effortless setup with easy installation features, getting your security camera ready in no time.
  • Access your camera remotely from anywhere, keeping an eye on your property with convenient remote access.
  • Securely store all your footage with versatile storage options, offering peace of mind and reliable backup.
See More Product Details
Temporarily On Backorder?Expected Availability: 04/2026Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Vivotek V-Series SD9367-EHL Specifications

System
  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    8GB

  • RAM

    2GB

  • Image Sensor

    1/2.8" Progressive CMOS

  • Max. Resolution

    1920x1080 (2MP)

  • Focal Length

    4.25-170mm (40x zoom)

  • Aperture

    f/1.6-4.95

  • Iris Type

    DC-Iris

  • Field of View

    65.7 Degree - 1.9 Degree (Horizontal)
    39.4 Degree - 1.1 Degree (Vertical)
    73 Degree -2.1 Degree (Diagonal)

  • Shutter Time

    1 sec. to 1/100,000 sec.

  • WDR Technology

    WDR Pro

  • Day/Night

    Yes

  • Removable IR-cut filter

    Yes

  • Minimum Illumination

    0.05 lux @ F1.6 (Color)(30IRE)
    <0.005 lux @ F1.6 (B/W)(30IRE)

  • Pan Speed

    0.05 Degree - 450 Degree /sec

  • Pan Range

    360 Degree endless

  • Tilt Speed

    0.05 Degree - 450 Degree /sec

  • Tilt Range

    -20 Degree - +90 Degree
    Effective tilt coverage 220 Degree via auto flip

  • Preset Location

    256 preset locations
    128 presets per tour

  • Pan/Tilt/Zoom Functionalities

    8x digital zoom
    Auto Pan mode
    Auto Patrol mode
    Mechanical Auto flip

  • Storage

    Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)

  • Built-in Installation Aids

    Remote focus, remote zoom

  • Compression

    H265, H264, MJPEG

  • Maximum Frame Rate

    30 fps @ 1920x1080 (WDR on)
    60 fps @ 1920x1080 (WDR off)

  • Maximum Streams

    3 video streams (Up to 8 configurable profiles)

  • S/N Ratio

    60 dB

  • Dynamic Range

    120 dB

  • Video Streaming

    Adjustable resolution, quality and constrained bit rate control, Smart Stream III

  • Image Settings

    General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings
    Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, HLM, 3DNR, EIS, scene mode (auto, deblur)
    Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
    Focus
    Privacy mask
    Scheduled profile settings
    Pixel calculator

  • Audio Capability

    Two-Way Audio (full duplex)

  • Compression

    MPEG-2 AAC-LC, G.711, G.726

  • Interface

    External line input
    External line output

Network

Jump to...
  • Users

    Live viewing for up to 10 clients

  • Security

    Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, Dos Protection, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), User access log, User account management

  • Protocols

    802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP

  • Interface

    10 Base-T/100 Base-TX Ethernet (RJ-45)

  • ONVIF

    Profile G, S, T, M supported

AI Analytics

Jump to...
  • Compute Capability

    SoC with built-in hardware deep learning accelerator

  • Vision Object Analytics

    Object Detection: People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Bestshot, Path Extraction
    Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)
    Human face Bestshot, Re-Search Extraction

  • Application

    Deep Learning VCA (Smart Tracking Advanced)
    Smart VCA - Group 1: Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, face detection)
    Smart VCA - Group 2: Unattended object detection, Missing object detection

  • Application available with license

    Smart VCA - Group 3: Parking Violation Detection, Restricted Zone Detection

Solution Integration

Jump to...
  • VADP Package

    Trend Micro IoT Security (3-year free trial)

Alarm and Event

Jump to...
  • Event Trigger

    Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, smart tracking advanced trigger, system boot, preset reached

  • Event Action

    Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card, push notification
    File upload via email, HTTP, FTP/SFTP, NAS server, SD card

System Requirements

Jump to...
  • Operating System

    Microsoft Windows 10/8/7
    Mac 10.12 (Chrome only)

  • Web Browser

    Chrome 58.0 or above

  • Other Players

    VLC: 1.1.11 or above

DORI (EN 62676-4 Standard)

Jump to...
  • Detection (25PPM/ 8PPF)

    Wide: 200.4' (61.1m)
    Tele: 7778.3' (2370m)

  • Observation (63PPM/ 19PPF)

    Wide: 80' (24.4m)
    Tele: 2802.1' (854.15m)

  • Recognition (125PPM/ 38PPF)

    Wide: 40' (12.2m)
    Tele: 1358.9' (414.2m)

  • Identification (250PPM/ 76PPF)

    Wide: 20' (6.1m)
    Tele: 683.5' (208.3m)

General

Jump to...
  • Color

    White

  • Connectors

    RJ-45 cable connector for 10/100Mbps Network/PoE connection
    Audio line input
    Audio line output
    DC 48V power input
    AC 24V power input
    2x Digital input
    1x Digital output
    1x RS-485

  • LED Indicator

    System power and status indicator

  • Power Input

    AC 24V, DC48V, IEEE 802.3 at PoE class 4 (Simultaneous Power Redundancy Supported)

  • Power Consumption

    PoE: Max: 22.5W/25.5W (Heater & Fan off/on)
    DC 48V: Max: 22.5W/25.5W (Heater & Fan off/on)
    AC 24V: Max: 22.5W/25.5W (Heater & Fan off/on)

  • Certifications

    EMC: CE (EN 55032 Class A, EN55035, EN50121-4), UKCA (BS EN 55032: 2015 +A11: 2020 , BS EN 55035: 2017), FCC (FCC Part 15 Subpart B Class A), IC (ICES-003:2020 Issue7, Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A)
    Safety: UKCA (BS EN 62368-1:2014+A11:2017), UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
    Environment: IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Type 4X)
    IA: BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1)

  • Operating Temperature

    Starting/Working Temperature: -40 Degree F - 131 Degree F (-40 Degree C - 55 Degree C)

  • Humidity

    98% RH (non-condensing)

  • Country of Origin

    Taiwan

  • Dimensions (Dia. x L)

    6.85 x 10.87" (174 x 276mm)

  • Weight

    9.92 lbs (4.5kg)

  • UPC Code

    4710469357145

About Vivotek V-Series SD9367-EHL

Stay Alert while Patrolling with AI
Smart Tracking Advanced combines autonomous patrolling with AI detection to deliver continuous full scene coverage. The camera instantly locks onto and tracks abnormal events until they leave the frame, ensuring faster response and enhancing overall security operations.

Exceptional Imaging Performance in Any Distance
This camera is powered by Sony Starvis II sensors, delivering clear imaging and intelligent tracking in any scenario. With 40x optical zoom, it enables users to capture both wide-area overviews and fine details from a distance. It also features WDR Pro, providing sharp, high-quality images that preserve accurate detail even in challenging high-contrast conditions.

Effortless and Flexible Deployment
This camera's compact, lightweight design makes it easier to install without drawing attention or taking up space. With less power consumption, it runs on standard PoE without requiring additional high-wattage equipment, cutting both hardware and labor costs. Built with industry-grade durability, it delivers reliable performance indoors, semi-outdoors-offering users a flexible and cost-efficient surveillance solution.

From Any Platform to Instant Insight
Easy integrate with any surveillance systems, whether manage cameras on-premises VMS - VAST Security Station(VSS) or on cloud platform-VORTEX, both provide a consistent user experience, including intuitive AI-powered search features and case management, users can quickly locate, consolidate, and manage footage. This reduces manpower and maintenance costs, and enables faster, more effective responses to incidents across any deployment scenario.

Vivotek V-Series SD9367-EHL Features

  • 40x Optical zoom with auto focus and EIS
  • Identify people, vehicle by Vision Object Analytics
  • AI-based Smart Tracking Advanced for moving people
  • WDR Pro for unparalleled visibility
  • Weather-proof IP66 & Vandal-proof IK10/NEMA 4X

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience crystal-clear 2MP video quality, ensuring every detail is captured for superior surveillance.
  • Benefit from advanced night vision, providing exceptional clarity and security even in complete darkness.
  • Stay informed with intelligent motion detection, instantly alerting you to any suspicious activity.
  • Enjoy effortless setup with easy installation features, getting your security camera ready in no time.
  • Access your camera remotely from anywhere, keeping an eye on your property with convenient remote access.
  • Securely store all your footage with versatile storage options, offering peace of mind and reliable backup.

What's in the box:

  • Vivotek V-Series SD9367-EHL 2MP AI Outdoor PTZ Dome Camera
  • T25 L-Wrench
  • Waterproof Round Cap
  • Terminal Blocks
  • Ground Wire
  • User Manual
  • Vivotek 3 Year Limited Warranty
