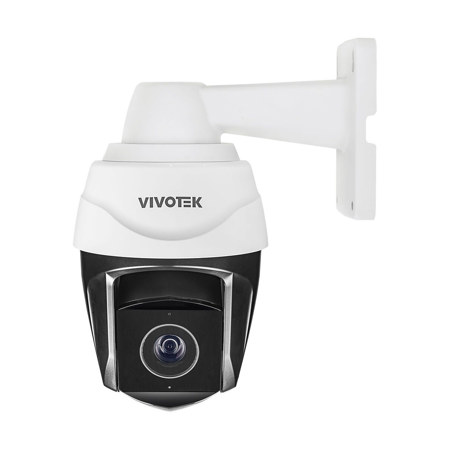

Vivotek V-Series SD9384-EHL 5MP AI Outdoor PTZ Dome Camera w/Night Vision, White
See all Vivotek items
25% Off

Vivotek V-Series SD9384-EHL 5MP AI Outdoor PTZ Dome Camera with Night Vision, White

SKU: VIVSD9384EHL MFR: SD9384-EHL
Be the first to review this itemAsk a Question
$2,386.50
$3,182.00
Save: $795.5 (25%)
OR
$199/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture every detail with stunning 5MP video quality, ensuring clear surveillance for your home or business.
  • Experience superior night vision capabilities, providing round-the-clock security even in complete darkness.
  • Benefit from advanced motion detection that intelligently identifies and alerts you to unusual activity.
  • Access your security cameras remotely from anywhere, keeping an eye on your property with ease and convenience.
  • Enjoy flexible storage options, including local SD card and network-attached storage, for reliable video archiving.
  • Install your security camera effortlessly with its user-friendly design, making setup a breeze for everyone.
See More Product Details
Temporarily On Backorder?Expected Availability: 04/2026Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Vivotek V-Series SD9384-EHL Specifications

System

System

Jump to...

  • CPU

    Multimedia SoC (System-on-Chip)

  • Flash

    8GB

  • RAM

    2GB

Camera

Jump to...

  • Image Sensor

    1/2.8" Progressive CMOS

  • Max. Resolution

    2560x1920 (5MP)

  • Lens Type

    30x Optical Zoom, Auto Focus

  • Focal Length

    4.94-148.24mm (30x zoom)

  • Aperture

    f/1.3-4.6

  • Iris Type

    DC-Iris

  • Field of View

    54.1 Degree - 1.9 Degree (Horizontal)
    41.2 Degree - 1.4 Degree (Vertical)
    65.7 Degree -2.4 Degree (Diagonal)

  • WDR Technology

    WDR Pro

  • Day/Night

    Yes

  • Removable IR-cut filter

    Yes

  • Minimum Illumination

    0.03 lux @ F1.3 (Color)
    0.005 lux @ F1.3 (B/W)
    0 lux with IR illumination on

  • Pan Speed

    0.05 Degree - 450 Degree /sec

  • Pan Range

    360 Degree endless

  • Tilt Speed

    0.05 Degree - 450 Degree /sec

  • Tilt Range

    -20 Degree - +90 Degree
    Effective tilt coverage 220 Degree via auto flip

  • Preset Location

    256 preset locations
    128 presets per tour

  • Pan/Tilt/Zoom Functionalities

    32x digital zoom (4x on IE plug-in, 8x built-in)
    Auto Pan mode
    Auto Patrol mode
    Mechanical Auto flip

  • Storage

    Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)

  • Built-in Installation Aids

    Remote focus, remote zoom

Video

Jump to...

  • Compression

    H265, H264, MJPEG

  • Maximum Frame Rate

    30 fps @ 2560x1920 (WDR Pro on)
    30 fps @ 2560x1440 (WDR Pro on)
    60 fps @ 1920x1080 (WDR Pro off)

  • Maximum Streams

    3 video streams (Up to 8 configurable profiles)

  • S/N Ratio

    74 dB

  • Dynamic Range

    120 dB

  • Video Streaming

    Adjustable resolution, quality and constrained bit rate control, Smart Stream III

  • Image Settings

    General settings: video settings, video orientation (flip, mirror), day/night settings
    Overlay settings
    Illuminators: illuminators, anti-overexposure

    Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, EIS (built-in gyro sensor), scene mode (auto)

  • Image Settings (Contd.)

    Exposure: exposure strategy (measurement window, metering mode)
    exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR

    Focus: zoom, focus

    Privacy mask
    Pixel calculator
    Scheduled profile settings

Audio

Jump to...

  • Audio Capability

    Two-Way Audio (full duplex)

  • Compression

    MPEG-2 AAC-LC, G.711, G.726

  • Interface

    External line input
    External line output

Network

Jump to...

  • Users

    Live viewing for up to 10 clients

  • Security

    Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), User access log, User account management

  • Protocols

    802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP

  • Interface

    10 Base-T/100 Base-TX Ethernet (RJ-45)

  • ONVIF

    Profile G, S, T supported

AI Analytics

Jump to...

  • Compute Capability

    SoC with built-in hardware deep learning accelerator

  • Vision Object Analytics

    Object Detection: People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Bestshot, Path Extraction
    Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)
    Human face Bestshot, Re-Search Extraction

  • Application

    Deep Learning VCA (Smart Tracking Advanced)
    Smart VCA - Group 1: Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, face detection)
    Smart VCA - Group 2: Unattended object detection, Missing object detection

  • Application available with license

    Smart VCA - Group 3: Parking Violation Detection, Restricted Zone Detection

Solution Integration

Jump to...

  • VADP Package

    Stratocast, Trend Micro IOT Security (3-year free trial)

Alarm and Event

Jump to...

  • Event Trigger

    Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, smart tracking advanced trigger, system boot, preset reached

  • Event Action

    Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card, push notification
    File upload via email, HTTP, FTP/SFTP, NAS server, SD card

System Requirements

Jump to...

  • Operating System

    Microsoft Windows 10/8/7
    Mac 10.12 (Chrome only)

  • Web Browser

    Chrome 58.0 or above
    Internet Explorer 10/11

  • Other Players

    VLC: 1.1.11 or above

DORI (EN 62676-4 Standard)

Jump to...

  • Detection (25PPM/ 8PPF)

    Wide: 341.5' (104.1m)
    Tele: 9743.4' (2969.8m)

  • Observation (63PPM/ 19PPF)

    Wide: 135.5' (41.3m)
    Tele: 3866.4' (1178.5m)

  • Recognition (125PPM/ 38PPF)

    Wide: 68.2' (20.8m)
    Tele: 1948.6' (594m)

  • Identification (250PPM/ 76PPF)

    Wide: 34.1' (10.4m)
    Tele: 974.3' (297m)

General

Jump to...

  • Color

    White

  • Connectors

    RJ-45 cable connector for 10/100Mbps Network/PoE connection
    Audio line input
    Audio line output
    DC 48V power input
    AC 24V power input
    2x Digital input
    1x Digital output
    1x RS-485

  • LED Indicator

    System power and status indicator

  • Power Input

    AC 24V, DC48V, IEEE 802.3 bt Class 6 PoE (Simultaneous Power Redundancy Supported)

  • Power Consumption

    PoE: Max: 51W/26W (IR on/off)
    DC 48V: Max: 51W/26W (IR on/off)
    AC 24V: Max: 51W/26W (IR on/off)
    IR ON: 51W/45W Heater and fan on/off
    IR OFF: 26/20W Heater and fan on/off

  • Certifications

    EMC: CE (EN 55032 Class A, EN55035, EN50121-4), UKCA (BS EN 55032: 2015 +A11: 2020 , BS EN 55035: 2017), FCC (FCC Part 15 Subpart B Class A), IC (ICES-003:2020 Issue7, Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A)
    Safety: UKCA (BS EN 62368-1:2014+A11:2017), UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
    Environment: IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Type 4X
    IA: BIS (IS 13252), BSMI

  • Operating Temperature

    Starting Temperature: -40 Degree F - 131 Degree F (-40 Degree C - 55 Degree C)
    Working Temperature: -40 Degree F - 140 Degree F (-40 Degree C - 60 Degree C) (IR on)

  • Humidity

    98% RH (non-condensing)

  • Country of Origin

    Taiwan

  • Dimensions (Dia. x L)

    10.08 x 13.23" (256 x 336mm)

  • Weight

    15.65 lbs (7.1kg)

Other

Jump to...

  • UPC Code

    4710469352614

About Vivotek V-Series SD9384-EHL

Smart Tracking Advanced
Smart Tracking Advanced is designed to enhance the performance of tracking objects via PTZ cameras. Smart Tracking Advanced covers four types of Video Content Analysis - intrusion detection, line crossing detection, loitering detection and face detection. Through user-defined rules, a person demonstrating suspicious behavior would trigger preset alarms. Automatic tracking of the person of interest, optimizing the recording video quality, and notifying security personnel all activate simultaneously.

Lightning-fast Search Speed
Deep Search fully utilizes the data captured by Vision Object Analytics to bring precise and immediate search results. Experience the power of Deep Search in VIVOTEK's network video recording, VAST Security Station, and VORTEX VSaaS.

Vivotek V-Series SD9384-EHL Features

  • 30x Optical Zoom with Auto Focus and EIS
  • Built-in 200M IR with Smart IR Technology
  • Weather-proof IP66 & Vandal-proof IK10/NEMA 4X
  • -40 Degree C - 60 Degree C Wide Temperature Range
  • Smart Tracking Advanced for Moving People & Vehicles

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture every detail with stunning 5MP video quality, ensuring clear surveillance for your home or business.
  • Experience superior night vision capabilities, providing round-the-clock security even in complete darkness.
  • Benefit from advanced motion detection that intelligently identifies and alerts you to unusual activity.
  • Access your security cameras remotely from anywhere, keeping an eye on your property with ease and convenience.
  • Enjoy flexible storage options, including local SD card and network-attached storage, for reliable video archiving.
  • Install your security camera effortlessly with its user-friendly design, making setup a breeze for everyone.

What's in the box:

  • Vivotek V-Series SD9384-EHL 5MP AI Outdoor PTZ Dome Camera
  • Wall Mount Bracket
  • Screw Set
  • Screws and Anchors
  • T10 and T25 L-Wrench
  • Waterproof Round Cap
  • Terminal Blocks
  • Ground Wire
  • User Manual
  • Vivotek 3 Year Limited Warranty
