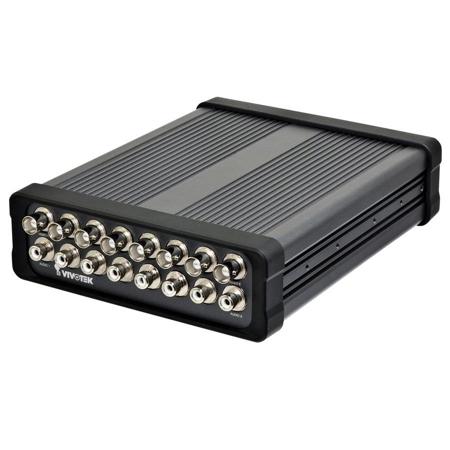

Vivotek VS8801 8-CH Video Server, PTZ Camera Control, Supports Two-Way Audio, Rack Mount Design, H.264, MPEG-4 & MJPEG
SKU: VIVVS8801
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Q&A
About Vivotek VS8801
VIVOTEK VS8801/8401, the new milestone in video server security performing 8-CH/4-CH high resolution with high frame rate in H.264, are able to convert analog video into digital video with the highest quality. The H.264 compression format drastically reduces the file sizes and conserves valuable bandwidth and storage space. The VS8401 supports simultaneous dual streams, while the VS8801 supports single stream to be transmitted in H.264, MPEG-4 and MJPEG formats for versatile applications.
The stream can also be individually configured with frame rates, resolution and image quality so as to meet different platforms or bandwidth constraints. Featured with intelligent video functions, such as motion detection & temper detection, the VS8801/8401 are capable of upgrading analog cameras into intelligent cameras. The tamper detection feature can detect events such as blockage, redirection, defocus and spray-painting of camera lens, making it an intelligent solution to possible camera obstruction. Furthermore, the video server also upgrades the security level of the IP surveillance system with the network security protocols, HTTPS and 802.1x.
It is also designed with Giga LAN for large transmission need and DC 12V/AC 24V compatible power input design. These features make VS8801/8401 easy to install and integrate with the existing analog system. Monitoring with VIVOTEK's ST7501 as the video management software for better scalability and easy-to-use operation is another delightful benefit. Most importantly, it is designed for rack mount solution for easy installation. The solution for video server is a pioneering idea in the world. The innovative vision of video server, VS8801/8401, help you easily upgrade to a full-featured, high-end IP surveillance solution!
Vivotek VS8801 Features
- Up to 30 fps in D1 Resolution
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- 8-CH Video and Audio In
- Two-way Audio
- RS-485 Interface for PTZ Camera Control
- 8 Digital I/O for External Sensor and Alarm
- Built-in SD/SDHC Card Slot for On-board Storage
- DC 12V/AC 24V Compatible Power Input
- Professional Rack Mount Design
- Supports Gigabit Ethernet Data Transmission
