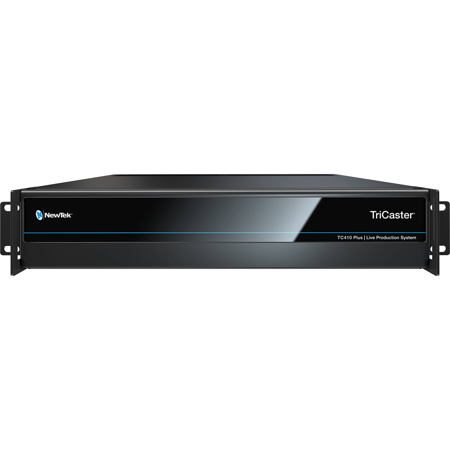

Vizrt TriCaster TC410 Plus Live Video Production System, 2RU Chassis
See all Vizrt items

Vizrt TriCaster TC410 Plus Live Video Production System, 2RU Chassis

SKU: VZFG3308R001 MFR: FG-003308-R001
Be the first to review this itemAsk a Question
$9,995.00
OR
$833/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 8 video inputs for dynamic live production, enhancing your broadcast quality.
  • Experience ultra-low latency with NDI IP video inputs, perfect for real-time event streaming and presentations.
  • Simplify your workflow with a user-friendly interface, making complex multimedia mixing accessible to all.
  • Record up to 8 channels simultaneously, ensuring you capture every moment in high-resolution detail.
  • Integrate up to 8 PTZ cameras for flexible remote control, ideal for diverse production environments.
  • Produce professional-grade content with integrated virtual sets and chroma keying for stunning visuals.
See More Product Details
Temporarily On Backorder?Expected Availability: 07/2026Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Save 5% Every Day† with the Adorama Edge Card. Learn More

edge card

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Vizrt TriCaster TC410 Specifications

  • Video Input

    8x Simultaneous external video inputs, supporting any combination of compatible sources in resolutions up to 1080 up to 60fps

  • Network Video Input

    8x IP video inputs via NDI, resolution-independent, with support for key and fill

  • SDI Video Input

    4x HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates
    1080p: 59.94, 50, 29.97, 25
    1080i: 59.94, 50
    720p: 59.94, 50, 29.97, 25
    576i: 25
    480i: 59.94
    Available frame rates determined by session video standard (NTSC or PAL)

  • PTZ

    Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422 and IP, with integrated controls and preset system

  • Skype TX

    Native support for 1 Skype video call input via Skype TX software integration, including tally and Talk Back communication

  • Video Output

    Configurable for 2x pairs of independent video mix outputs, with simultaneous delivery via IP and SDI

  • Network Video Output

    IP Video output via NDI optionally configurable for: 2x pairs independent video mix outputs

  • SDI Video Output

    4x 3G/HD/SD-SDI connections, optionally configurable for: 2x pairs independent 3G/HD/SD video mix outputs

  • Stream Output

    2x resolution-independent streaming video output, independently configurable, with simultaneous stream archive

  • Multiview Output

    3x Multiview outputs supporting standard display resolutions
    1x DisplayPort (v1.4a)
    2x HDMI (HDMI v2.1)

  • Mix/Effect Buses (M/E)

    4x M/E buses supporting video re-entry
    1x Mix/Effect channel per bus with support for up to 4 sources
    4x M/E Busses with 2 Key Layers
    9x memory slots per bus
    1x PREVIZ configuration and preview bus

  • DSK Channels

    2x DSK channels

  • Media

    5x media players
    2x DDR
    2x GFX
    1x Sound
    15x media buffers
    10x animation buffers
    5x graphic buffers
    30x clip players (available for use as transitions or media depending on function)

  • Keyers

    Integrated Live Matte chroma and luma keying technology on all source channels and M/E buses
    8x input keyers
    4x media player keyers
    4x M/E keyers
    1x PREVIZ keyer
    15x buffer keyers

  • COMPs

    Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences
    16x configurable COMP presets per bus

  • Virtual Sets

    Integrated Live Set technology with 30+ live virtual sets and box effects included

  • DataLink

    Integrated DataLink technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more

  • Macros

    Record, store, edit, and automate commands and user-configured operation sequences
    Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI, and X-keys buttons or GPI triggers
    Attach to internal events and state changes, including audio, media playback, tally, and specific switcher actions
    Supports control via web-based interface

  • Recording

    8x configurable video recording channels via IsoCorder technology
    8 NDI source recording
    4x QuickTime archival video recorders (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio, with timecode)
    2x H.264 distribution video recorders (multiple profiles)
    1x MP3 audio recorder
    QuickTime Player not required for playback in common NLE applications

  • Storage

    1x 2TB internal drive
    Capacity varies by format, resolution, and file specification
    Supports recording to external storage via USB 3.0
    Supports shared storage integration and third-party partner solutions

  • Grab

    Grab full-resolution, deinterlaced still images from external video sources and outputs

  • Export

    Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding

  • Audio Mixer

    Integrated multi-channel audio mixer with support for quad-channel audio, DSPs, 4 x 4 x 4 audio input channel routing

  • Local Audio Input

    4x SDI embedded
    1x Balanced XLR stereo pair (Line)
    3x Balanced 1/4" stereo pairs Line)

  • Local Audio Output

    4x SDI embedded
    1x Balanced XLR stereo pair
    1x Balanced 1/4" stereo pair
    1x Stereo 1/4" (phones)

  • Network Audio

    Network Audio
    Native support for network audio input and output via NDI
    Embedded audio supported for all NDI input and output video signals
    Integrated support for Dante networking protocol from Audinate
    Support for AES67 protocol via compatible WDM audio drivers
    Requires Dante Virtual Soundcard license from Audinate (sold separately)
    Requires third-party virtual sound card license (sold separately)

  • Supported Media File Formats

    Import, store, and play back multimedia files, with optional transcoding, including:
    Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
    Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
    Audio: AIFF, MP3, WAV, and more

  • Monitoring

    Support for up to 3 Multiview displays with configurable workspaces and viewports

  • Signal Monitoring

    Integrated waveform and vector scope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709

  • Processing

    Video: Floating Point YCbCr + Alpha Color Space, using 4:2:2:4
    Audio: Floating Point, 96 kHz

  • Latency

    Processing Latency: 1.0-1.5 frames
    Practical Throughput Latency: 4 frames

  • A/V Standards

    3G-SDI video conforms to SMPTE 424M (Level A)
    HD-SDI video conforms to SMPTE 292M
    SD video conforms to SMPTE 259M and ITU-R BT.656
    Analog audio levels conform to SMPTE RP-155

  • Tally

    Support for hardware tally via HD15 GPI connector, network tally via NDI, and Blackmagic Design SDI tally standard

  • Genlock

    Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals

  • GPI

    Supports GPI signals via JLCooper Electronics eBox GPI interface

  • MIDI

    Support for standard MIDI protocol enabling third-party device control

  • System Drive

    250GB SSD

  • NIC

    1x 10 Gigabit LAN
    1x 2.5 Gigabit LAN
    1x 1 Gigabit LAN

  • Rackmount

    2RU chassis with 500W PSU and multi-tiered hardware and software fail-safe

  • Dimensions

    19 x 3.5 x 19.57" (48.3 x 8.9 x 49.7cm) (with rack ears attached)

  • Weight

    26 lbs (12kg)

About Vizrt TriCaster TC410

TriCaster TC410 Plus is an integrated video production system designed to create multi-platform productions live and on-demand. Your shows will be polished, engaging to viewers through social and second-screen experiences, deliver revenue opportunities, and extend your brand.

The Vizrt Advantage

Multi-source Video Mixing
With 27 source channels, including 8 external inputs, you can easily create compelling content using any combination of compatible video sources, including 3G-SDI, HD-SDI and PTZ cameras, mobile devices, Skype TX video calls, computers, gaming systems, streaming media, video files, graphics, images, animations and more.

Built-in Video Servers
No recorders needed-just add your files with two built-in video servers for on-demand and automated playback, including auto-advancing playlists, on-cue instant replay, live-edited highlight reels, and much more. With responsive player controls, presets, real-time editing tools, selectable transitions, and playlist effects.

Live Streaming
Stream live to your choice of media platforms, including user-friendly presets for Facebook, Twitch, YouTube, and more. With two streaming encoders included, you can easily deliver platform-specific content, while opening up new sponsorship and revenue opportunities.

Ready for Tomorrow's Production Needs, Today

Remote Contribution
Incredible native Zoom and Microsoft Teams integration makes bringing in remote guests from anywhere in the world, a breeze with Enhanced workflow capabilities, Video quality improvements, Per Caller Audio and Simpler Setup.

Social Media Integration
Share real-time updates and on-demand content across social media, uploading images and video directly to Facebook, LinkedIn, Twitter, Vimeo, YouTube and more-complete with comments and hashtags. Plus, with integrated DataLink, you can add posts and photos from your social networks in on-screen graphics for a truly interactive experience.

Monitoring & Multiviewers
See everything happening during your production with fully adjustable single-screen or multi-screen monitoring. With three customizable Multiviewers, configurable windows and workspace layouts, operator confidence monitors, visual indicators, scopes, and more, you can easily personalize the TriCaster TC410 Plus environment to your preference.

Interconnected Workflow
With native integration of NDI, TriCaster TC410 Plus connects to the most prolific IP-based workflow in the industry right out of the box, networking seamlessly with compatible products from hundreds of manufacturers and developers, including Vizrt's connectivity solutions-the Viz Connect Studio I/O Module and more.

Vizrt TriCaster TC410 Features

  • Mix 27 video sources including SDI, PTZ cameras, and streaming media
  • Built-in video servers with instant replay and playlist automation
  • Dual streaming encoders for Facebook, Twitch, YouTube, and more
  • Native Zoom and Microsoft Teams integration for remote guests
  • Customizable multiview monitoring with configurable workspace layouts

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Seamlessly switch between 8 video inputs for dynamic live production, enhancing your broadcast quality.
  • Experience ultra-low latency with NDI IP video inputs, perfect for real-time event streaming and presentations.
  • Simplify your workflow with a user-friendly interface, making complex multimedia mixing accessible to all.
  • Record up to 8 channels simultaneously, ensuring you capture every moment in high-resolution detail.
  • Integrate up to 8 PTZ cameras for flexible remote control, ideal for diverse production environments.
  • Produce professional-grade content with integrated virtual sets and chroma keying for stunning visuals.

What's in the box:

  • Vizrt TriCaster TC410 Plus Live Video Production System
  • Power Cable
  • Rack Ears
  • Mouse
  • Keyboard
  • Vizrt 1 Year Limited Warranty
