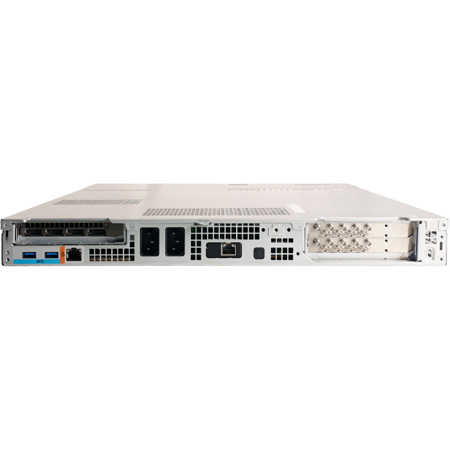

Vizrt TriCaster Vizion Live Video Production System, 1RU Chassis

44x simultaneous external video inputs, supporting any combination of compatible sources in resolutions up to UHD at frame rates up to 60fps (2160p 59.94)

44x IP inputs via NDI, resolution-independent, with support for key and fill

12G/3G/HD SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates
2160p 59.94, 50, 29.97, 25
1080p: 60, 59.94, 50, 30, 29.97, 25
1080i: 59.94, 50
720p: 59.94, 29.97, 25

Configurable for up to 8 independent HD or 2 UHD video mix outputs, with simultaneous delivery via IP and SDI

56x IP outputs via NDI (HD sessions only)
8x video mix outputs in resolutions up to 1080p at frame rates up to 60fps or 2x UHD video mix outputs at up to 60 frames per second (2160p 59.94)
Up to 16x direct IP source outputs via NDI translation of local SDI inputs
4x direct IP source outputs via NDI translation of media players, with support for embedded alpha channel

15x direct IP source outputs via NDI translation of media buffers, with support for embedded alpha channel
3x Multiviewer outputs (if 3 monitors are connected). 4K support on 2x Multiviewer outputs while the 3rd outputs in HD
1x User Interface with dedicated multiviewer
1x teleprompter output (LiveStory Creator)
8x selectable IP outputs via internal NDI matrix router

12G/3G/HD SDI connections, optionally configurable for: 8x independent 12G/3G/HD video mix outputs supporting standard NTSC and PAL formats, resolutions, and frame rates3

44 channel integrated audio mixer with support for 8-channel audio, DSPs and 4x8x8 audio input routing SSD

Up to 16x SDI embedded

Up to 8x SDI Embedded

Native support for network audio input and output via NDI
Embedded audio supported for all NDI input and output video signals
Integrated support for Dante networking protocol from Audinate
Support for AES67 protocol via compatible WDM audio drivers

5x media players:
4x DDR
1x Sound

15x media buffers:
10x animation buffers with GIF support
5x graphic buffers

Integrated LiveMatte chroma and luma keying technology on all source channels and M/E buses
44x input keyers
4x media player keyers
8x M/E keyers
1x PREVIZ keyer
15x buffer keyers

Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences
16x configurable COMP presets per bus

Integrated LiveSet technology with 30+ live virtual sets and box effects included

Integrated DataLink technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more

Record, store, edit and automate commands and user-configured operation sequences
Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys buttons or GPI triggers
Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions
Supports control via web-based interface

8x configurable M/E channels
Up to 16x physical SDI inputs
4 x DDR's
3x streaming encoders
Support for growing file playback from DDR's
Instant Replay capability on each input
44x total configurable inputs

4 TB SSD internal storage
Supports recording to external storage via 7 USB 3.2 type A, and 1 USB 3.2 type C, 1 USB 2.0 2(Gen2, Type A)
Supports shared storage integration and third-party partner solutions

Support for up to 44 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422 and IP, with integrated controls and preset system

Support for multiple simultaneous video call inputs with Microsoft Skype, Microsoft Teams, Zoom Meetings, Slack, Discord, and Tencent software integration using the Live Call Connect feature

Grab full resolution, deinterlaced still images from external video sources and outputs

Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding

Import, store, and play back multimedia files, with optional transcoding, including:
Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
Audio: AIFF, MP3, WAV, and more

Support for up to 4 multiviewer displays with configurable workspaces and viewports. 4 outputs are via Display port connection

Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709

Video: YCbCr + Alpha color space, using 4:2:2:4
Audio: Floating Point, 96 kHz

Practical Throughput Latency: 6-8 frames

12G-SDI video conforms to SMPTE ST 2082
3G-SDI video conforms to SMPTE 424M (Level A)
HD-SDI video conforms to SMPTE 292M

Network tally via NDI, and Blackmagic Design SDI tally standard

Genlock input per I/O board supporting SD (Bi-level) or HD (Tri-level) reference signals

Supports GPI signals via JLCooper Electronics eBox GPI interface

Support for standard MIDI protocol enabling third-party device control

500GB SSD

1x 10 GbE
1x 1 Gigabit NIC

1RU chassis with redundant 675W PSU

Temperature Range:
Operating: 40 to 80 Degree F (5 to 27 Degree C)
Non-Operating: -40 to 140 Degree F (-40 to 60 Degree C)

Humidity Range:
Operating: 8% to 85% relative humidity, non-condensing, 35 Degree C maximum wet bulb
Non-operating: 8% to 90% relative humidity, non-condensing, 35 Degree C maximum wet bulb

4 Users
5GB Asset Library
1 Output
1 Team

Graphics Editor:
Timeline-based Animations
Text Crawler
Assets Library
Custom Fonts
140 ready-to-use free graphics

Data Integrations:
Google Sheets Data Provider
RSS / Atom Data Provider
JSON REST Connector
JSON WebSocket Connector
Data Bridge

Security - MFA
Control API
24/7 Live Chat & Knowledge Base Support
Viewer Engagement - X (Twitter) & Instagram Search
Viz Flowics runs in cloud, rendered locally via TriCaster Live Link

China

25.7 x 17.2 x 1.7" (65.28 x 43.69 x 4.32cm)

26.7 lbs (12.1kg)
