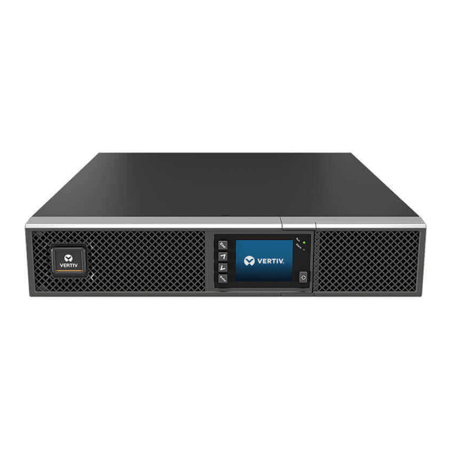

VERTIV Liebert GXT5 120V Online Sinewave Rack/Tower UPS with RDU101 Card 1000VA/1000W

SKU: VLGXT510002X MFR: GXT5-1000LVRT2UXLN
Earn VIP Reward Points

Key Features

  • Keep critical devices online with sinewave UPS backup power during outages.
  • Safeguard your sensitive electronics with reliable surge protection.
  • Get extended battery life for your equipment with this UPS power supply.
  • Monitor & manage your UPS remotely via the IntelliSlot RDU101 communication card.
  • Enjoy fast switching to battery power, preventing data loss and downtime.
  • This compact size UPS fits seamlessly into rack or tower configurations.
See More Product Details

Product Options

Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$139.00

2 Year

$229.00

3 Year

$349.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

VERTIV Liebert GXT5 120V Online Sinewave Rack/Tower UPS with RDU101 Card Specifications

GXT5: General

GXT5: General

Jump to...
  • Available Capacities

    1000VA/1000W, 1500VA/1350W, 2000VA/1800W, 3000VA/2700W

GXT5: Input AC

Jump to...
  • Range

    Typical: 120V
    Range: 60-150V

  • Frequency

    40-70Hz; Auto Sensing

  • Input Power Cord

    1000VA: 10' (3.04m) attached w/ NEMA 5-15P plug
    1500VA: 10' (3.04m) attached w/ NEMA 5-15P A plug
    2000VA: NEMA L5-20P or 5-20P plug (5-20P adapter included)
    3000VA: 10' (3.04m) attached w/ NEMA L5-30P plug

GXT5: Output AC

Jump to...
  • Output Receptacles

    1000VA and 1500VA: 6x 5-15R
    2000VA: 6x L5-20R+5-20R
    3000VA: 6x L5-30R+5-20R

  • Typical 120V User selectable output

    1000VA: 110/115/120/125VAC (user-configurable); +/-3%
    1500VA, 2000VA and 3000VA: 110/115/120VAC (user-configurable); +/-3%

  • Waveform

    Sine wave

  • Utility (AC) Mode Overload

    1000VA:
    >200% for 250ms;
    150-200% for 50 seconds;
    125-150% for 60 seconds;
    105-125% for 60 seconds

    1500VA:
    >200% for 250ms;
    150-200% for 2 seconds;
    125-150% for 50 seconds;
    105-125% for 60 seconds

    2000VA:
    >200% for 250ms;
    150-200% for 2 seconds;
    125-150% for 50 seconds;
    105-125% for 60 seconds

  • Utility (AC) Mode Overload (Contd.)

    3000VA:
    >200% for 250ms;
    150-200% for 2 seconds;
    125-150% for 10 seconds;
    105-125% for 15 seconds

GXT5: Environmental Requirements

Jump to...
  • Operating Temperature

    +32 Degree F to +104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    4 Degree F to +140 Degree F (-20 Degree C to 60 Degree C)
    Contain batteries will be from 5 Degree F to 104 Degree F (-15 Degree C to 40 Degree C)

  • Relative Humidity

    0% to 95%, Non-condensing

  • Operating Elevation

    10000' (3000m)

  • Storage Elevation

    50000' (15000m)

  • Audible Noise

    1000VA: <46dBA max @ 3' (1m) front and sides < 43dBA, at 3' (1m) rear
    1500VA: <46dBA at 3' (1m) front and side < 45dBA at 3' (1m) rear
    2000VA and 3000VA: <48dBA max @ 3' (1m) front and side <48dBA max @ 3' (1m) rear

GXT5: Certifications

Jump to...
  • Surge Immunity

    ANSI C62.41 Category B

  • Transportation

    ISTA Procedure 1A

  • Safety

    UL 1778 4th Edition and CSA 22.2 No 107.3

  • Emissions

    FCC Part 15 (Class A) - CISPR22 Class A (RFI)

  • Environmental

    WEEE and ROHS2 REACH

GXT5: Battery

Jump to...
  • Type

    Valve-regulated, non-spillable, lead acid

  • Backup Time

    1000VA:
    100% Load: 6.7
    50% Load: 17.9

    1500VA:
    100% Load: 6.7
    50% Load: 18.8

    2000VA:
    100% Load: 4
    50% Load: 12.3

    3000VA:
    100% Load: 4
    50% Load: 12.3

  • +1 External Battery Cabinet

    1000VA:
    100% Load: 32.6
    50% Load: 76.5

    1500VA:
    100% Load: 32.4
    50% Load: 79.7

    2000VA:
    100% Load: 22
    50% Load: 53.6

    3000VA:
    100% Load: 22.2
    50% Load: 54.6

  • Battery Info

    Required, included

  • Battery Material

    Lead acid

  • Battery Type

    Non-universal

  • Battery Quantity

    1

GXT5: Physical

Jump to...
  • Dimensions (W x D X H)

    1000VA: 16.9 x 15.7 x 3.4" (430 x 400 x 85mm)
    1500VA and 2000VA: 16.9 x 18.5 x 3.4" (430 x 470 x 85mm)
    3000VA: 16.9 x 21.3 x 3.4" (430 x 540 x 85mm)

  • Weight

    1000VA: 37 lbs (16.8kg)
    1500VA: 46.2 lbs (21kg)
    2000VA: 47.5 lbs (21.6kg)
    3000VA: 66 lbs (30kg)

RDU101 Communications Card

Jump to...
  • Power Requirements

    DC Input: 7 to 12 VDC
    Power Consumption: 3.6 W maximum

  • Ambient Operating Environment

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C), 10% to 90% RH (Non-condensing)

  • Ambient Storage Temperature

    -4 Degree F to 140 Degree F (-20 Degree C to 60 Degree C)

  • Communication Ports

    Ethernet Communication
    RJ-45

  • Wiring

    10/100 Mb/s Ethernet Connector: 328' (100m) Standard Category 5E Cable
    RJ-45 - One-Wire Connector: 65.6' (20m) Liebert Integrated One-Wire Sensor Cable or 2m Cat 5E to Modular 1-Wire

  • Dimensions (W x D x H)

    2.97 x 5.2 x 1.45" (75.5 x 15 x 37mm)

  • Weight

    7 oz (198.44g)

  • UPC Code

    767041029185

Models
VERTIV Liebert GXT5 120V Online Sinewave Rack/Tower UPS with RDU101 Card
$1,327.35

$2,106.90

Save:$779.55 (37%)

Ships from Manufacturer

4 Styles Available

Usually ships within 1-2 Days

CyberPower PR3000LCDSL 3000 VA/2700W Smart App Sinewave Mini-Tower UPS
$1,292.95

Ships from Manufacturer

Usually ships within 1-2 Days

CyberPower Smart App Online OL1500RTXL2U 1500VA / 1350W Pure Sine Wave UPS
$1,265.95

Ships from Manufacturer

Usually ships within 1-2 Days

TypeUninteruptible Power SupplyBackup Power BatteryUninteruptible Power Supply
Cable Length10'10'10'
Joules-1030-
Rack Units2U-2U

About VERTIV Liebert GXT5 120V Online Sinewave Rack/Tower UPS with RDU101 Card

- GXT5 120V Online Rack/Tower UPS -

Intelligent and Efficient UPS for Protection of Your Mission-Critical Applications

The Vertiv Liebert GXT5 UPS is an online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible rack/tower form factor.

Scalable runtime options with matching external battery cabinets offer additional flexibility when extended uninterrupted power is required. Plus, the Liebert GXT5 provides battery health status and replacement date prediction for intelligent battery health management.

The UPS system is easy to deploy and maintain due to its user-friendly LCD interface and remote management capabilities supported by the Vertiv RDU101 communications card which makes the Liebert GXT5 compatible with Vertiv infrastructure management solutions such as LIFE Services, environmental sensors, Vertiv Power Insight, and more.

With market leading efficiency and unity power factor operation, the Liebert GXT5 will meet your critical application needs.

Leading UPS Technology
• High output power factor = up to 1.0
• Full-color graphic LCD with gravity sensing orientation
• Individually controllable output power sockets
• External battery cabinets with auto-detection
• Battery health status and replacement date prediction
• Remote management, update, and configuration capabilities
• Optimized thermal management and variable speed fan

Efficient and Green Product
• High efficiency in online mode
• Energy Star 2.0 certified
• Even higher efficiency (up to 98%) in Active ECO mode
• Programmable outlets for power cycling hung equipment and optimum battery usage
• Compliance with Restriction of Hazardous Substances (RoHS) directive and the Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) regulation

Solutions Wide
• Compact rack/tower design
• Easy to install, configure and operate
• Vertiv RDU101 network communications card with advanced features
• Compatibility with environmental sensors
• Integrated dry-contacts with selectable definition
• Free Vertiv Power Insight management software
• Serial port for out-of-band management with Avocent serial consoles
• Automatic internal bypass and external maintenance bypass options

High power factor (0.9-1.0)
More usable power enables more connected loads saving space and costs.

Efficiency (up to 95%) in online mode
Energy Star Certified High energy efficiency saves on energy costs and reduces heat dissipation from the UPS.

Efficiency (up to 98%) in Active ECO mode
Superior protection with maximum efficiency.

Colored graphic LCD with gravity sensitive orientation
User-friendly interface provides insight to UPS status for easy installation, configuration and operation.

Compact rack/tower design
Space-saving UPS provides rack space optimization and flexible installation.

Battery cabinets with auto-detection
Be confident the UPS is set up correctly to report available runtime when used with external battery cabinets.


- RDU101 Communications Card -
The Liebert Intellislot RDU101 card enables communication between Vertiv products such as Trellis Enterprise, Trellis Power Insight and LIFE Services. It provides web access, data via SNMP and Modbus TCP for Vertiv equipment. Environmental sensor data access is provided via web and SNMP

How It Works
The RDU101 employs Ethernet networks to monitor and manage a wide range of operating parameters, alarms and notifications.

Solving Problems
Managing disparate systems within the data center can be challenging. With responsibilities to know the conditions of your facility at all times, keeping track of all that data may require accessing multiple systems or even performing manual, time consuming data tracking. Being able to collect data from your systems is key to effectively managing the data center. The RDU101 provides remote centralized monitoring connectivity to building management systems (BMS) that use SNMP.

Adding Value
Not only does the RDU101 improve efficiency by providing a one-to-one view of the connected system, it also provides a convenient way to configure and update devices via HTTP APIs. Save time on initial deployments and improve ongoing maintenance through the mass configuration capabilities of the RDU101.

Keep Data Secure
The RDU101 keeps data secure. Basic security is provided via HTTPS web connectivity and SNMP v3. Centralized access and authorization management provides an additional layer of security via remote authentication protocols - RADIUS, TACACS+, LDAP/AD and Kerberos.

Features
• Provides web access to the installed devices via popular web browsers-Microsoft Internet Explorer, Mozilla Firefox, Google Chrome and Safari
• Provides alarm notifications via email and text messaging
• Supports environmental monitoring via Liebert SN Sensors for temperature, humidity, leak detection, doors and contact closures
• Supports third-party protocols for building and network management applications for status and alarms via SNMP and Modbus TCP
• Enables Vertiv software tools and services, including Trellis Enterprise, Trellis Power Insight and LIFE Services
• Supports high-speed file transfer to managed devices for firmware and configuration updates
• HTTPS messages and web access encryption with installable customer provided certificates
• Options for SNMP v3 authentication support (none, MD5 or SHA), privacy support (none, DES or AES) and Traps

VERTIV Liebert GXT5 120V Online Sinewave Rack/Tower UPS with RDU101 Card Features

  • GXT5 120V Online Rack/Tower UPS
  • Online double conversion topology with pure sinewave output and zero transfer time
  • User-replaceable, hot-swappable internal and external batteries
  • Intellislot network management card options
  • Individual programmable outlets
  • Free Power Assist, Power Insight software
  • IntelliSlot RDU101 Communication Card
  • Quick, real-time view of parametric data and system statuses
  • Prompt alarm notification for fast event resolution
  • Know environmental conditions of your data center for informed, efficient decision making
  • Flexible communication regardless of device protocol
  • Peace of mind knowing data is transported in a secure manner
  • Save time configuring and updating firmware on managed devices

Key Features

  • Keep critical devices online with sinewave UPS backup power during outages.
  • Safeguard your sensitive electronics with reliable surge protection.
  • Get extended battery life for your equipment with this UPS power supply.
  • Monitor & manage your UPS remotely via the IntelliSlot RDU101 communication card.
  • Enjoy fast switching to battery power, preventing data loss and downtime.
  • This compact size UPS fits seamlessly into rack or tower configurations.

What's in the box:

  • VERTIV Liebert GXT5 120V Online Sinewave Rack/Tower UPS
  • IntelliSlot RDU101 Communication Card
  • Tower Stand
  • 4-Post Rack Mounting Set
  • USB Cable
  • User Manual
  • VERTIV Liebert 3 Year Limited Warranty
