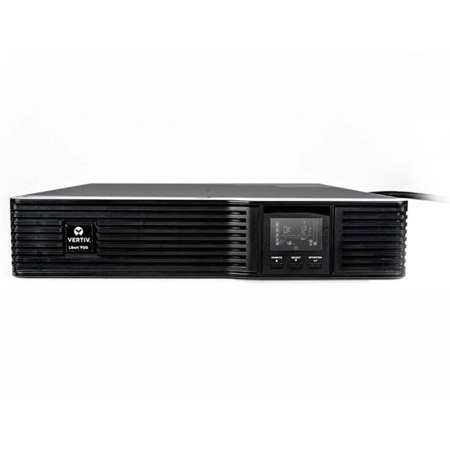

VERTIV Liebert PSI5 Sinewave Rack/Tower UPS with IS-UNITY-SNMP Card 1920VA/1920W

SKU: VLPSI522RT1N MFR: PSI5-2200RT120N
Earn VIP Reward Points

Key Features

  • Keep critical devices running with this VERTIV UPS backup, even during power outages.
  • Pure sinewave output provides reliable power for sensitive electronics; safeguard your data.
  • Customize power management via the IS-UNITY-SNMP card for seamless network integration.
  • Get long-lasting power with a lead-acid battery, recharging to 90% in just 4 hours.
  • Enjoy peace of mind with 1372 Joules surge protection, defending against voltage spikes.
  • Compact 2U rack/tower design fits seamlessly into your setup, saving valuable space.
See More Product Details

Product Options

Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$149.00

2 Year

$249.00

3 Year

$379.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

VERTIV Liebert PSI5 Sinewave Rack/Tower UPS with IS-UNITY-SNMP Card Specifications

General

General

Jump to...
  • Available Capacities

    800VA/720W, 1100VA/990W, 1500VA/1350W, 1920VA/1920W, 2880VA/2700W

Input/Output AC

Jump to...
  • Nominal Voltage Setting

    800VA: 100
    1100VA: 110
    1500VA: 115
    1920VA: 120 (Default)
    2880VA: 125

  • Voltage Range Without Battery Operation

    75 to 146 VAC

  • Frequency Range

    55-65Hz (57-63Hz Battery to Normal comeback)

  • Surge Protection

    1372J

  • Input Power Cord, 10' (3m) Attached

    800VA, 1100VA and 1500VA: NEMA 5-15
    1920VA: NEMA L5-20 std 5-20 adapter included
    2880VA: NEMA L5-30P

  • Output Receptacles - Not Controllable

    800VA, 1100VA and 1500VA: 3x NEMA 5-15R
    1920VA: 3x NEMA 5-15/20R, 1x NEMA L5-20R
    2880VA: 3x NEMA 5-15/20R, 1x NEMA L5-30R

  • Output Receptacles - Controllable

    800VA, 1100VA and 1500VA: 3x NEMA 5-15R
    1920VA and 2880VA: 3x NEMA 5-20R

  • Transfer Time

    4-6 ms Typical

  • Battery Waveform

    Pure Sinewave

Environmental

Jump to...
  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    5 Degree F to 120 Degree F (-15 Degree C to 50 Degree C)

  • Relative Humidity

    20% - 90%, non-condensing

  • Operating Altitude

    0 to 9,942' (0 to 3,000m) without derating. Operating temperature reduced 9 Degree F (5 Degree C) for each additional 1,640' (500m) of altitude.

  • Audible Noise

    800VA and 1100VA: < 45 dB
    1500VA, 1920VA and 2880VA: < 45 dB@line mode, < 55 dB@battery mode

Certifications

Jump to...
  • Safety

    UL 1778, c-UL-us Listed

  • Emissions

    FCC Part 15, Class B

  • Network Surge

    UL 497 B

  • Transportation

    ISTA Procedure 1A Certification

Battery

Jump to...
  • Battery

    Valve-regulated lead-acid (VRLA) in compliance with UL 1989

  • Recharge Time

    4 hours to recover 90%

  • Internal Battery Run Time

    800VA:
    Full Load: 5.5 min
    Half Load: 16 min

    1100VA:
    Full Load: 4.5 min
    Half Load: 13.5 min

    1500VA:
    Full Load: 6 min
    Half Load: 18 min

    1920VA:
    Full Load: 5 min
    Half Load: 14 min

    2880VA:
    Full Load: 5.5 min
    Half Load: 16 min

  • Battery Info

    Required, included

  • Battery Material

    Lead acid

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Dimensions (W x D x H)

    800VA and 1100VA: 17.2 x 16.1 x 3.5" (438 x 410 x 88mm)
    1500VA: 17.2 x 20 x 3.5" (438 x 510 x 88mm)
    1920VA and 2880VA: 17.2 x 24.8 x 3.5" (438 x 630 x 88mm)

  • Weight

    800VA: 28.4 lbs (12.9kg)
    1100VA: 29.5 lbs (13.4kg)
    1500VA: 42.6 lbs (19.3kg)
    1920VA: 59.1 lbs (26.8kg)
    2880VA: 70.8 lbs (32.1kg)

  • UPC Code

    767041028898

Models
VERTIV Liebert PSI5 Sinewave Rack/Tower UPS with IS-UNITY-SNMP Card
$744.66

$1,182.00

Save:$437.34 (37%)

In Stock

5 Styles Available

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

VERTIV Liebert PSI5-1000RM1201U 1000VA/900W Sinewave 1U Rackmount UPS
$700.56

$1,112.00

Save:$411.44 (37%)

Ships from Manufacturer

Usually ships within 1-2 Days

Apple 3.2' Thunderbolt 4 USB-C Pro Cable, Black
$159.00

Ships from Manufacturer

Usually ships within 1-2 Days

TypeUninteruptible Power SupplyUninteruptible Power Supply-
Cable Length9.8 ft (2.98m)9.8 ft (2.98m)9.8 ft (2.98m)
Watts-900-
Connector Type--USB C Thunderbolt 4
Joules13721372-
Rack Units2U1U-

About VERTIV Liebert PSI5 Sinewave Rack/Tower UPS with IS-UNITY-SNMP Card

Liebert PSI5 is a compact, Automatic Voltage Regulation (AVR) line-interactive UPS system designed especially for IT applications such as network closets and small data centers.

The Liebert PSI5 UPS supports advanced pure sine wave output on battery to safeguard critical IT equipment and business electronics. It also provides reliable power protection for servers, critical nodes, network workstations, large network peripherals, network routers, bridges, and other electronic equipment. With 3 different form-factors available, the Liebert PSI5 has been designed to ensure power continuity for a wide array of applications

Ideally suited for:
• Servers
• Network Closets
• Safety and Security systems
• Network Workstations
• Large Network Peripherals
• Storage
• VolP
• Media Closet Equipment
• POS Systems

2U Rack/Tower
• Convertible rack/tower design with rotatable LCD display provides flexible installation options
• Extended runtime capability with external battery cabinets for hours of back-up time
• Vertiv Liebert Intellislot SNMP/ Webcards available for remote power management, and environmental sensor support

Reliable UPS protection to keep your network up and running
The Liebert PSI5 UPS features an innovative advanced line-interactive design incorporating buck/boost Automatic Voltage Regulation (AVR) technology.

This protects against utility voltage fluctuation by raising and lowering utility power to the level needed by the connected equipment. It also allows the UPS to prolong battery life by maximizing its time on utility power before going to battery.

With high efficiency and 0.9 power factor operation, the Liebert PSI5 will meet your critical application needs. You can rest assured that your business is protected with this Vertiv solution.

High Availability

0.9 Output Power Factor
More usable power enables more connected loads saving space and costs

Wider Input Voltage Window
Prolongs battery life by allowing the UPS to maximize the use of utility power before transferring to battery when input exceeds specified limits (76 to 146 VAC @120V)

Full Sequenced Battery Testing
The Liebert PSI5 UPS includes an automatic and manual self-diagnostic test feature. This provides a comprehensive analysis of the condition of the batteries within the UPS and will notify you when the internal batteries need to be replaced.

Advance Early Warning of UPS System Status
The Liebert PSI5 UPS offers multiple audible and visual alarms to immediately alert you to an input voltage fluctuation (buck/boost), output overload, low battery or replace battery condition.

Flexibility

Up to Seven Battery-Backed Outlets
Allows the Liebert PSI5 to be more flexible in accommodating additional equipment to be connected to the UPS via the receptacles

Configurable Input Voltage Window
Allows the UPS to be properly matched to the incoming utility power and adjusts its input window and transfer points to supply regulated power to connected loads within the selected range.

Programmable Outlet Group
Power cycle connected equipment and load shed on battery to extend run time.

Manageability

USB Communications
Power management functions provide monitoring of UPS status and manage the automatic orderly shutdown of the computer if a power outage ever exceeds the battery capacity of the UPS. Trellis Power Insight Shutdown Software is available at Vertiv.com

SNMP Communication Option
Add an optional Liebert IntelliSlot IS-UNITY communications card to enable SNMP and web-based management for the Liebert PSI5 UPS. The Liebert IntelliSlot UNITY communication cards provide network integration connectivity and allow you to monitor and control your UPS from your network management station or any PC.

• Sends both SNMP traps and emails for event notification
• Auto-senses 10M/100M Ethernet
• Compatible with shutdown software to ensure graceful computer shutdown
• Allows remote monitoring, start-up or restart for connected equipment
• Select models include factory integrated network management card

Remote Emergency Power Of
Allows the UPS to be remotely shut down during an emergency.

Optional Liebert MicroPod Output Distribution and Maintenance Bypass Module
When your computer system can't be without power, even for scheduled UPS maintenance, the Liebert MicroPod ensures continuous uptime. It allows you to manually transfer connected equipment to utility power permitting scheduled service or UPS replacement without the need to shut down connected equipment.

Features include:
• 2U height minimizes rack space requirements
• Installs with plug-and-play ease

VERTIV Liebert PSI5 Sinewave Rack/Tower UPS with IS-UNITY-SNMP Card Features

  • 0.9 Output Power Factor
  • Wider Input Voltage Window
  • Full Sequenced Battery Testing
  • Advance Early Warning of UPS System Status
  • Up to Seven Battery-Backed Outlets
  • Configurable Input Voltage Window
  • Programmable Outlet Group
  • USB Communications

Key Features

  • Keep critical devices running with this VERTIV UPS backup, even during power outages.
  • Pure sinewave output provides reliable power for sensitive electronics; safeguard your data.
  • Customize power management via the IS-UNITY-SNMP card for seamless network integration.
  • Get long-lasting power with a lead-acid battery, recharging to 90% in just 4 hours.
  • Enjoy peace of mind with 1372 Joules surge protection, defending against voltage spikes.
  • Compact 2U rack/tower design fits seamlessly into your setup, saving valuable space.

What's in the box:

  • VERTIV Liebert PSI5 Sinewave Rack/Tower UPS
  • Communication Card (IS-UNITY-SNMP)
  • 6' USB Type-A to USB Type-B Cable
  • Adjustable 4-Post Rack Mounting Set
  • Support Base for Tower Configuration
  • User Manual
  • VERTIV Liebert 2 Year Limited Warranty
