Vocas USBP-15 MkII Adjustable Baseplate Sliding System for Sony PXW-FS7 & FS7 II Cameras
SKU: VO03502207
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
About Vocas Baseplate System
FEATURED REVIEWS
Best product in in class!
Absolutely fantastic unit, well designed, well crafted. It allows operator to easily re-balance camera when swapping lenses--whether on tripod or shoulder. The sliding plate allows for EXCELLENT balance of FS7/FX9 when using larger ENG lenses for handheld--allows operator to center the weight over one's shoulder where it belongs, and not all out in front bearing down on your arms all day.

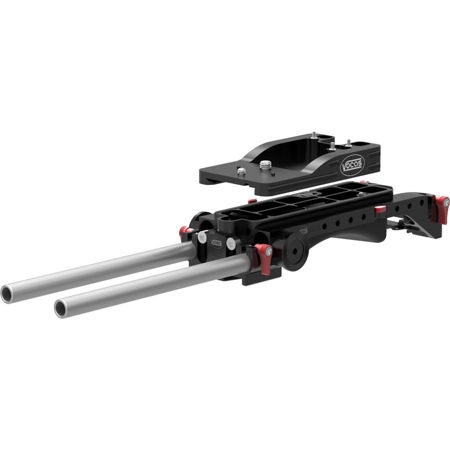

15mm Universal shoulder base plate to convert the Sony PXW-FS7 / FS7 II into a shoulder mounted camera. The USBP-15 MKII is a height adjustable shoulder base plate with a unique quick release balancing system to find optimal balance and stability with all kind of different lenses in combination with the Sony PXW-FS7 / FS7 II. The USBP-15 MK II is part of the Vocas Sliding system, a revolutionary new way to mount cameras to different setups, while balancing the camera optimally.
The heart of this system is the Sony PXW-FS7 / FS7 II dovetail adapter plate (0350-2255). The plate is shaped to the ergonomics of the PXW-FS7 / FS7 II and has five attachment points to the underside of the camera, providing extra stability between the camera and the adapter plate. This allows the camera to slide on and off the various Vocas products that are bases on this mini dovetail system, like the USBP-15 MKII (0350-2200), USBP-19 MKII (0350-2205), BP-19 MKII (0480-0019) and Quick release dovetail plate (0350-2220).
All of these products are equipped with a quick release lever, making it possible to find optimal balance for your set-up within seconds, without using any tools. A real benefit when changing lenses a lot. Furthermore, it's easy to switch between 15mm setups, 19mm setups, drones, gimbals or any other conceivable setup that incorporates the quick release dovetail plate (0350-2220).The height adjustable front rails of the USBP-15 MKII provide compatibility with almost any camera! Both sides of the plate are equipped with standard rosettes to mount handgrips or other standard rosette accessories.
The bottom of the plate is equipped with magnets, to mount a variety of shoulder pads to multiple positions underneath the base plate. The USBP-15 MKII attaches directly to VCT-14 style quick release plates. A Toolless VCT-14 rear adjustment prevents the quick release plate from having play. Fixed rear bars offer the possibility to mount any 15mm rail accessory to the back of the camera, for instance a battery, recorder or monitor.
