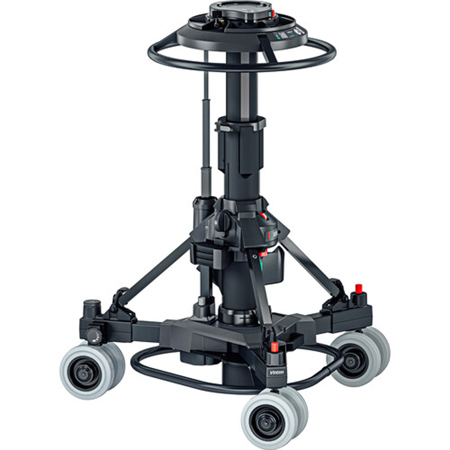

Vinten Osprey Plus S 2-Stage OB Steering Pedestal

SKU: VO41712 MFR: V4171-0002
Earn VIP Reward Points

Key Features

  • Achieve smooth, professional camera moves with this Vinten Osprey Plus S pedestal.
  • Supports up to 154 lbs, making it ideal for studio cameras and broadcast equipment.
  • Enjoy precise height adjustments from 2.28 to 4.94' with the two-stage column design.
  • Easily switch between crab and steer modes for versatile studio floor navigation.
  • Integrated pump and column drag ensure stable and controlled camera operation.
  • Durable construction and smooth steering make this pedestal a reliable broadcast asset.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Vinten Osprey Plus S Specifications

  • Range

    Osprey

  • Payload

    154 lbs (70kg)

  • Stages

    2

  • Perfect Balance Stages

    1

  • On shot stroke

    15.99" (410mm)

  • Height

    2.28 to 4.94' (0.70 to 1.51m)

  • Steering

    Crab/Steer

  • Head fitting

    Flat base

  • GroundClearance

    1.35" (34.50mm)

  • Tracking Width

    36.66" (940mm)

  • Transit Width

    31.20" (800mm)

  • Integrated Pump

    Yes

  • Column Drag

    Yes

  • Track Dolly option available

    Yes

  • Crab and Steer Modes

    Yes

  • Cable Guards

    Wheel truck mounted, individually adjusted

  • Trim Weights

    7.71 lbs (3.5kg)

  • Wheel Diameter

    6.24" (160mm)

  • Base

    Open

  • Wheel Locks

    Single-point

  • Narrow Transit Width

    27.30" (700mm)

  • Steering Ring Diameter

    20.87" (535mm)

  • Weight

    100.76 lbs (45.80kg)

  • UPC Code

    5060896402550

About Vinten Osprey Plus S

Just imagine the creative possibilities with the Osprey Plus S 2-Stage OB Steering Pedestal, a fully steerable version of the acclaimed Osprey Plus. This high-performance piece of equipment is designed to handle payloads up to a robust 70kg or 155lb, making it a versatile choice for a wide range of professional broadcasting and filming needs.

The Osprey Plus S OB Pedestal stands out with its two-stage design, allowing for the capture of both high and low shots with ease. The upper stage is meticulously balanced to ensure smooth on-shot tracking of subjects, enhancing the quality of your footage.

Equipped with an integral manual pump and an inlet valve for use with an external supply, achieving Perfect Balance is a breeze. This feature ensures that your camera remains steady, even when capturing dynamic shots.

The Osprey Plus S OB Pedestal also boasts a convenient storage area for the camera operator, ensuring essential equipment is always within reach. A clear and reliable pressure gauge is included, facilitating a straightforward setup process.

One of the standout features of this pedestal is its detachable skid. This allows the pedestal to be easily broken down into two sections, simplifying storage and transportation. This is a significant advantage for professionals who need to move their equipment between locations frequently.

The pedestal features a selector for both single wheel and all-wheel crab steering, providing flexibility when working in tight spaces or when on-shot direction changes are required. It comes equipped with 16cm / 6.3-inch wheels, offering greater ground clearance for outside broadcast applications.

In summary, the Osprey Plus S 2-Stage OB Steering Pedestal is a versatile, user-friendly solution for professionals seeking to capture high-quality footage in a variety of settings.

Vinten Osprey Plus S Features

  • Upper stage perfect balance for on-shot performance
  • Balance assisted second stage for easy elevation and extended height range
  • Full crab and steer facilities controlled from a central steering ring for enhanced manoeuvrability and on-shot steering
  • Built in pressure gauge and manual pump for easy counter balance set-up
  • Detachable skid for easy transport and storage
  • Wheel rim braking mechanism eliminates tyre flat spots for super smooth rolling shots
  • Pedestal supplied with Quickfix quick release system & operator storage area
  • Column can be adapted to work on dolly track

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve smooth, professional camera moves with this Vinten Osprey Plus S pedestal.
  • Supports up to 154 lbs, making it ideal for studio cameras and broadcast equipment.
  • Enjoy precise height adjustments from 2.28 to 4.94' with the two-stage column design.
  • Easily switch between crab and steer modes for versatile studio floor navigation.
  • Integrated pump and column drag ensure stable and controlled camera operation.
  • Durable construction and smooth steering make this pedestal a reliable broadcast asset.

What's in the box:

  • Vinten Osprey Plus S (OB) Pedestal
  • Quickfix
  • Accessory Holder
  • Manual Pump
  • Kick Ring
  • User Manual
  • Vinten 1 Year Limited Warranty
