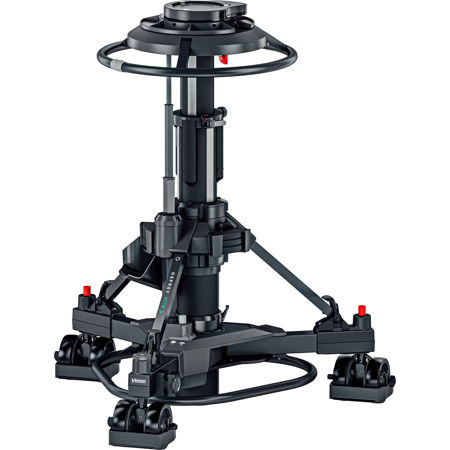

Vinten Osprey Elite S 2-Stage Steering Pedestal

SKU: VO41721 MFR: V4172-0001
Earn VIP Reward Points

Key Features

  • Achieve smooth, professional shots with this Vinten Osprey Elite S steering pedestal.
  • Supports up to 176 lbs, ideal for studio cameras needing a stable camera stand.
  • Enjoy precise height adjustments from 2.16 to 4.69' with the 2-stage pedestal.
  • Switch between crab and steer modes for versatile movement with this video pedestal.
  • Durable design ensures long-lasting performance, making it a reliable camera support.
  • Easily maneuver through tight spaces with a narrow transit width of just 28.47".
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Vinten Osprey Elite S Specifications

  • Range

    Osprey

  • Payload

    176 lbs (80kg)

  • Stages

    2

  • Perfect Balance Stages

    2

  • On shot stroke

    30.03" (770mm)

  • Height

    2.16 to 4.69' (0.66 to 1.43m)

  • Steering

    Crab/Steer

  • Head fitting

    Flat base

  • GroundClearance

    0.78" (20mm)

  • Tracking Width

    37.83" (970mm)

  • Transit Width

    31.20" (800mm)

  • Integrated Pump

    No

  • Column Drag

    Yes

  • Track Dolly option available

    Yes

  • Crab and Steer Modes

    Yes

  • Cable Guards

    Wheel truck mounted, individually adjusted

  • Trim Weights

    7.71 lbs (3.5kg)

  • Wheel Diameter

    4.88" (125mm)

  • Base

    Open

  • Wheel Locks

    Single-point

  • Narrow Transit Width

    28.47" (730mm)

  • Steering Ring Diameter

    20.87" (535mm)

  • Weight

    102.30 lbs (46.50kg)

  • UPC Code

    5060896402567

About Vinten Osprey Elite S

It's the Osprey Elite S 2-Stage Steering Pedestal, a portable, fully operational studio pedestal designed to support large payloads up to 80kg or 177lb. This versatile pedestal is engineered to accommodate a wide array of equipment, including large Vinten Vector Heads, the latest digital cameras, and teleprompters, whether portable or full facility.

The Osprey Elite S pedestal is uniquely designed to track talent eyelines seamlessly from a seated to standing position 'on shot' due to its extended fully balanced range. This feature ensures smooth, uninterrupted shots, enhancing the quality of your production.

Equipped with an inlet valve compatible with any air source, the Osprey Elite S pedestal makes achieving Perfect Balance a breeze. This feature ensures stability and precision, even when handling heavy equipment.

The pedestal also includes a convenient storage area for the camera operator, keeping essential tools within arm's reach. The Osprey Elite S pedestal is designed with a pressure gauge, providing clear and reliable setup information to ensure optimal performance.

For ease of storage and transportation, the pedestal features a detachable skid, allowing it to be broken down into two sections. This design makes it an ideal choice for on-the-go productions and space-conscious studios.

The Osprey Elite S 2-Stage Steering Pedestal also boasts a selector for both single wheel and all-wheel crab steering, making it perfect for working in tight spaces and facilitating on-shot direction changes.

Completing the package are 12.5cm / 5-inch wheels and adjustable cable guards, making this pedestal a perfect fit for studio use. With the Osprey Elite S 2-Stage Steering Pedestal, you get a blend of functionality, versatility, and convenience, all designed to enhance your production quality.

Vinten Osprey Elite S Features

  • Full, 2-stage balance range for total 'on shot' elevation, perfect for moving from seated to standing talent in game shows, entertainment shows, drama and performances
  • Full crab and steer facilities controlled from a central steering ring for enhanced manoeuvrability and on-shot steering
  • Built in pressure gauge for easy counter balance set-up
  • Detachable skid for easy transport and storage
  • Wheel rim braking mechanism eliminates tyre flat spots for super smooth rolling shots
  • Pedestal supplied with Quickfix quick release system & operator storage area
  • Column can be adapted to work on dolly track

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve smooth, professional shots with this Vinten Osprey Elite S steering pedestal.
  • Supports up to 176 lbs, ideal for studio cameras needing a stable camera stand.
  • Enjoy precise height adjustments from 2.16 to 4.69' with the 2-stage pedestal.
  • Switch between crab and steer modes for versatile movement with this video pedestal.
  • Durable design ensures long-lasting performance, making it a reliable camera support.
  • Easily maneuver through tight spaces with a narrow transit width of just 28.47".

What's in the box:

  • Vinten Osprey Elite S Pedestal
  • Quickfix
  • Accessory Holder
  • Manual Pump
  • Kick Ring
  • User Manual
  • Vinten 1 Year Limited Warranty
