Vinten Osprey Elite S 2-Stage OB Steering Pedestal

SKU: VO41722 MFR: V4172-0002
Earn VIP Reward Points

Key Features

  • Achieve smooth, professional camera movements with this Vinten Osprey Elite S pedestal.
  • Supports up to 176 lbs, making it ideal for various professional video camera setups.
  • Enjoy precise height adjustments from 2.25 to 4.77' with the 2-stage camera pedestal.
  • Easily maneuver with crab and steer modes, perfect for dynamic studio environments.
  • The Vinten pedestal's durable build ensures stability and reliability for critical shots.
  • Compact transit width of 27.3" allows for easy transport of your camera support system.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Vinten Osprey Elite S Specifications

  • Range

    Osprey

  • Payload

    176 lbs (80kg)

  • Stages

    2

  • Perfect Balance Stages

    2

  • On shot stroke

    30.03" (770mm)

  • Height

    2.25 to 4.77' (0.69 to 1.46m)

  • Steering

    Crab/Steer

  • Head fitting

    Flat base

  • GroundClearance

    1.35" (34.50mm)

  • Tracking Width

    36.66" (940mm)

  • Transit Width

    31.20" (800mm)

  • Integrated Pump

    No

  • Column Drag

    Yes

  • Track Dolly option available

    Yes

  • Crab and Steer Modes

    Yes

  • Cable Guards

    Wheel truck mounted, individually adjusted

  • Trim Weights

    7.71 lbs (3.5kg)

  • Wheel Diameter

    6.24" (160mm)

  • Base

    Open

  • Wheel Locks

    Single-point

  • Narrow Transit Width

    27.30" (700mm)

  • Steering Ring Diameter

    20.87" (535mm)

  • Weight

    111.10 lbs (50.50kg)

  • UPC Code

    5060896402574

About Vinten Osprey Elite S

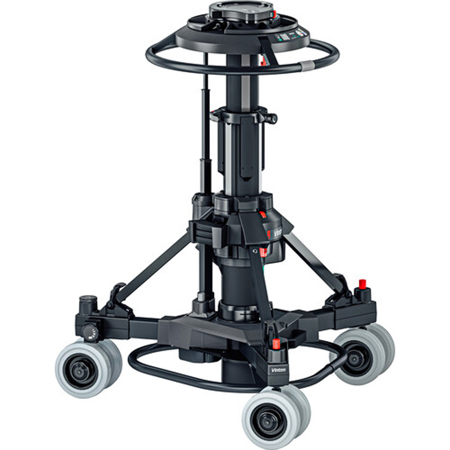

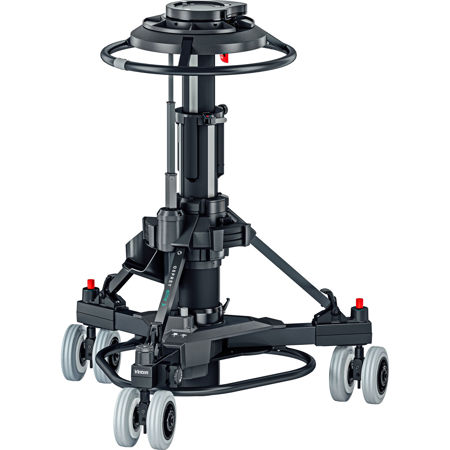

It's the Osprey Elite S 2-Stage OB Steering Pedestal, a portable and fully operational studio pedestal designed to handle large payloads up to 80kg or 177lb. This versatile pedestal is engineered to support a wide array of equipment, from large Vinten Vector Heads to the latest range of portable or full-facility digital cameras and teleprompters.

The Osprey Elite S pedestal stands out with its ability to smoothly track talent eyelines from a seated to standing position 'on shot', thanks to its extended fully balanced range. It features an inlet valve compatible with any air source, facilitating the achievement of Perfect Balance with ease.

For the convenience of the camera operator, the pedestal includes a dedicated storage area. The Osprey Elite S also boasts a pressure gauge, providing clear and reliable setup information. Its detachable skid design allows the pedestal to be easily broken down into two sections, simplifying storage and transportation.

Equipped with a selector for both single wheel and all wheel crab steering, this pedestal is ideal for working in tight spaces and facilitating on shot direction changes. It comes fitted with 16cm or 6.3-inch wheels, offering greater ground clearance for outside broadcast applications.

In summary, the Osprey Elite S 2-Stage OB Steering Pedestal is a robust, versatile, and portable solution for your studio and outdoor broadcasting needs.

Vinten Osprey Elite S Features

  • Full, 2-stage balance range for total 'on shot' elevation, perfect for moving from seated to standing talent in game shows, entertainment shows, drama and performances
  • Full crab and steer facilities controlled from a central steering ring for enhanced manoeuvrability and on-shot steering
  • Built in pressure gauge for easy counter balance set-up
  • Detachable skid for easy transport and storage
  • Wheel rim braking mechanism eliminates tyre flat spots for super smooth rolling shots
  • Pedestal supplied with Quickfix quick release system & operator storage area
  • Column can be adapted to work on dolly track

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve smooth, professional camera movements with this Vinten Osprey Elite S pedestal.
  • Supports up to 176 lbs, making it ideal for various professional video camera setups.
  • Enjoy precise height adjustments from 2.25 to 4.77' with the 2-stage camera pedestal.
  • Easily maneuver with crab and steer modes, perfect for dynamic studio environments.
  • The Vinten pedestal's durable build ensures stability and reliability for critical shots.
  • Compact transit width of 27.3" allows for easy transport of your camera support system.

What's in the box:

  • Vinten Osprey Elite S (OB) Pedestal
  • Quickfix
  • Accessory Holder
  • Manual Pump
  • Kick Ring
  • User Manual
  • Vinten 1 Year Limited Warranty
