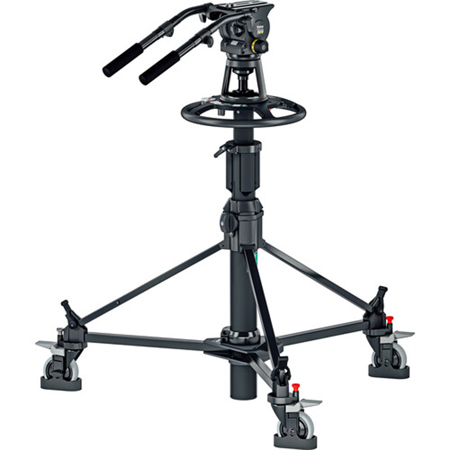

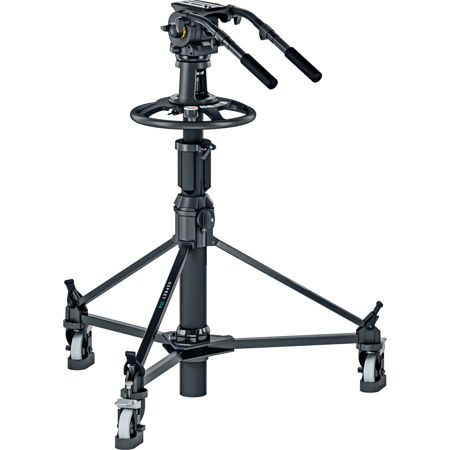

Vinten Vision 100 Fluid Head with Osprey Lite Pedestal System

SKU: VOB100OL MFR: VB100-OL
Earn VIP Reward Points

Key Features

  • Achieve smooth, professional shots with the Vinten fluid head & Osprey Lite pedestal.
  • Capture broadcast-quality video with this stable camera stand for studios & events.
  • Enjoy precise control with the Vision 100's adjustable pan and tilt fluid head system.
  • Easily adjust your camera's position with the pedestal's 15.99" on-shot stroke.
  • Supports 15.4 to 44 lbs, making it perfect for various cameras in newsgathering.
  • Durable Vinten pedestal ensures stability, supporting up to 77 lbs for heavy setups.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Vinten Vision 100 System Specifications

General

General

Jump to...
  • Range

    Osprey

  • Application

    Broadcast Studios, Events, Coporate, Houses of Worship

  • Fluid Head

    Vision 100

  • Pan bar count

    2

  • Payload

    15.40 to 44 lbs (7 to 20kg)

  • Temperature range

    -40 to 140 Degree F (-40 to 60 Degree C)

  • Weight

    37.40 lbs (17kg)

Pan and Tilt Head

Jump to...
  • Range

    Vision

  • Application

    Sports, Outside Broadcast, Newsgathering, Documentaries, Studio, Live

  • CameraPlateFixing

    Two-way Sliding Plate

  • Pan bar type

    Telescopic

  • Pan bar count

    1

  • Level bubble

    True

  • Level bubble illuminated

    Yes

  • Adapter viewfinder extension

    No Adapter

  • Bowl size

    3.93" (100mm)

  • Tilt range

    +/-90 Degree

  • Pan range

    360 Degree

  • Counterbalance

    Perfect Balance infinitely adjustable spring balance with readout

  • Drag

    TF Drag System with backlit and calibrated control

  • Payload

    15.40 to 44 lbs (7 to 20kg)

  • Battery

    9V, PP3 battery

  • Battery Info

    Required, included

  • Battery Material

    Lithium

  • Battery Type

    9-Volt

  • Battery Quantity

    1

  • Dimensions (H x L x W)

    5.9 x 5.8 x 6.9" (150 x 148 x 175mm)

  • Weight

    7.04 lbs (3.20kg)

Pedestal

Jump to...
  • Range

    Osprey

  • Payload

    77 lbs (35kg)

  • Stages

    2

  • Perfect Balance Stages

    1

  • On shot stroke

    15.99" (410mm)

  • Steering

    Castor

  • Head fitting

    Flat base

  • GroundClearance

    0.55" (14mm)

  • TrackingWidth

    26.91" (690mm)

  • Transit Width

    28.59" (733mm)

  • Integrated Pump

    Yes

  • Cable Guards

    Wheel truck mounted, individually adjusted

  • Wheel Diameter

    3.90" (100mm)

  • Base

    Open

  • Wheel Locks

    Individual

  • Steering Ring Diameter

    14.82" (380mm)

  • Height

    2.10 to 4.89' (0.64 to 1.49m)

  • Weight

    29.26" (13.30kg)

Bowl Adaptor

Jump to...
  • Range

    Vision

  • Weight

    17.50 oz (500g)

Pan Bar

Jump to...
  • Range

    Vision

  • UPC Code

    5060896402604

About Vinten Vision 100 System

- Osprey Lite Pedestal -

Portable and Lightweight 2-Stage pedestal with perfectly balanced stage for 'on shot' movement in studios. Payload up to 35kg / 77lb.
The Osprey lite is a lightweight, compact pedestal. It has 2 stages for acheiving very high and low shots, and the upper stage is perfectly balanced for on shot tracking of talent. It has an integral manual pump and an inlet valve for use with an external supply, making Perfect Balance easy to achieve. In addition, the Osprey lite pedestal includes a pressure gauge for clear and reliable set-up and the detachable skid allows the pedestal to be simply broken down into two sections for easy storage and transportation. The Osprey Lite pedestal comes with track locks and adjustable cable guards for studio use.


- Vision 100 Pan and Tilt Head -

Premium quality and performance for OB/ENG applications
Combining Perfect Balance with the TF drag system, the Vision 100 allows total control and consistent performance in the toughest conditions. Illuminated drag controls and a digital counterbalance readout ensure simple and repeatable camera set-up in any lighting situation.


- 100mm Levelling Bowl Adapter -

Install a 100mm Vinten pan and tilt head on a four-hole base
The 100mm Levelling Bowl Adaptor allows a pan and tilt head with a 100mm ball base to be installed on a standard Vinten four-hole base. It may also be secured using a 'Quickfix' adaptor.


- Vision Telescopic Pan Bar -
Telescoping pan bar to suit the Vision 8AS/10AS/100/250 heads.

Vinten Vision 100 System Features

  • Vision 100 Pan and Tilt Head Features
  • Digital balance readout for quick repeatable set-ups
  • Instant responsiveness from Perfect Balance
  • Thin Film drag (TF) for outstanding whip pan in any condition
  • High contrast amber LED levelling bubble for quick, precise set-up
  • Extensive operating temperature from -40 Degree C to +60 Degree C
  • Osprey Lite Pedestal Features
  • Detachable skid for easy transport and storage
  • Built in pressure gauge and manual pump for easy set-up
  • Perfect balance & adjustable second stage for wide operating range
  • Lightweight and compact
  • Column can be adapted to work on dolly track

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve smooth, professional shots with the Vinten fluid head & Osprey Lite pedestal.
  • Capture broadcast-quality video with this stable camera stand for studios & events.
  • Enjoy precise control with the Vision 100's adjustable pan and tilt fluid head system.
  • Easily adjust your camera's position with the pedestal's 15.99" on-shot stroke.
  • Supports 15.4 to 44 lbs, making it perfect for various cameras in newsgathering.
  • Durable Vinten pedestal ensures stability, supporting up to 77 lbs for heavy setups.

What's in the box:

  • Osprey Lite Pedestal (V4169-0001)
  • Vision 100 Pan and Tilt Head (3466-3)
  • 3.93" Levelling Bowl Adapter (3330-16)
  • Vision Telescopic Pan Bar (3219-91)
  • Vinten 1 Year Limited Warranty
